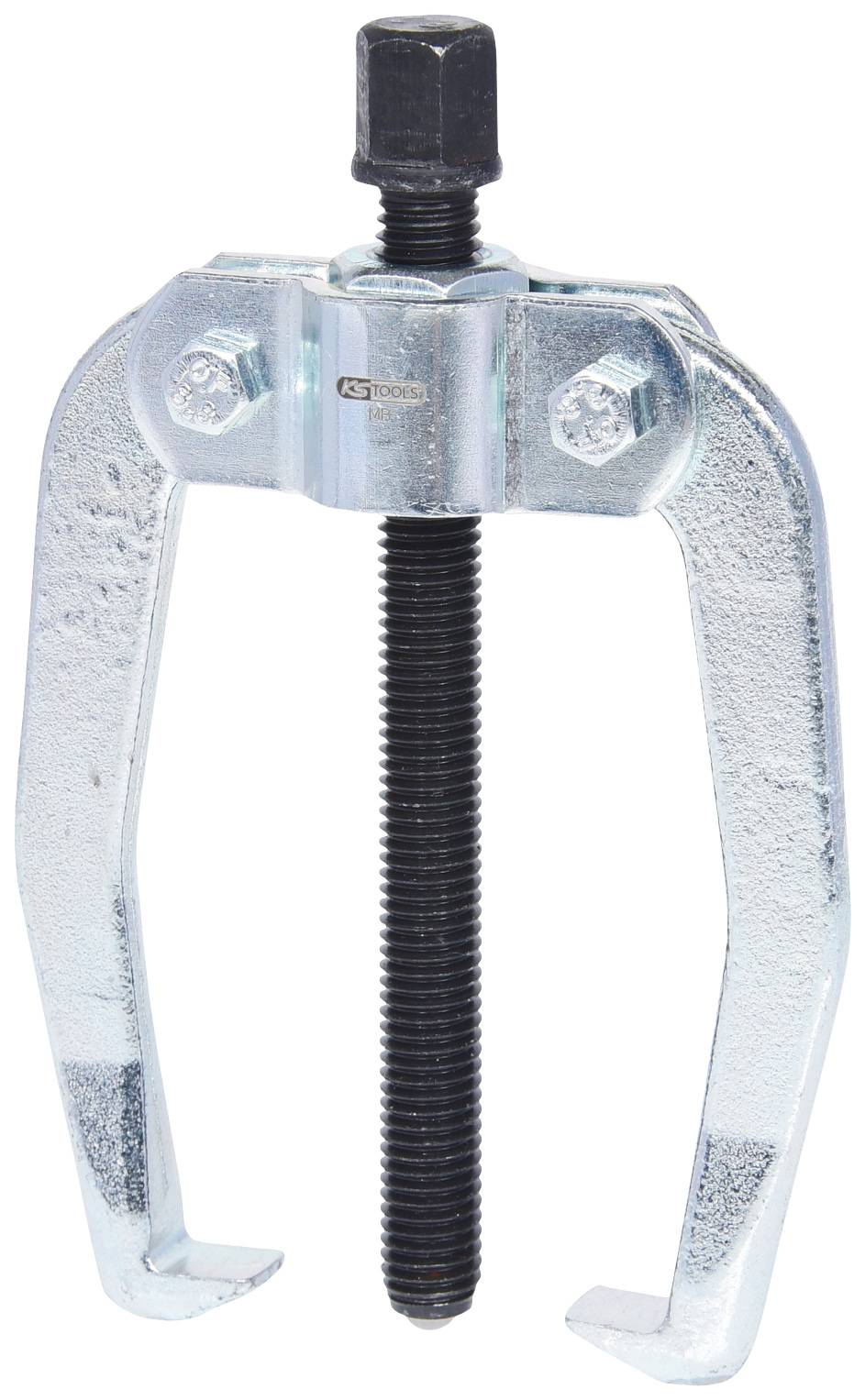

KS Tools 620.4102 Puller Clamping range (details) 10 -70 mm No. of hooks 2
EAN:
Part number:
Item no:
Number
Total (€ 38.65 / piece)
€ 38.65
plus VAT.
Technical specifications
- Pull hook width G: 10 mm
- Pull hook total depth F: 18 mm
- Pull hook height D 2 mm
- Pull hook tip depth E: 9 mm
- Number of pull hooks: With 2 pull-off hooks
- Hexagon drive in mm: 12 mm
- Torque max Nm:35 Nm
- Function attribute 1: With knob
- Weight 300 g
- Material1: Special tool steel
- max. Compressive strength KN: 30.0
- max. Compression force Nm: 35
- max. Pressure force t: 3
- Quick adjustment: No. nein
- Clamping depth B in mm 65 mm
- Span A in mm 10-70 mm
- Span up to [mm]: 70 mm
- Span [mm]: 10 mm
- Spindle size mm M10x1 x 110
- Variant items : 620.4101
- Clamping range
10 -70 mm
- Tension/pressure capacity
3 t
- Weight
300 g
- Content
1 pc(s)
- Hooks
2
- Product type
Puller
- Span width (max.)
70 mm
- Span depth (max.)
65 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695397 KS Tools 620.4102 Puller Clamping range (details) 10 -70 mm No. of hooks 2
Description
Rugged spindle with 6-edged drive640.4103 also with a handle in the spindle driveSpecial tool steel
