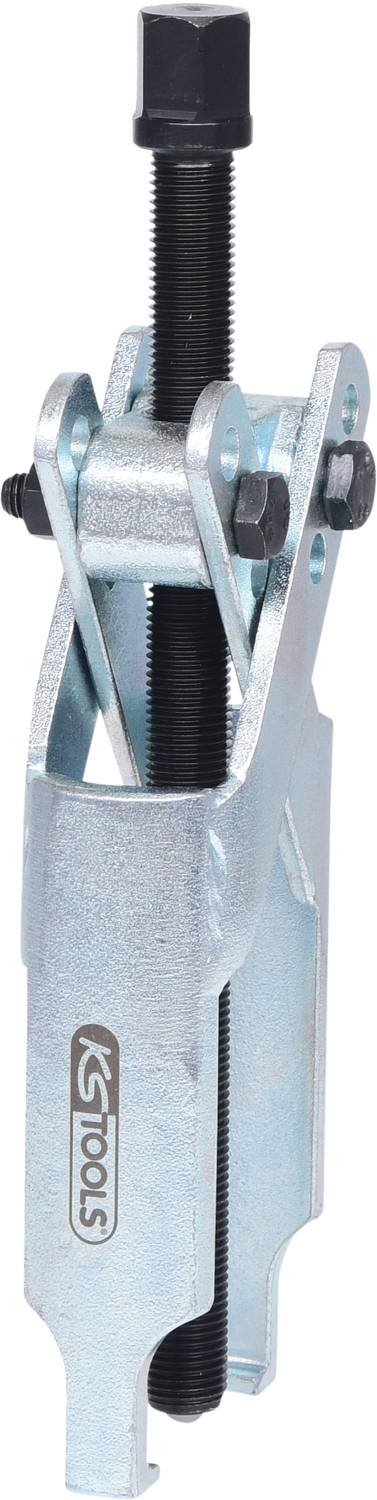

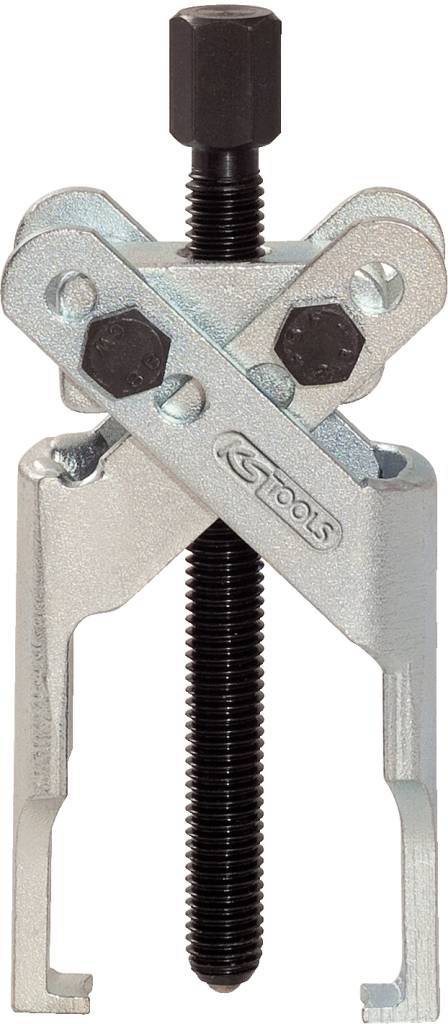

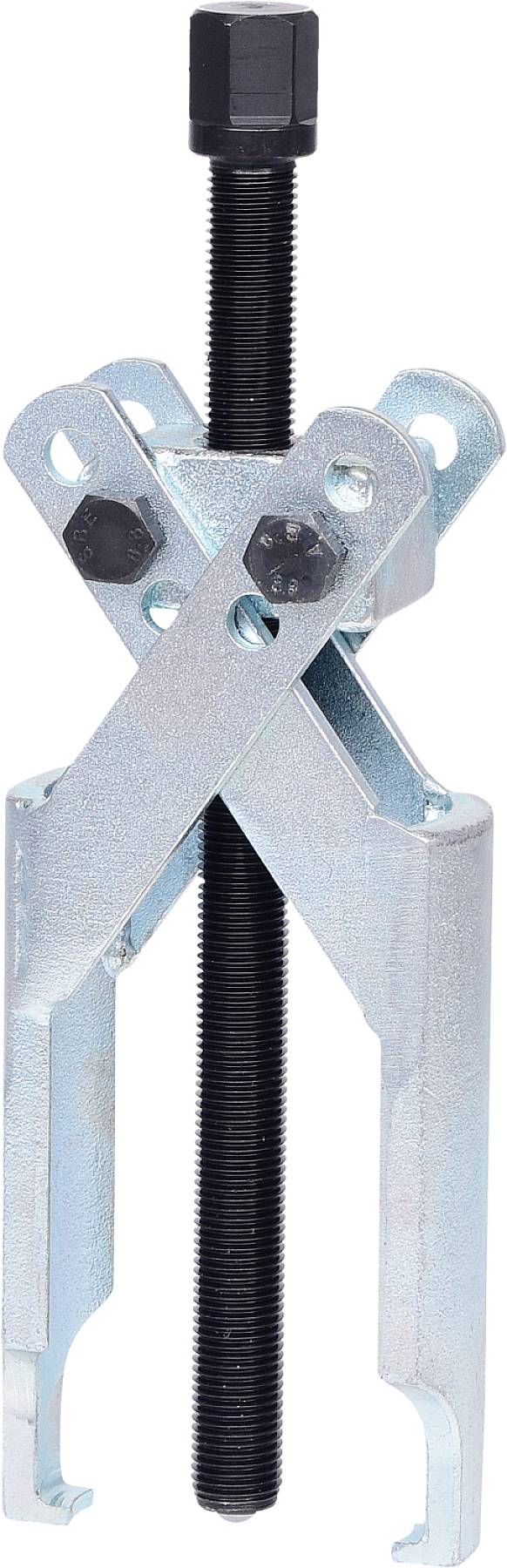

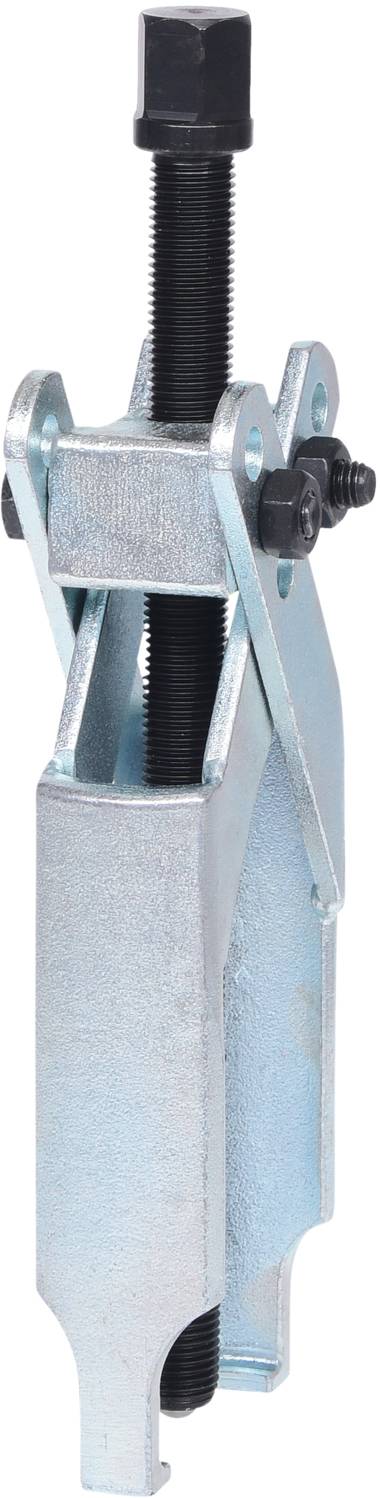

KS Tools 620.5302 Puller Clamping range (details) 15 - 140 mm No. of hooks 2
EAN:
Part number:
Item no:
Number
Total (€ 176.46 / piece)
€ 176.46
plus VAT.
Only 2 Piece(s) available
Technical specifications

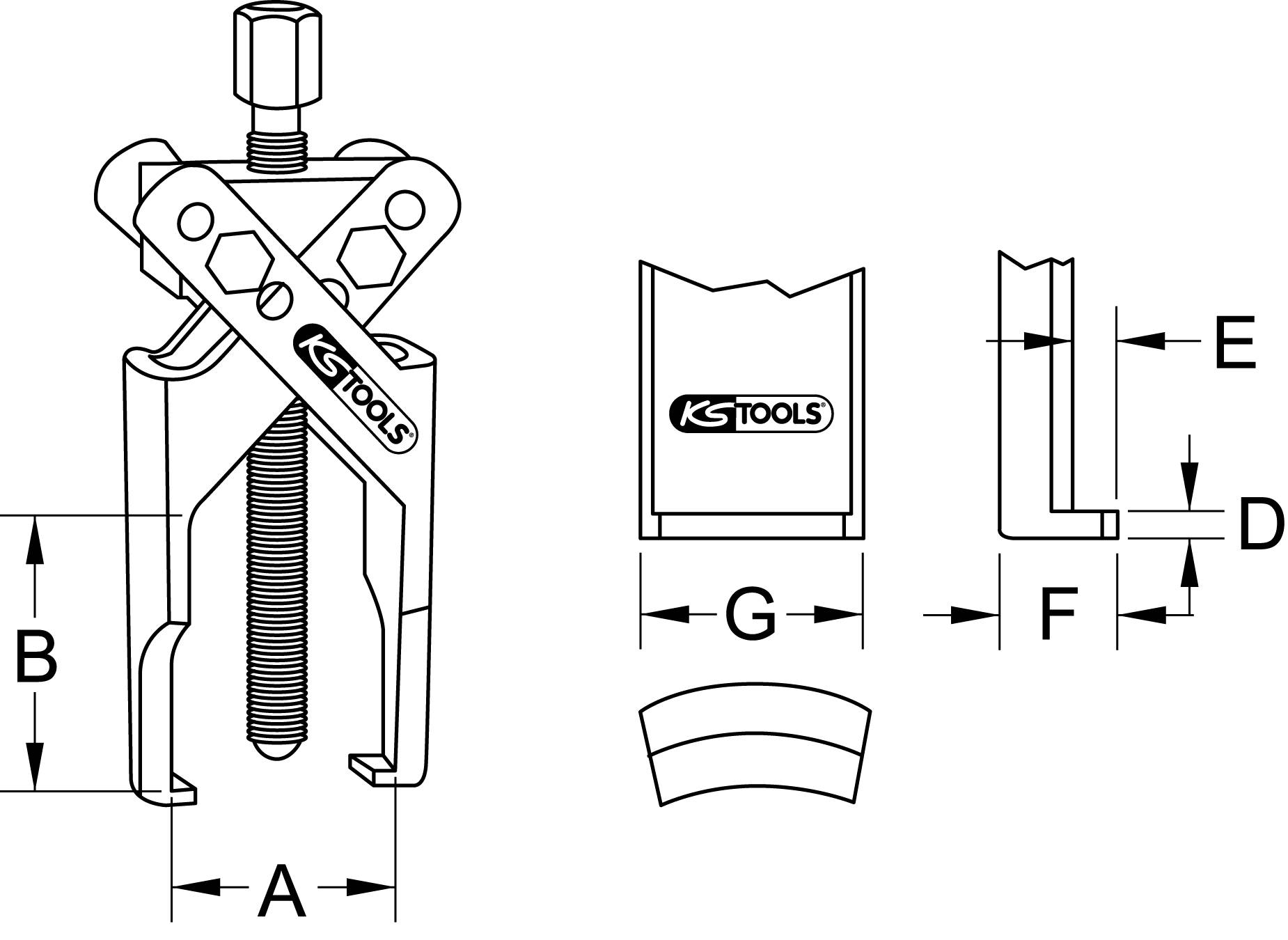

- Pull hook width G: 12 mm
- Pull hook total depth F: 11 mm
- Pull hook height D 3.5 mm
- Pull hook tip depth E: 5 mm
- Number of pull hooks: With 2 pull-off hooks
- Hexagon drive in mm: 17 mm
- Torque max Nm:35 Nm
- Functional attribute 1: Adjustable clamping depth
- Weight 1000 g
- Material1: Special tool steel
- max. Compressive strength KN: 20.0
- max. Compression force Nm: 35
- max. Pressure force t: 2
- Quick adjustment: No. nein
- Clamping depth B in mm 125/155 mm
- Span A in mm 15-140 mm
- Span up to [mm]: 140 mm
- Span [mm]: 15 mm
- Spindle size mm: M14x1.5 x 200
- Variant items : 620.5301
- Clamping range
15 - 140 mm
- Tension/pressure capacity
2 t
- Weight
1000 g
- Content
1 pc(s)
- Hooks
2
- Product type
Puller
- Span width (max.)
140 mm
- Span depth (max.)
155 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695404 KS Tools 620.5302 Puller Clamping range (details) 15 - 140 mm No. of hooks 2
Description
The clamping depth of hooks can be adjustedIdeally suited for narrow spacesAutomatic pressing of hooksExtremely robust spindle with inductively hardened threadSpecial tool steel
