KS Tools 620.5402 Puller Clamping range (details) 200 mm No. of hooks 2
EAN:
Part number:
Item no:
Number
Total (€ 113.44 / piece)
€ 113.44
plus VAT.
Only 3 Piece(s) available

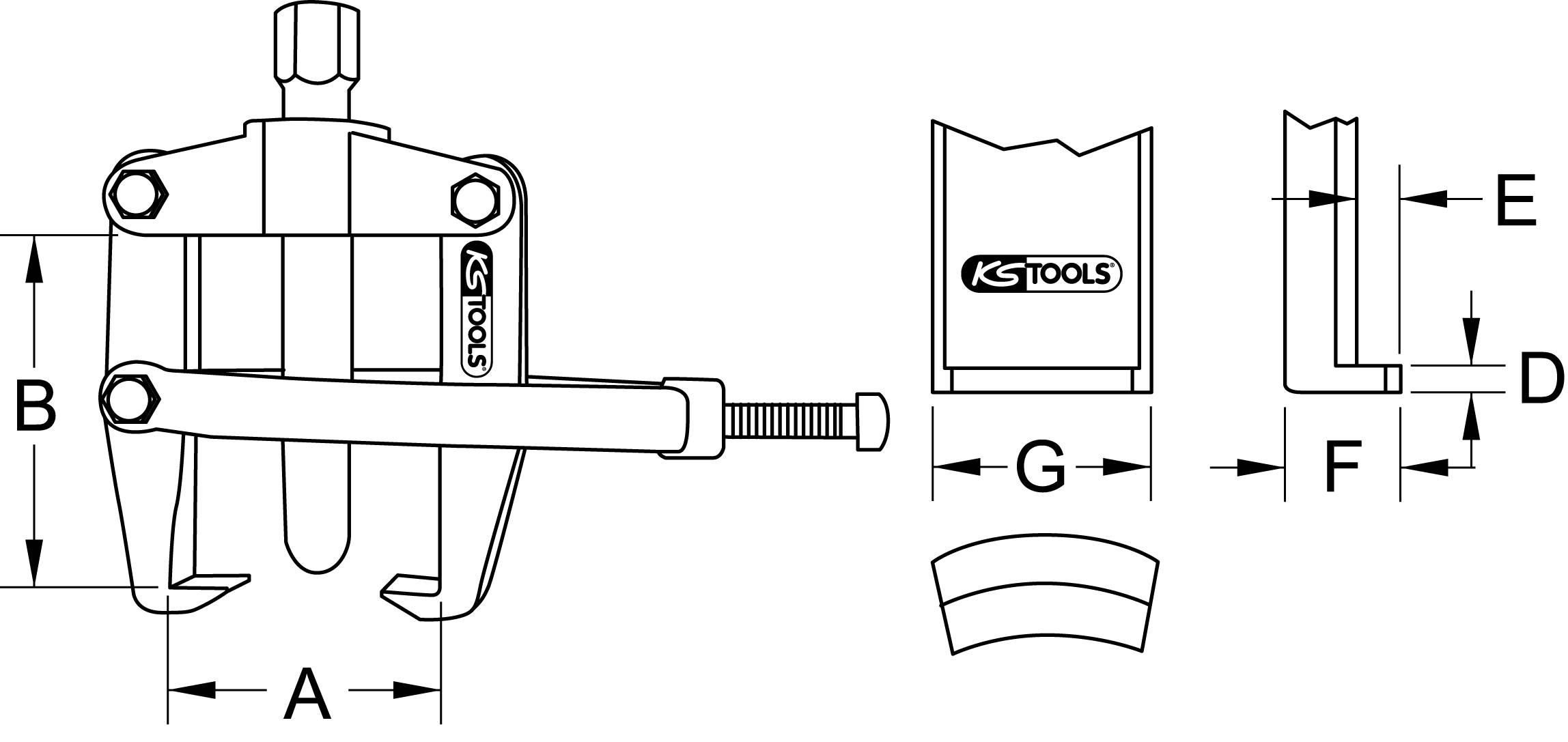

Technical specifications
- Pull hook width G: 24 mm
- Pull hook total depth F: 25 mm
- Pull hook height D 3 mm
- Pull hook tip depth E: 14 mm
- Number of pull hooks: With 2 pull-off hooks
- Hexagon drive in mm: 22 mm
- Torque max Nm:120 Nm
- Feature 1: With clamp
- Weight 2600 g
- Material1: Special tool steel
- max. Compressive strength KN: 60.0
- max. Compression force Nm: 120
- max. Pressure force t: 6
- Quick adjustment: No. nein
- Clamping depth B in mm 110 mm
- Span A in mm 100 mm
- Spindle size mm: G1/2"x14g x 210
- Variant items : 620.5401
- Clamping range
200 mm
- Tension/pressure capacity
6 t
- Weight
2600 g
- Content
1 pc(s)
- Hooks
2
- Product type
Puller
- Span width (max.)
100 mm
- Span depth (max.)
110 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695406 KS Tools 620.5402 Puller Clamping range (details) 200 mm No. of hooks 2
Description
By shear effect the pressing force is increased when pullingClamp securely presses the hook togetherPrevents slippingExtremely robust spindle with inductively hardened threadSpecial tool steel
