Two-legged metal puller with two hook arms and a central screw mechanism, used for removing stubborn parts.

Two-legged metal puller with two hook arms and a central screw mechanism, used for removing stubborn parts.

'Two-legged puller with threaded spindle, suitable for removing bearings, pulleys or gears from shafts.'

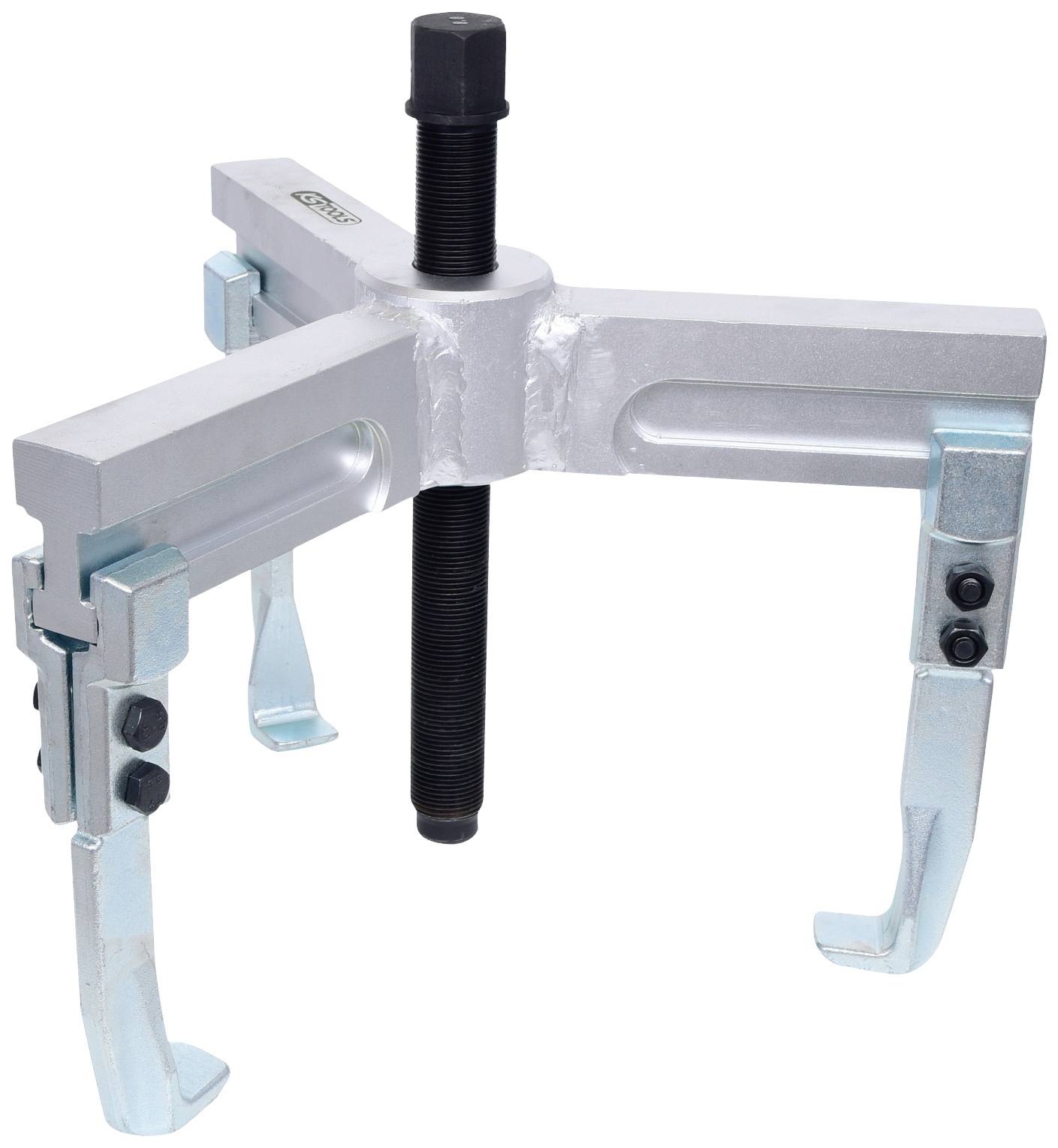

Three-legged puller with screw mechanism, primarily manufactured from metal, suitable for removing bearings or gears.

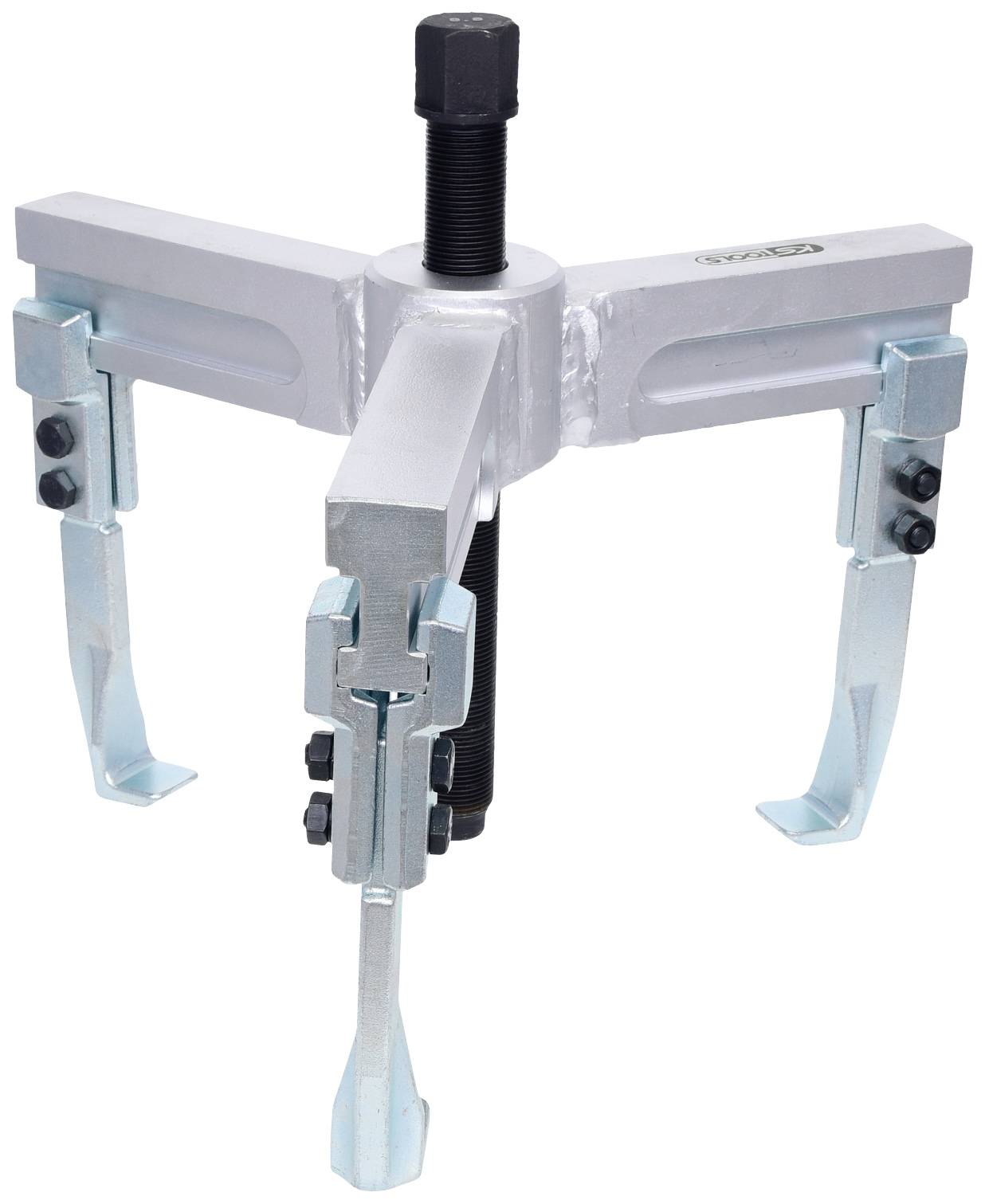

Three-legged puller with central screw mechanism, used for removing bearings or gears from shafts.

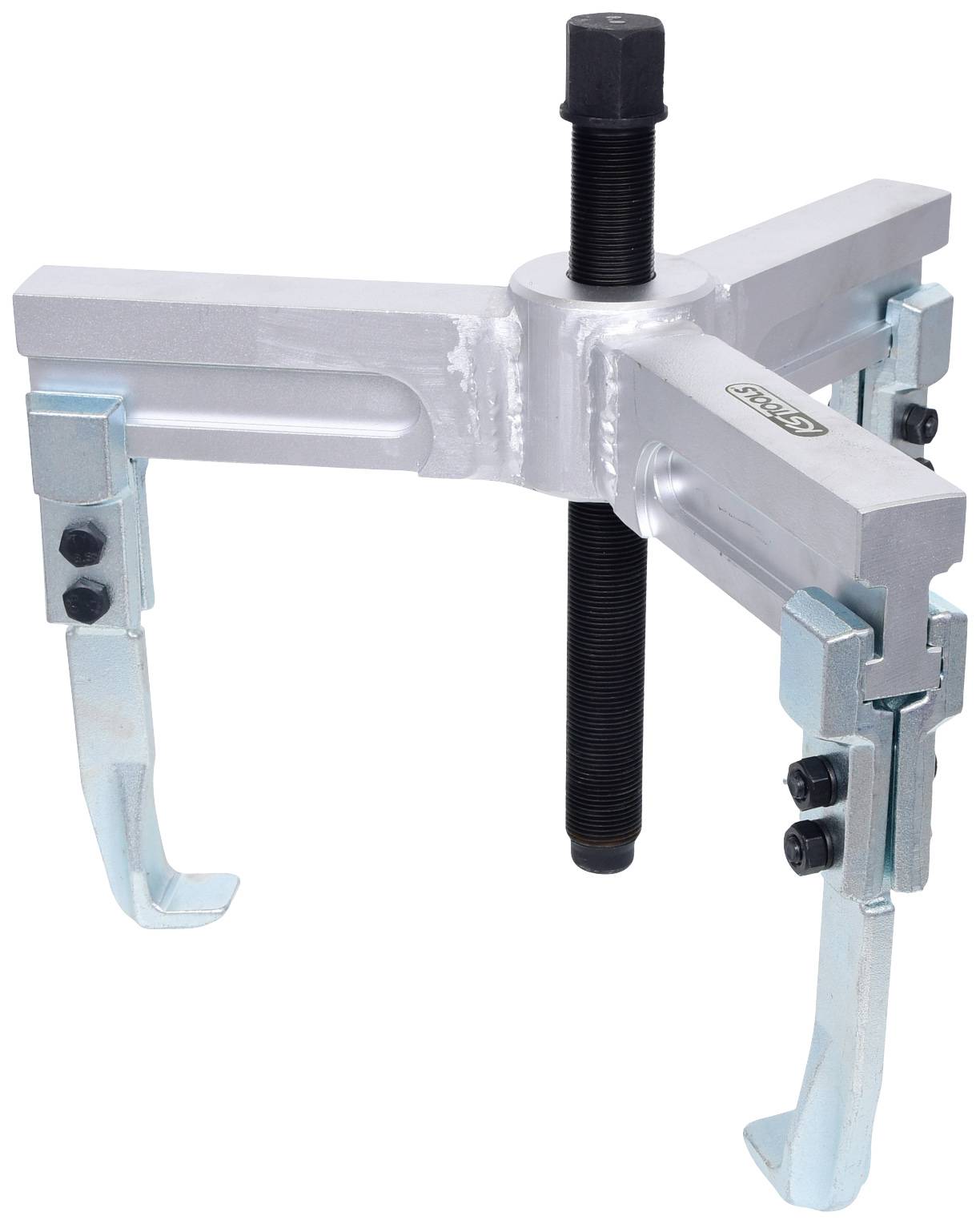

'Three-armed puller with central spindle, used for removing gears or bearings.'

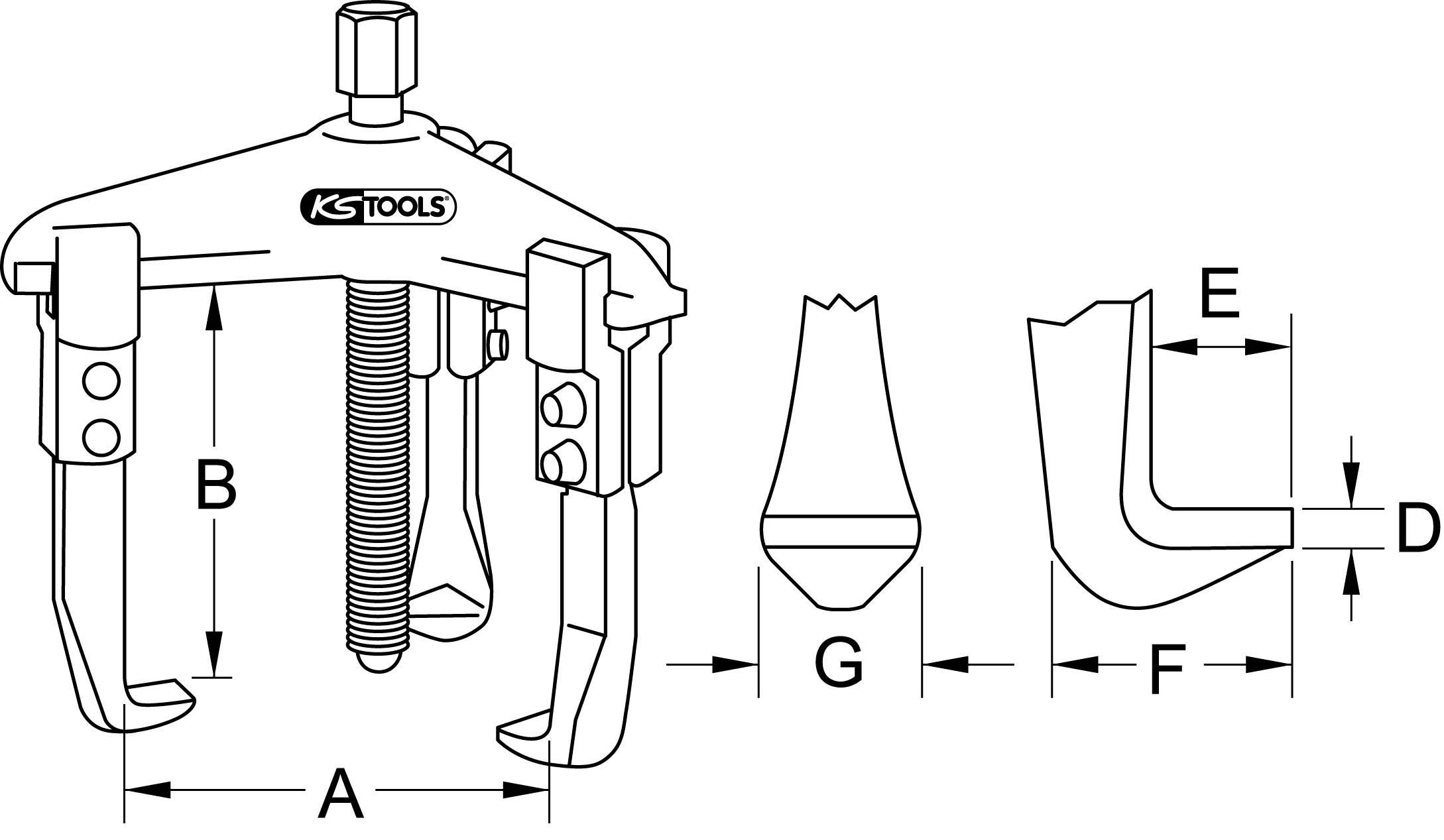

Mechanical three-arm puller by KS Tools, positioned next to a technical drawing with dimensions A, B, D, E, F, G. For use during repairs.

1/6

KS Tools

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 856.30 / piece)

€ 856.30

plus VAT.

Report legal concerns

Technical specifications

Pull hook width G: 35 mm
Pull hook total depth F: 54 mm
Pull hook height D 5 mm
Pull hook tip depth E: 25 mm
Number of pull hooks: With 3 pull-off hooks
Hexagon drive in mm: 36 mm
Weight 21000 g
Material1: Special tool steel
max. Pressure force t: 15
Quick adjustment: No. nein
Clamping depth B in mm 200 mm
Span A in mm 100-380 mm
Wingspan exterior puller C: 210-410
Span up to [mm]: 380 mm
Span [mm]: 100 mm
Spindle size mm: G1"x11 x 310
Variant items : 630.0012

Clamping range: 100 - 380 mm

Weight: 21000 g

Content: 1 pc(s)

Hooks: 3

Product type: Puller

Span depth (max.): 200 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2695422 KS Tools 6300012 Puller Clamping range (details) 100 - 380 mm No. of hooks 3

Description

Extremely robust designEven load distribution and centered tighteningIt can be used as inside or outside puller by changing the hookVarious hook variants and hydraulic spindle can be retrofittedExtremely robust spindle with inductively hardened threadSpecial tool steel
