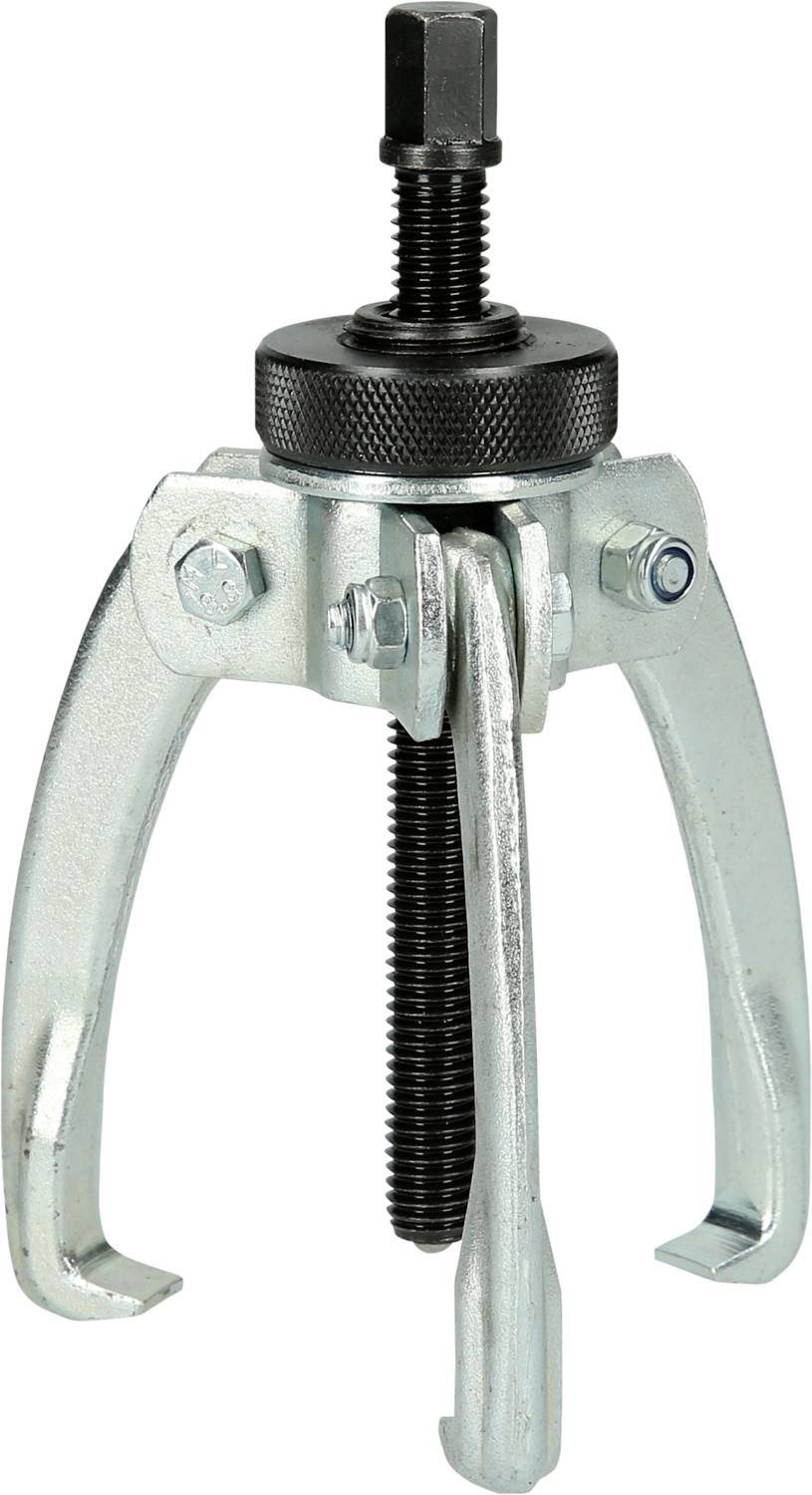

KS Tools 630.0016 Puller Clamping range (details) 15 - 70 mm No. of hooks 3
EAN:
Part number:
Item no:
Number
Total (€ 75.62 / piece)
€ 75.62
plus VAT.
Only 2 Piece(s) available
Technical specifications

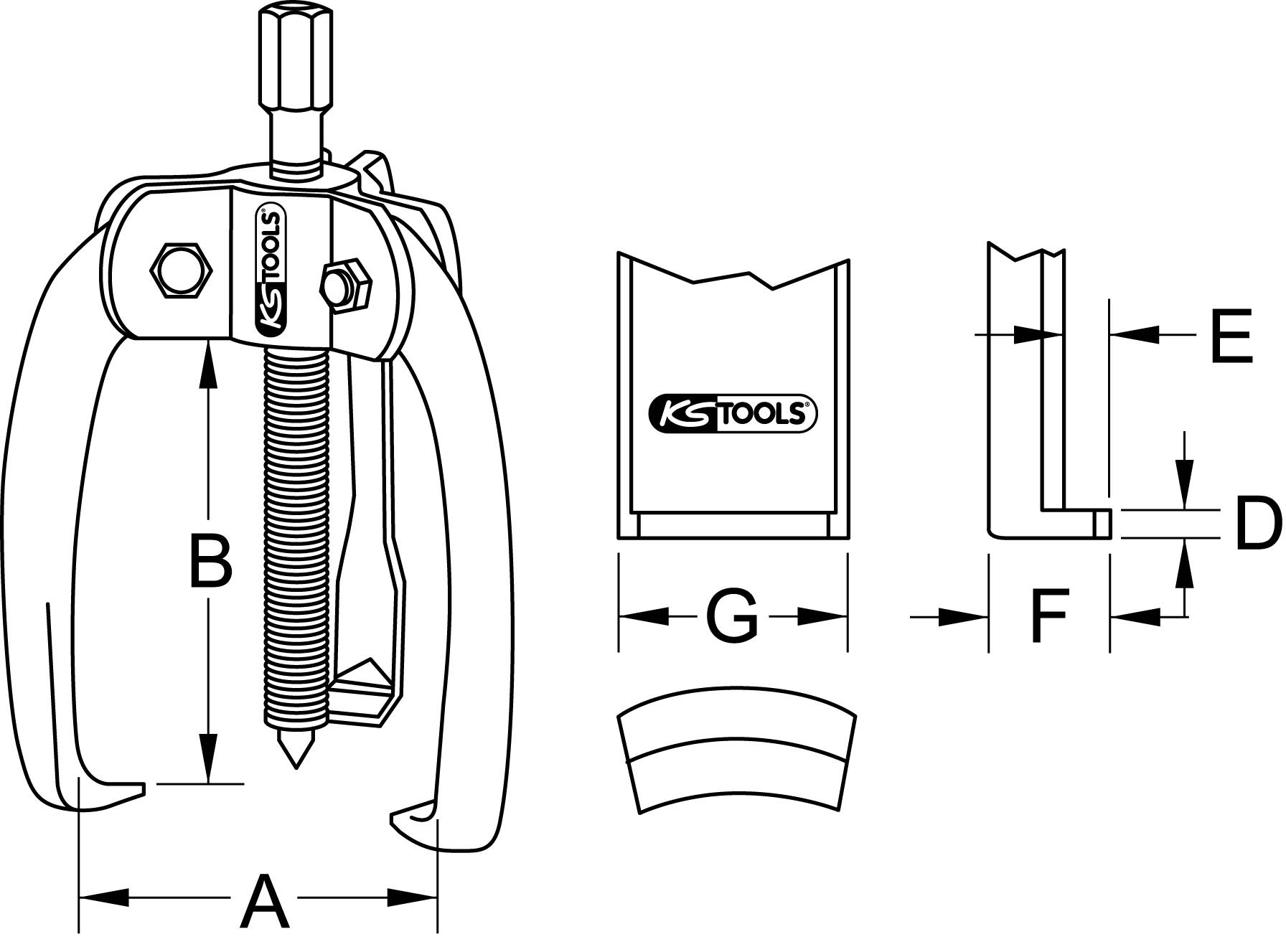

- Pull hook width G: 8 mm
- Pull hook total depth F: 12 mm
- Pull hook height D 1 mm
- Pull hook tip depth E: 5 mm
- Number of pull hooks: With 3 pull-off hooks
- Hexagon drive in mm: 12 mm
- Weight 500 g
- Material1: Special tool steel
- max. Pressure force t: 3.0
- Quick adjustment: No. nein
- Clamping depth B in mm 65 mm
- Span A in mm 15-70 mm
- Span up to [mm]: 70 mm
- Span [mm]: 15 mm
- Spindle size mm: M10x105
- Variant items : 630.0015
- Clamping range
15 - 70 mm
- Tension/pressure capacity
3 t
- Weight
500 g
- Content
1 pc(s)
- Hooks
3
- Product type
Puller
- Span width (max.)
70 mm
- Span depth (max.)
65 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695426 KS Tools 630.0016 Puller Clamping range (details) 15 - 70 mm No. of hooks 3
Description
With clamping screw for proportional distribution of the clamping forceExtremely robust spindle with inductively hardened threadSpecial tool steel
