KS Tools 630.0101 Puller Clamping range (details) 20 - 90 mm No. of hooks 3
EAN:
Part number:
Item no:
Number
Total (€ 92.43 / piece)
€ 92.43
plus VAT.
Only 4 Piece(s) available
Technical specifications

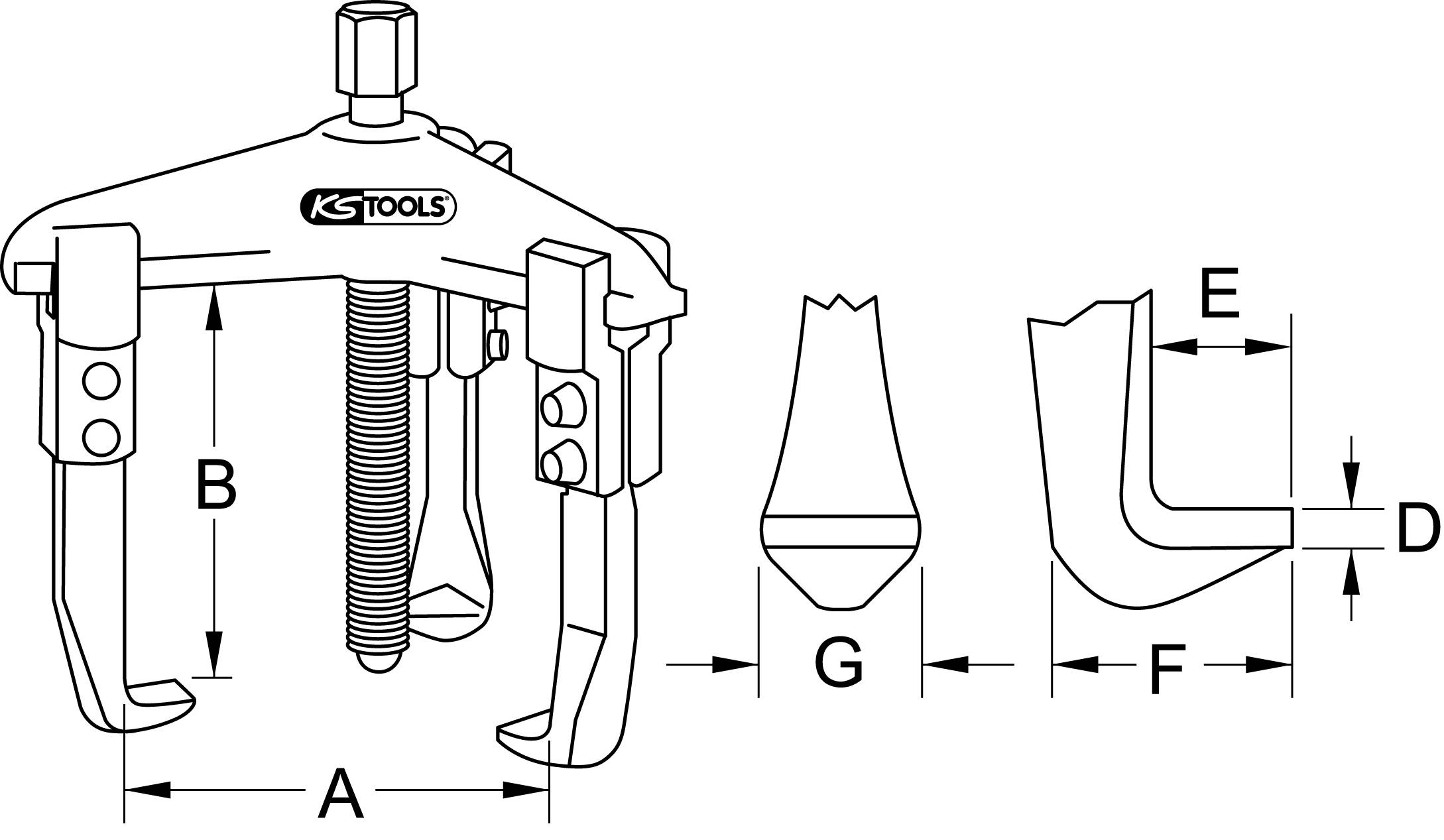

- Pull hook width G: 20 mm
- Pull hook total depth F: 25 mm
- Pull hook height D 3 mm
- Pull hook tip depth E: 13 mm
- Number of pull hooks: With 3 pull-off hooks
- Hexagon drive in mm: 17 mm
- Torque max Nm:90 Nm
- Function attribute 1: Reversible, interior/exterior removal
- Weight 1300 g
- Material1: Special tool steel
- max. Compressive strength KN: 55.0
- max. Compression force Nm: 90
- max. Pressure force t: 5.5
- Quick adjustment: No. nein
- Clamping depth B in mm 100 mm
- Span A in mm 20-90 mm
- Wingspan exterior puller C: 70-140
- Span up to [mm]: 90 mm
- Span [mm]: 20 mm
- Spindle size mm: M14x1.5 x 130
- Variant items : 630.0101
- Clamping range
20 - 90 mm
- Tension/pressure capacity
5.5 t
- Weight
1300 g
- Content
1 pc(s)
- Hooks
3
- Product type
Puller
- Span width (max.)
90 mm
- Span depth (max.)
100 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695441 KS Tools 630.0101 Puller Clamping range (details) 20 - 90 mm No. of hooks 3
Description
Even load distribution and centered tighteningIt can be used as inside or outside puller by changing the hookHydraulic spindle can be retrofitted for G1/2" threadLess force requiredSpecial tool steel
