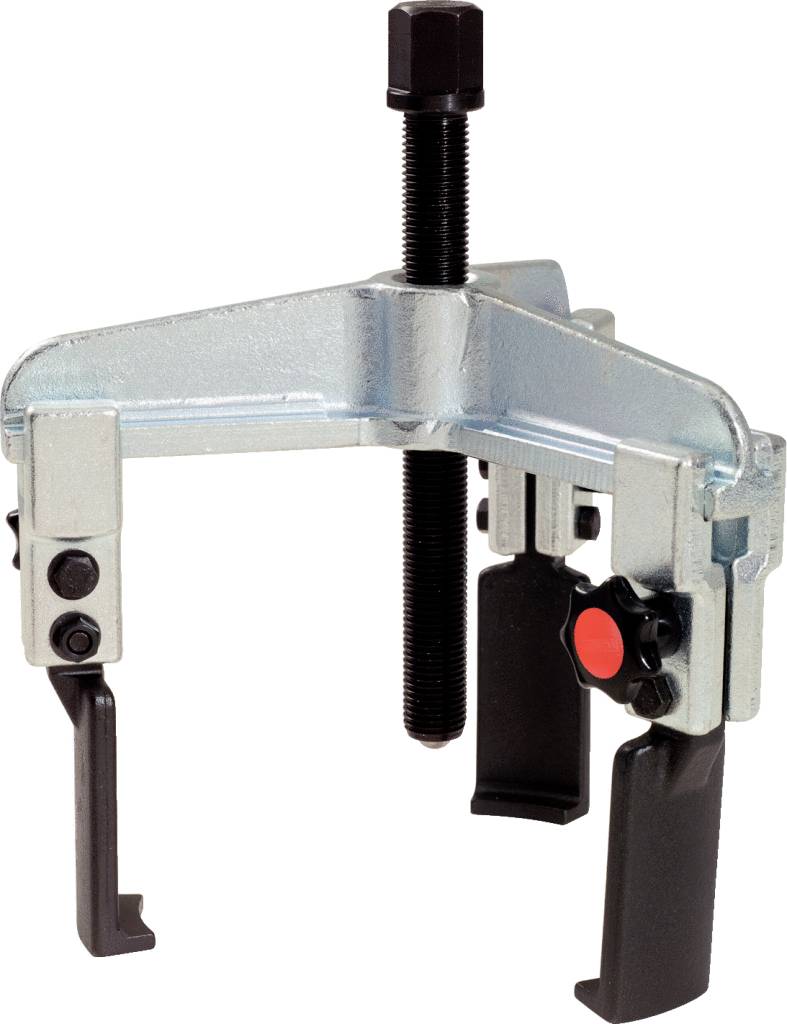

KS Tools 6301104 Puller Clamping range (details) 60 - 200 mm No. of hooks 3
EAN:
Part number:
Item no:
Sales and shipping:
Total (€ 239.50 / piece)
€
Technical specifications

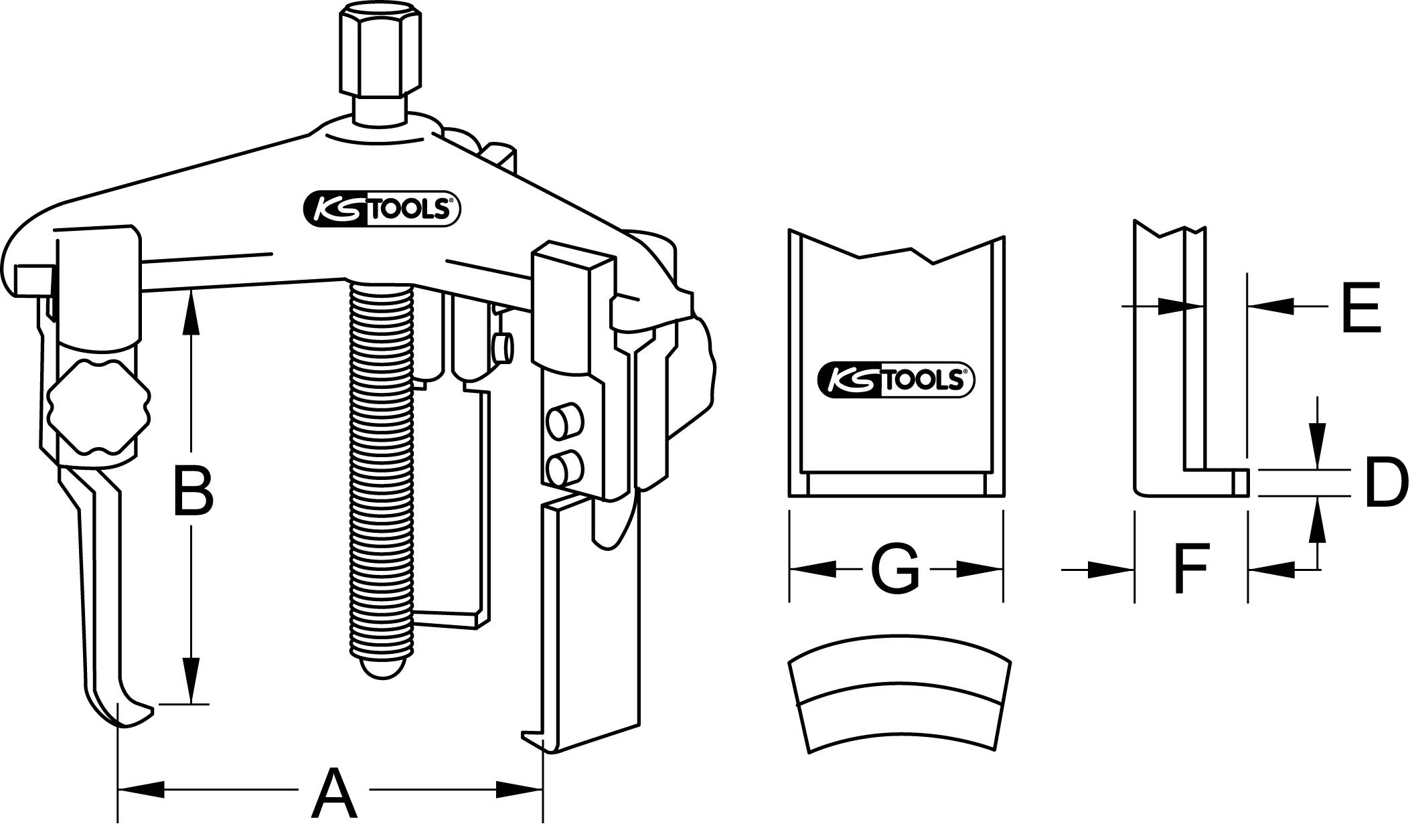

- Pull hook width G: 40 mm
- Pull hook total depth F: 17 mm
- Pull hook height D 5 mm
- Pull hook tip depth E: 8 mm
- Number of pull hooks: With 3 pull-off hooks
- Hexagon drive in mm: 22 mm
- Torque max Nm:150 Nm
- Shape: Slim design
- Function attribute 1: Reversible, interior/exterior removal
- Weight 4000 g
- Material1: Special tool steel
- max. Compressive strength KN: 6.5
- max. Compression force Nm: 150
- max. Pressure force t: 6.5
- Quick adjustment: Yes
- Clamping depth B in mm 150 mm
- Span A in mm 60-200 mm
- Wingspan exterior puller C: 115-215
- Span up to [mm]: 200 mm
- Span [mm]: 60 mm
- Spindle size mm: G1/2"x14g x 210
- Variant items : 630.1101
- Clamping range
60 - 200 mm
- Tension/pressure capacity
6.5 t
- Weight
4000 g
- Content
1 pc(s)
- Span depth (max.)
150 mm
- Span width (max.)
200 mm
- Hooks
3
- Product type
Puller
