KS Tools 6301702 Puller Clamping range (details) 25 - 130 mm No. of hooks 3
EAN:
Part number:
Item no:
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.
Only 1 Piece(s) available
Technical specifications

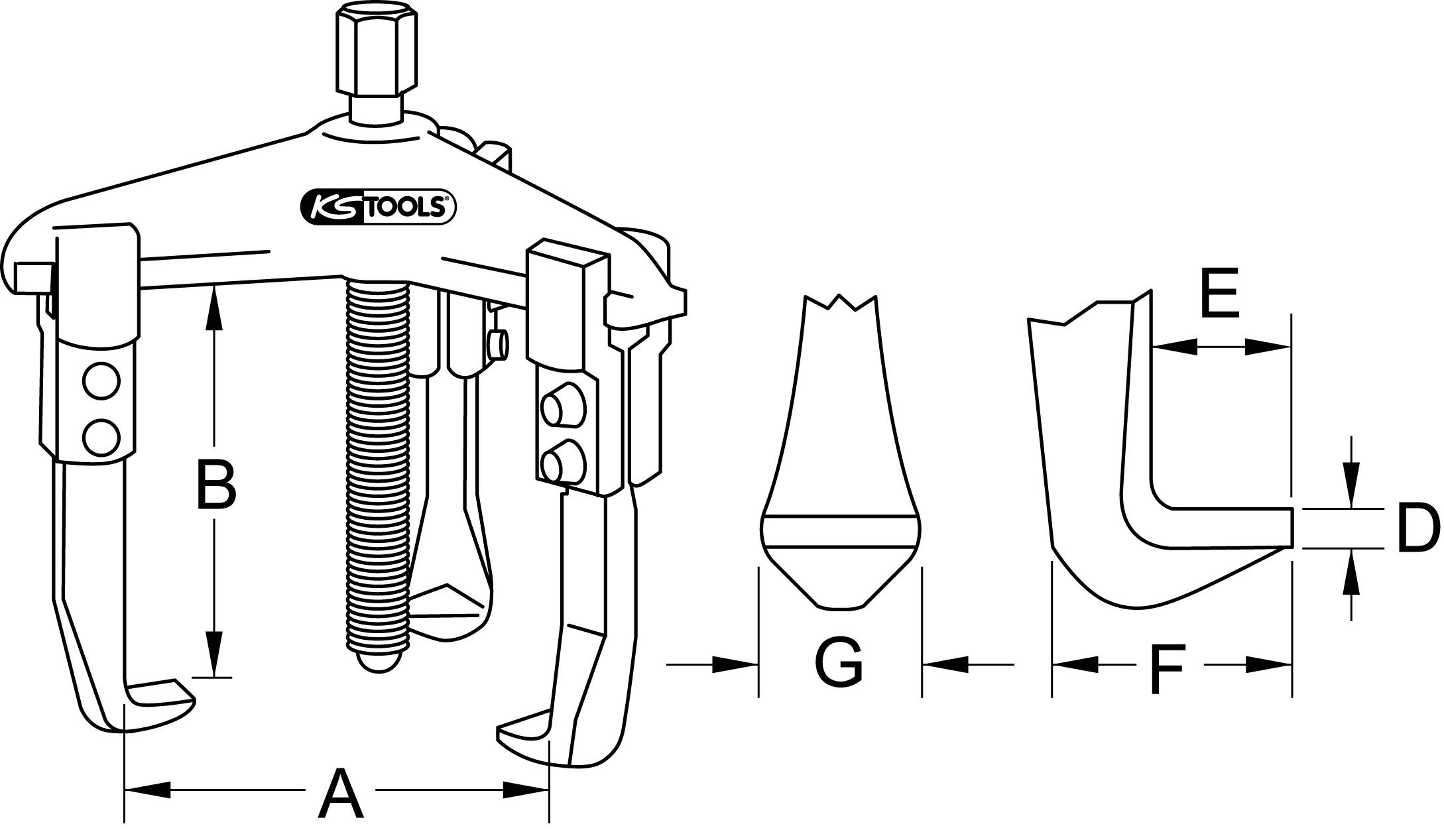

- Pull hook width G: 20 mm
- Pull hook total depth F: 25 mm
- Pull hook height D 3 mm
- Pull hook tip depth E: 13 mm
- Number of pull hooks: With 3 pull-off hooks
- Hexagon drive in mm: 17 mm
- Torque max Nm:90 Nm
- Function attribute 1: Reversible, interior/exterior removal
- Weight 1500 g
- Material1: Special tool steel
- max. Compressive strength KN: 55.0
- max. Compression force Nm: 90
- max. Pressure force t: 5.5
- Quick adjustment: Yes
- Clamping depth B in mm 100 mm
- Span A in mm 25-130 mm
- Wingspan exterior puller C: 15-170
- Span up to [mm]: 130 mm
- Span [mm]: 25 mm
- Spindle size mm: M14x1.5 x 130
- Variant items : 630.1701
- Clamping range
25 - 130 mm
- Tension/pressure capacity
5.5 t
- Weight
1500 g
- Content
1 pc(s)
- Hooks
3
- Product type
Puller
- Span width (max.)
130 mm
- Span depth (max.)
100 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695460 KS Tools 6301702 Puller Clamping range (details) 25 - 130 mm No. of hooks 3
Description
With quick clampIdeally suited for narrow spacesEven load distribution and centered tighteningIt can be used as inside or outside puller by changing the hookHydraulic spindle can be retrofitted for G1/2" threadExtremely robust spindle with inductively hardened threadSpecial tool steel
