KS Tools 630.1703 Puller Clamping range (details) 75 - 185 mm No. of hooks 3
EAN:
Part number:
Item no:
Number
Total (€ 176.46 / piece)
€ 176.46
plus VAT.
Only 4 Piece(s) available
Technical specifications

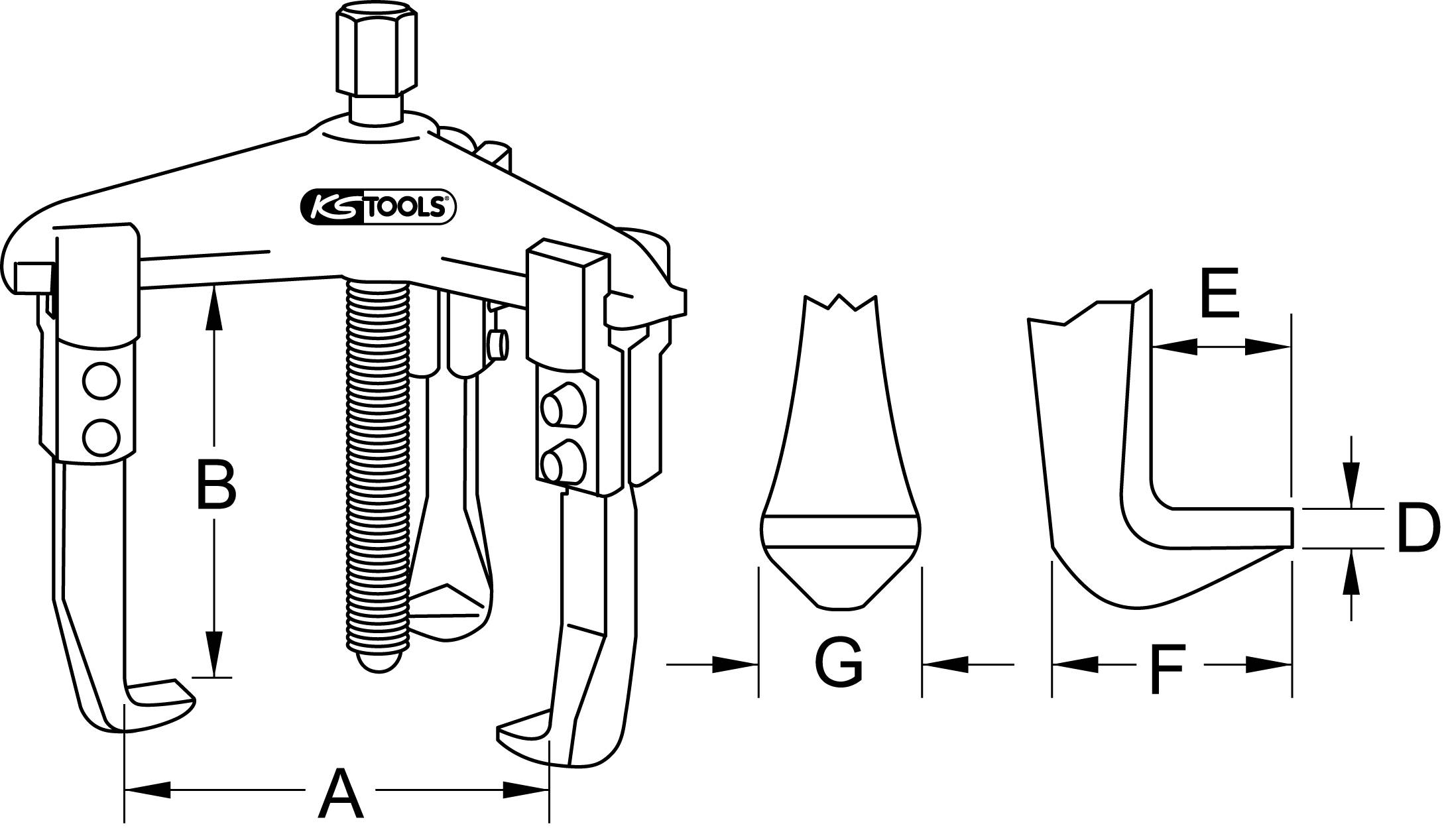

- Pull hook width G: 25 mm
- Pull hook total depth F: 35 mm
- Pull hook height D 4 mm
- Pull hook tip depth E: 16 mm
- Number of pull hooks: With 3 pull-off hooks
- Hexagon drive in mm: 22 mm
- Torque max Nm:180 Nm
- Function attribute 1: Reversible, interior/exterior removal
- Weight 3500 g
- Material1: Special tool steel
- max. Compressive strength KN: 70.0
- max. Compression force Nm: 180
- max. Pressure force t: 7
- Quick adjustment: Yes
- Clamping depth B in mm 150 mm
- Span A in mm 50-160 mm
- Wingspan exterior puller C: 75-185
- Span up to [mm]: 160 mm
- Span [mm]: 50 mm
- Spindle size mm: G1/2"x14g x 210
- Variant items : 630.1701
- Clamping range
75 - 185 mm
- Tension/pressure capacity
7 t
- Weight
3500 g
- Content
1 pc(s)
- Hooks
3
- Product type
Puller
- Width
25 mm
- Span width (max.)
185 mm
- Span depth (max.)
150 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695461 KS Tools 630.1703 Puller Clamping range (details) 75 - 185 mm No. of hooks 3
Description
With quick clampIdeally suited for narrow spacesEven load distribution and centered tighteningIt can be used as inside or outside puller by changing the hookHydraulic spindle can be retrofitted for G1/2" threadExtremely robust spindle with inductively hardened threadSpecial tool steel
