A three-legged metal puller, a tool for removing bearings or gears. Adjustable arms and central screw visible.

A three-legged metal puller, a tool for removing bearings or gears. Adjustable arms and central screw visible.

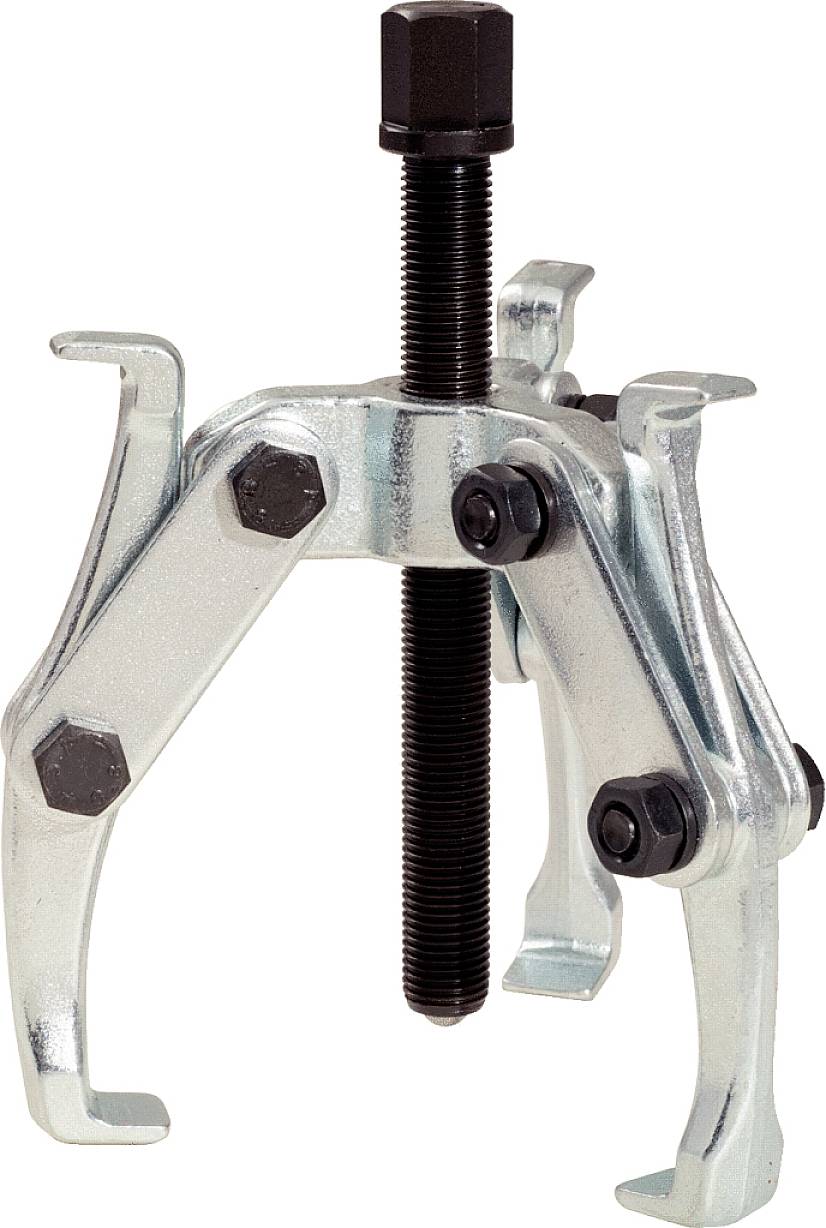

Two-legged puller with metal claws and central screw for loosening tight-fitting screw connections or bearings.

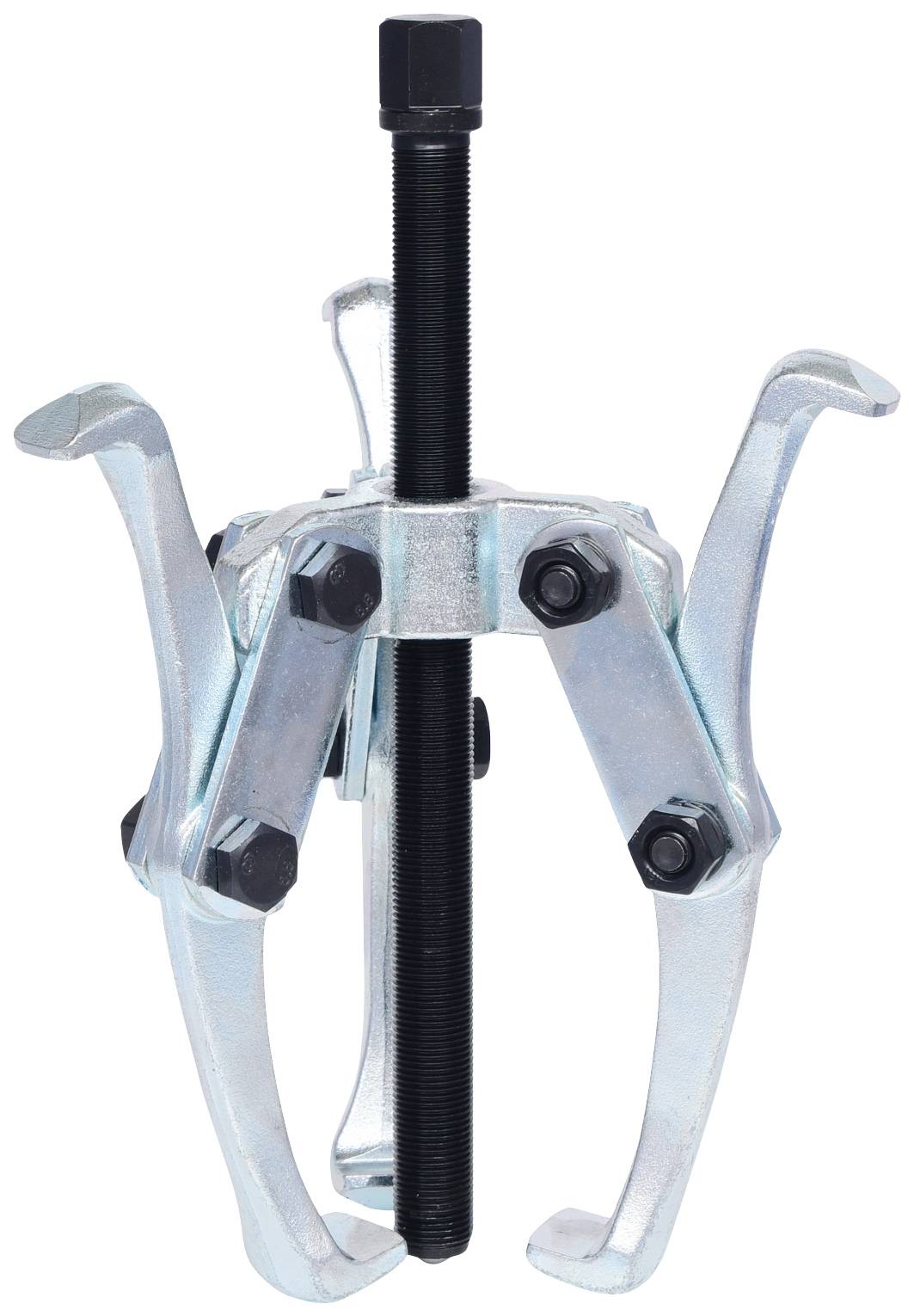

A three-fingered metal puller with a central screw for removing bearings or gears.

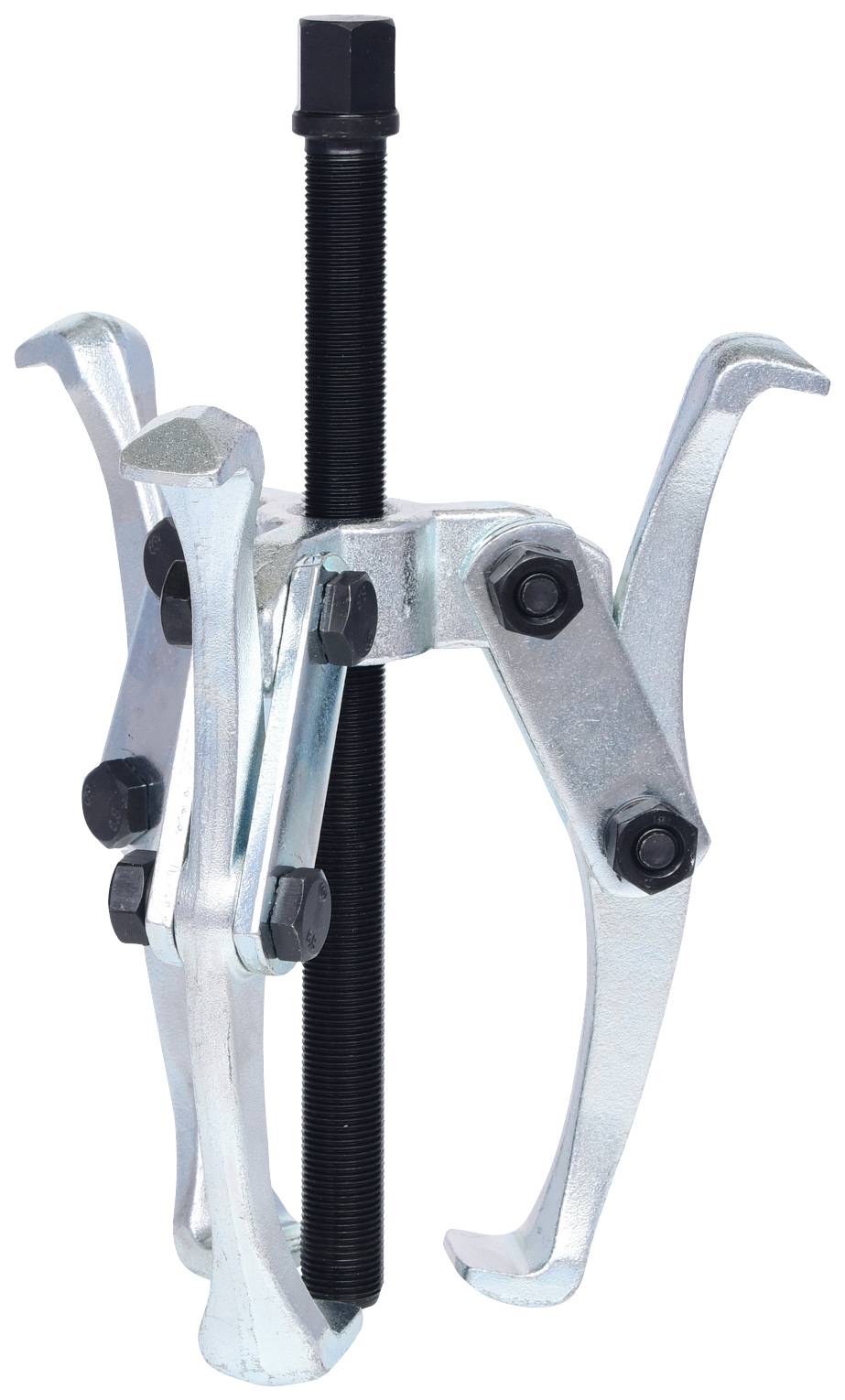

A three-arm puller with a black spindle and silver arms. Used for removing bearings or gears.

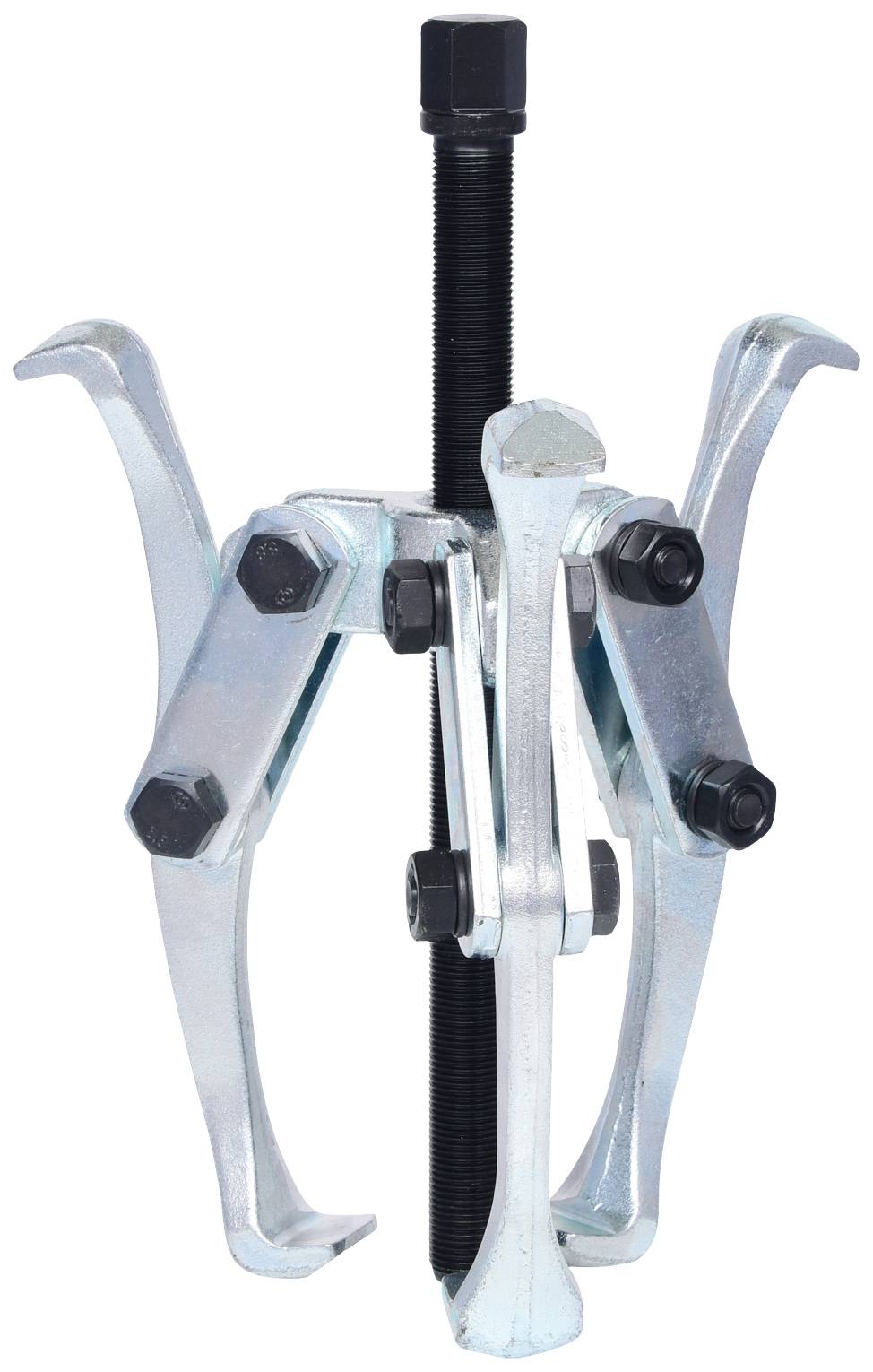

Three-legged metal puller, used for removing bearings or gears. Adjustable arms and threaded rod for secure grip.

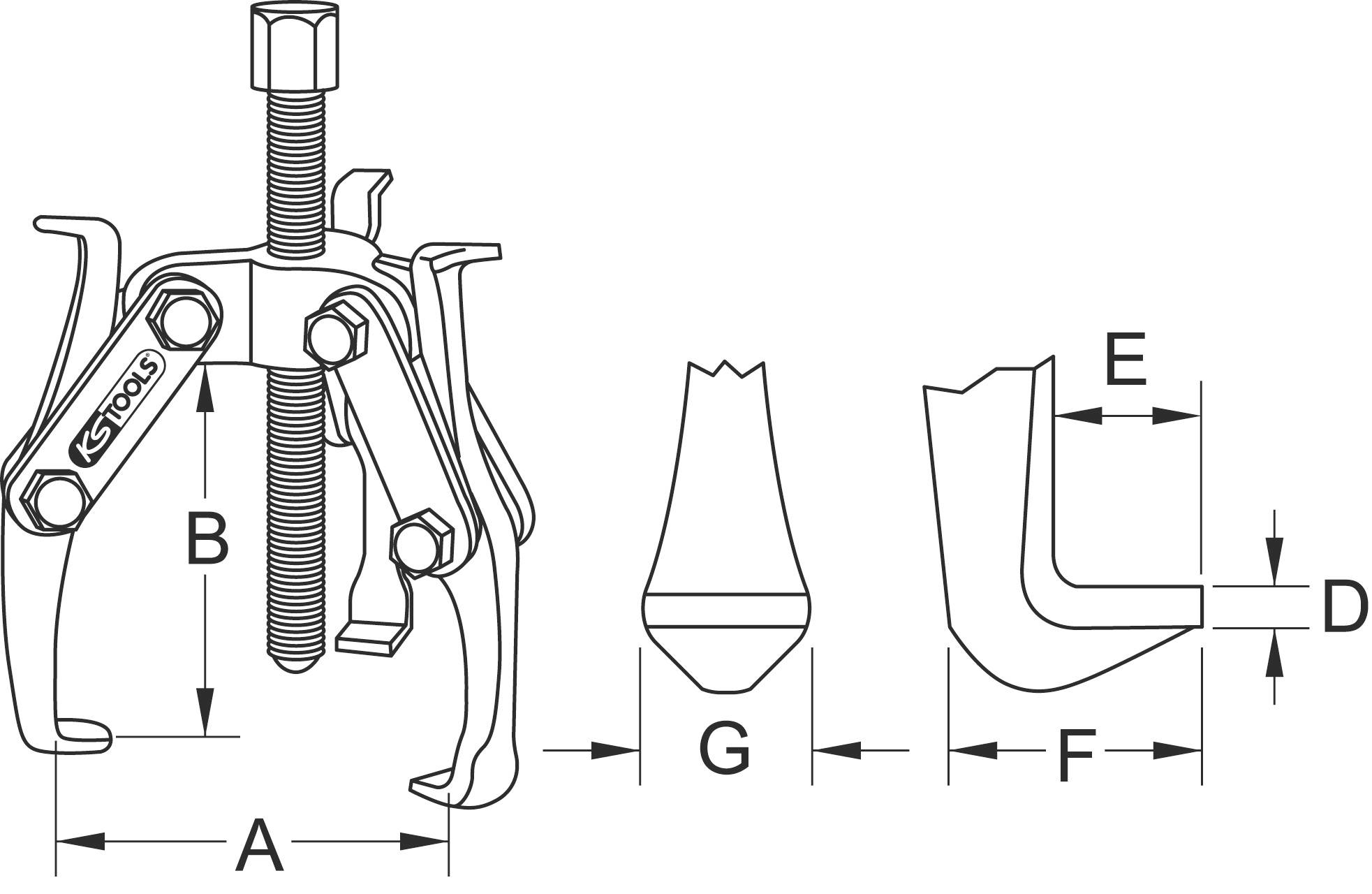

Technical drawing of a three-legged puller with dimensional specifications: A, B, D, E, F, G. Shows the construction and design of the tool.

1/6

KS Tools

Fast track dispatch on Thu, 8 Oct

7 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 121.84 / piece)

€ 121.84

plus VAT.

Only 7 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Pull hook width G: 21 mm
Pull hook total depth F: 25 mm
Pull hook height D 4 mm
Pull hook tip depth E: 11 mm
Number of pull hooks: With 3 pull-off hooks
Hexagon drive in mm: 19 mm
Torque max Nm:70 Nm
Weight 2900 g
Material1: Special tool steel
max. Compressive strength KN: 45.0
max. Compression force Nm: 70
max. Pressure force t: 4.5
Quick adjustment: No. nein
Clamping depth B in mm 130 mm
Span A in mm 40-220 mm
Span up to [mm]: 220 mm
Span [mm]: 40 mm
Spindle size mm: M18x1.5 x 240
Variant items : 630.3001

Clamping range: 40 - 220 mm

Tension/pressure capacity: 4.5 t

Weight: 2900 g

Content: 1 pc(s)

Hooks: 3

Product type: Puller

Span width (max.): 220 mm

Span depth (max.): 130 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2695467 KS Tools 630.3002 Puller Clamping range (details) 40 - 220 mm No. of hooks 3

Description

Hook can be used on both sidesExtremely robust spindle with inductively hardened threadSpecial tool steel
