KS Tools 630.3101 Battery clip puller Clamping range (details) +10 - +60 mm No. of hooks 3
EAN:
Part number:
Item no:
Number
Total (€ 31.92 / piece)
€ 31.92
plus VAT.
Only 2 Piece(s) available

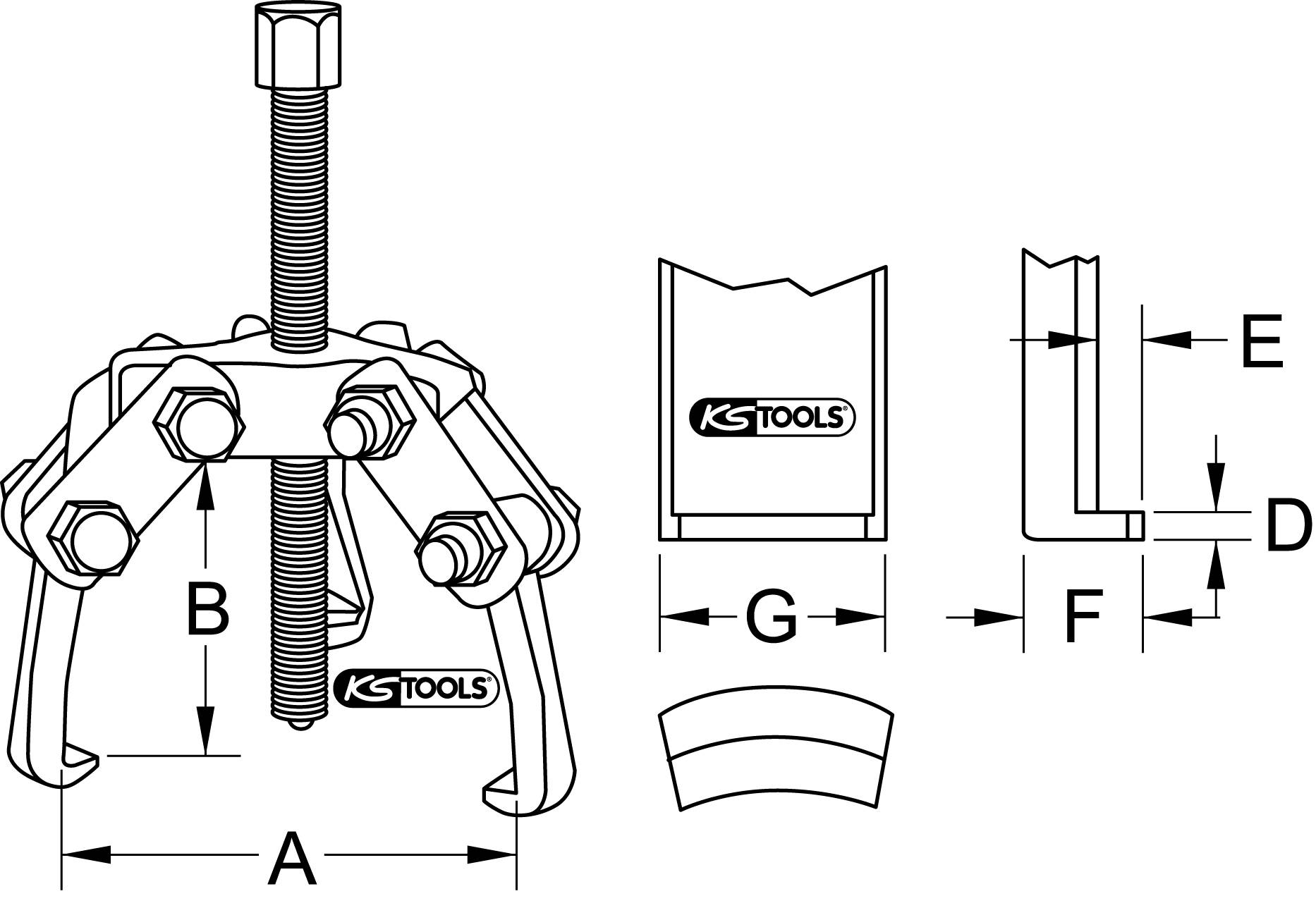

Technical specifications
- Pull hook width G: 8 mm
- Pull hook total depth F: 12 mm
- Pull hook height D 1 mm
- Pull hook tip depth E: 5 mm
- Number of pull hooks: With 3 pull-off hooks
- Hexagon drive in mm: 10 mm
- Torque max Nm:20 Nm
- Weight 200 g
- Material1: Special tool steel
- max. Compressive strength KN: 12.0
- max. Compression force Nm: 20
- max. Pressure force t: 1.2
- Quick adjustment: No. nein
- Clamping depth B in mm 40 mm
- Span A in mm 10-60 mm
- Span up to [mm]: 60 mm
- Span [mm]: 10 mm
- Spindle size mm M8 x 85
- Variant items : 630.3101
- Clamping range
+10 - +60 mm
- Tension/pressure capacity
1.2 t
- Weight
200 g
- Content
1 pc(s)
- Hooks
3
- Product type
Battery clip puller
- Span width (max.)
60 mm
- Span depth (max.)
40 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695468 KS Tools 630.3101 Battery clip puller Clamping range (details) +10 - +60 mm No. of hooks 3
Description
Even load distribution and centered tighteningIdeal suitable for removing small partsAutomatic pressing of hooksExtremely robust spindle with inductively hardened threadSpecial tool steel
