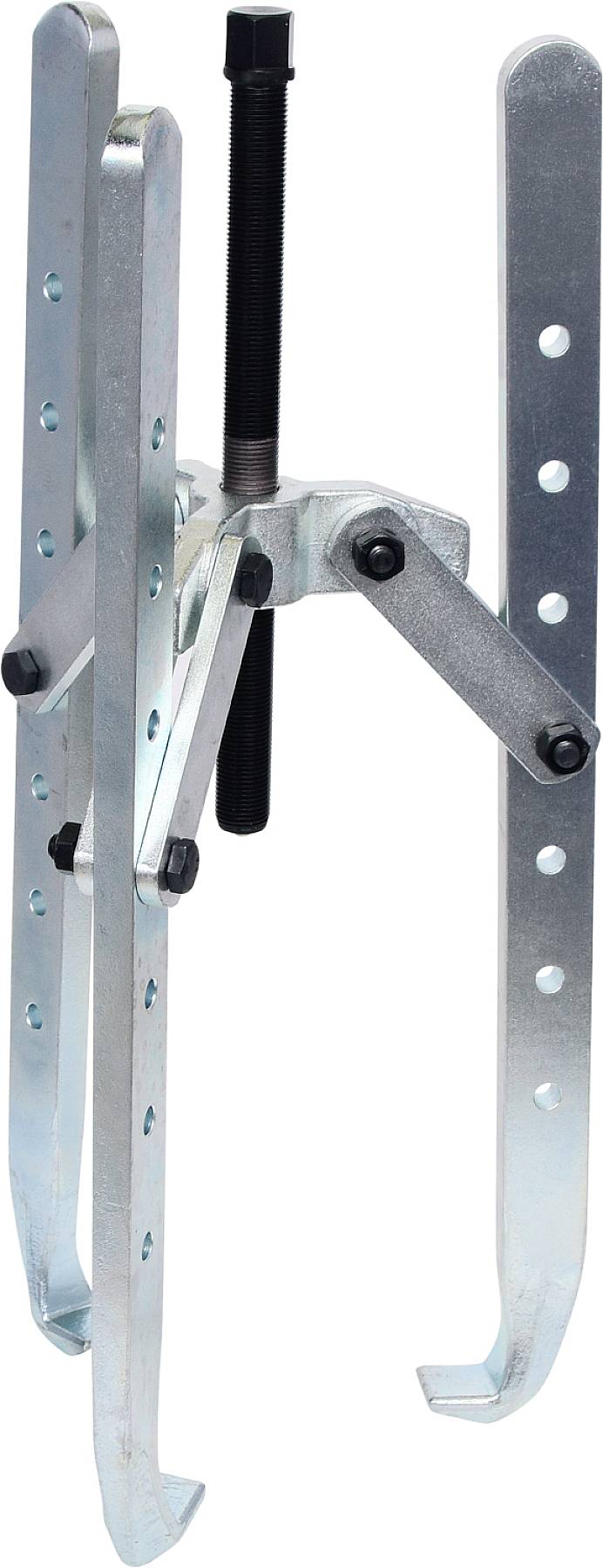

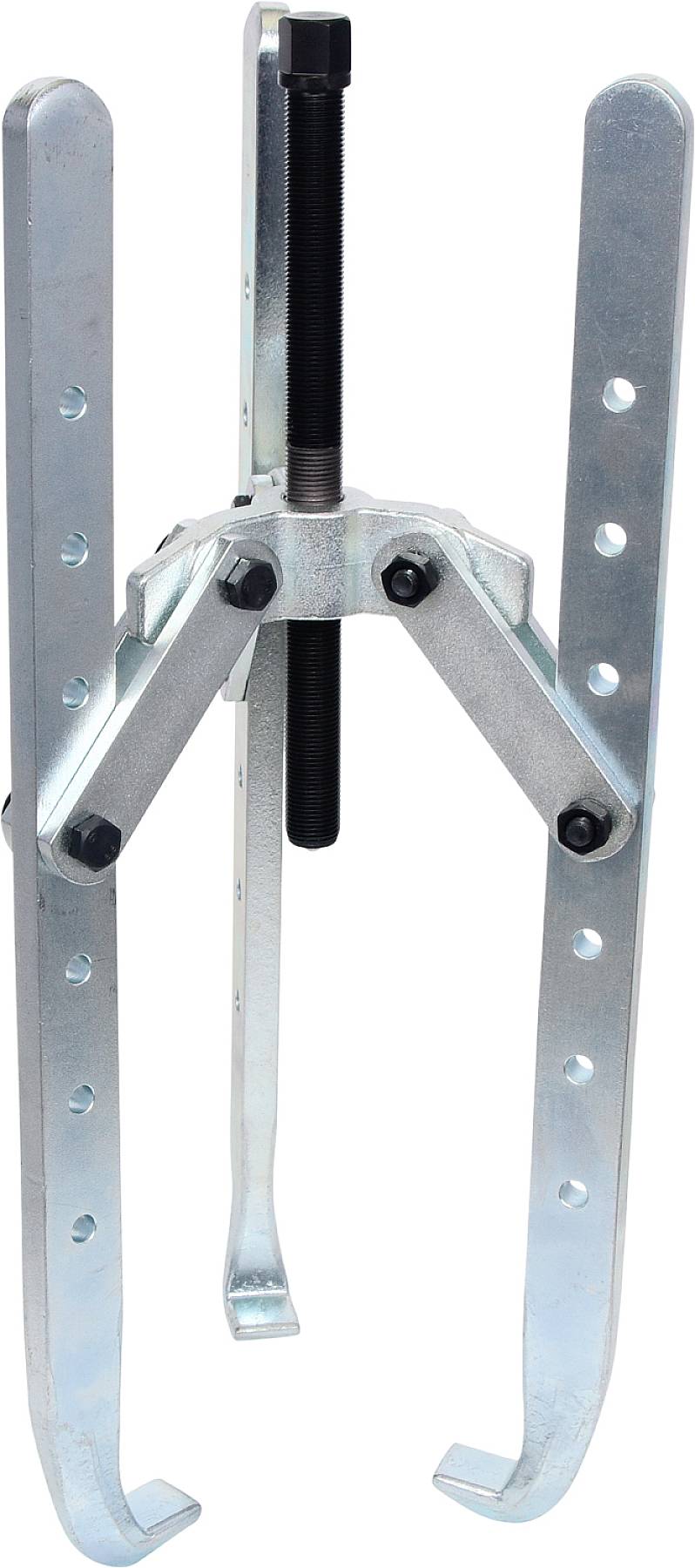

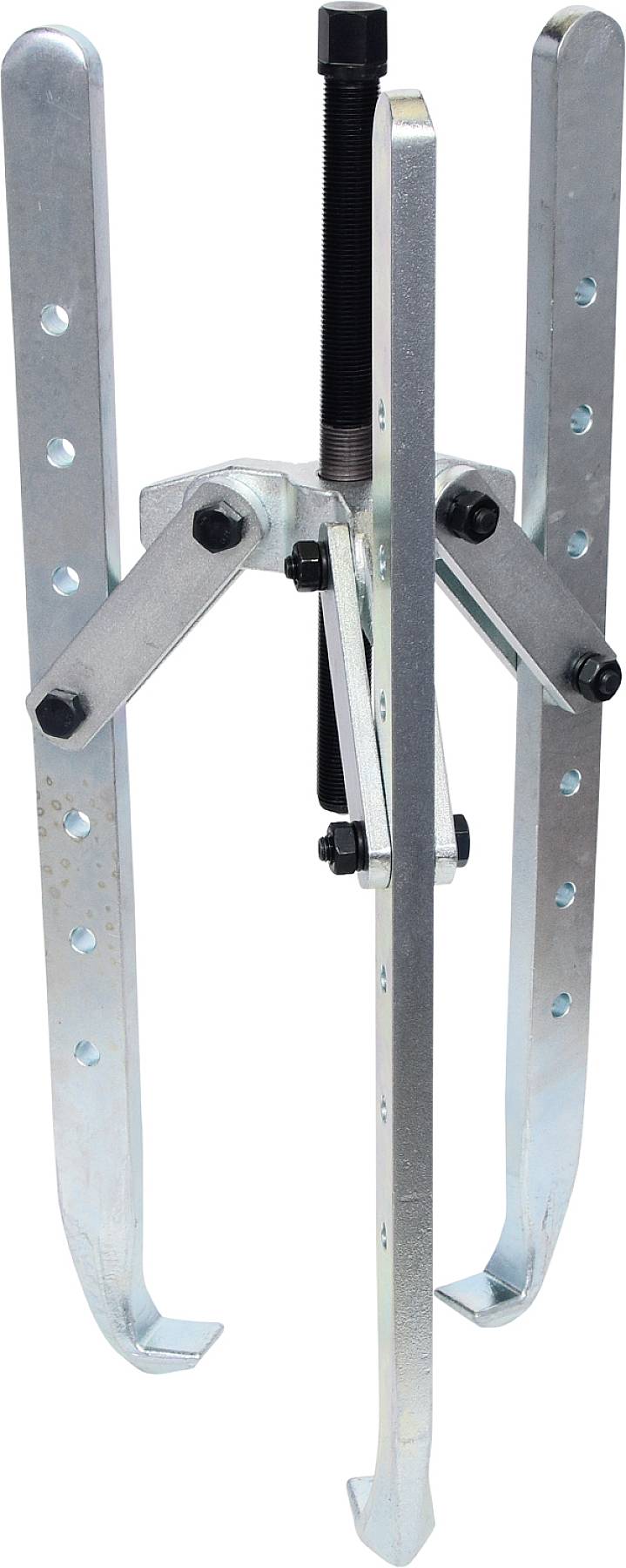

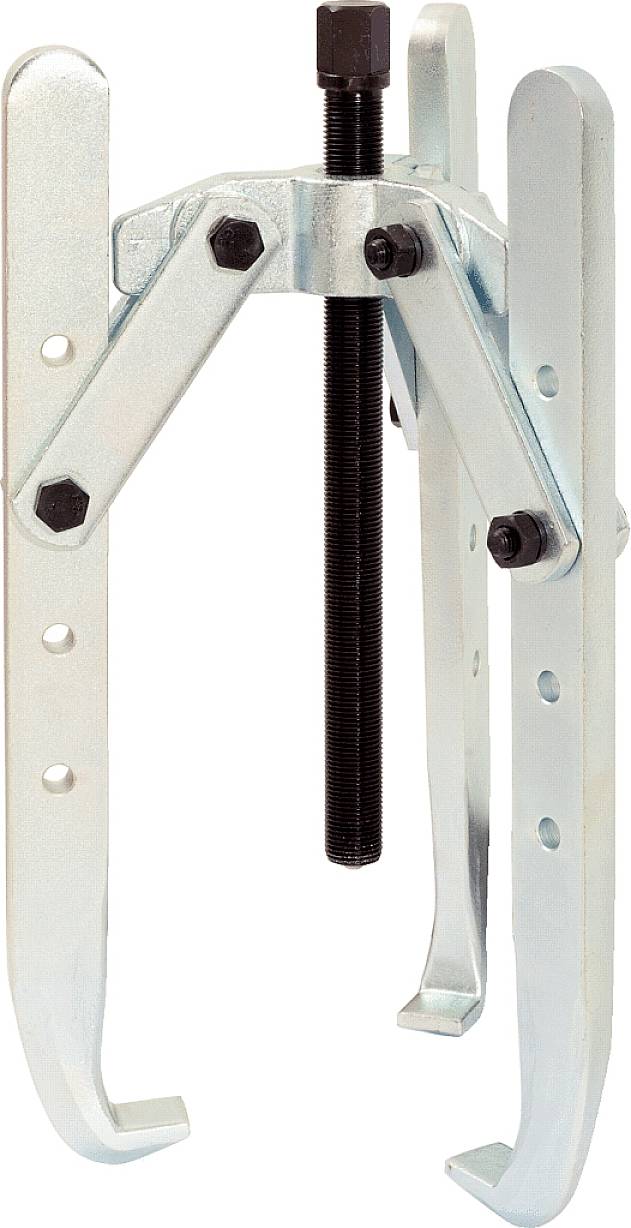

KS Tools 6303608 Puller Clamping range (details) 50 - 500 mm No. of hooks 3
EAN:
Part number:
Item no:
Number
Total (€ 264.71 / piece)
€ 264.71
plus VAT.
Only 3 Piece(s) available
Technical specifications

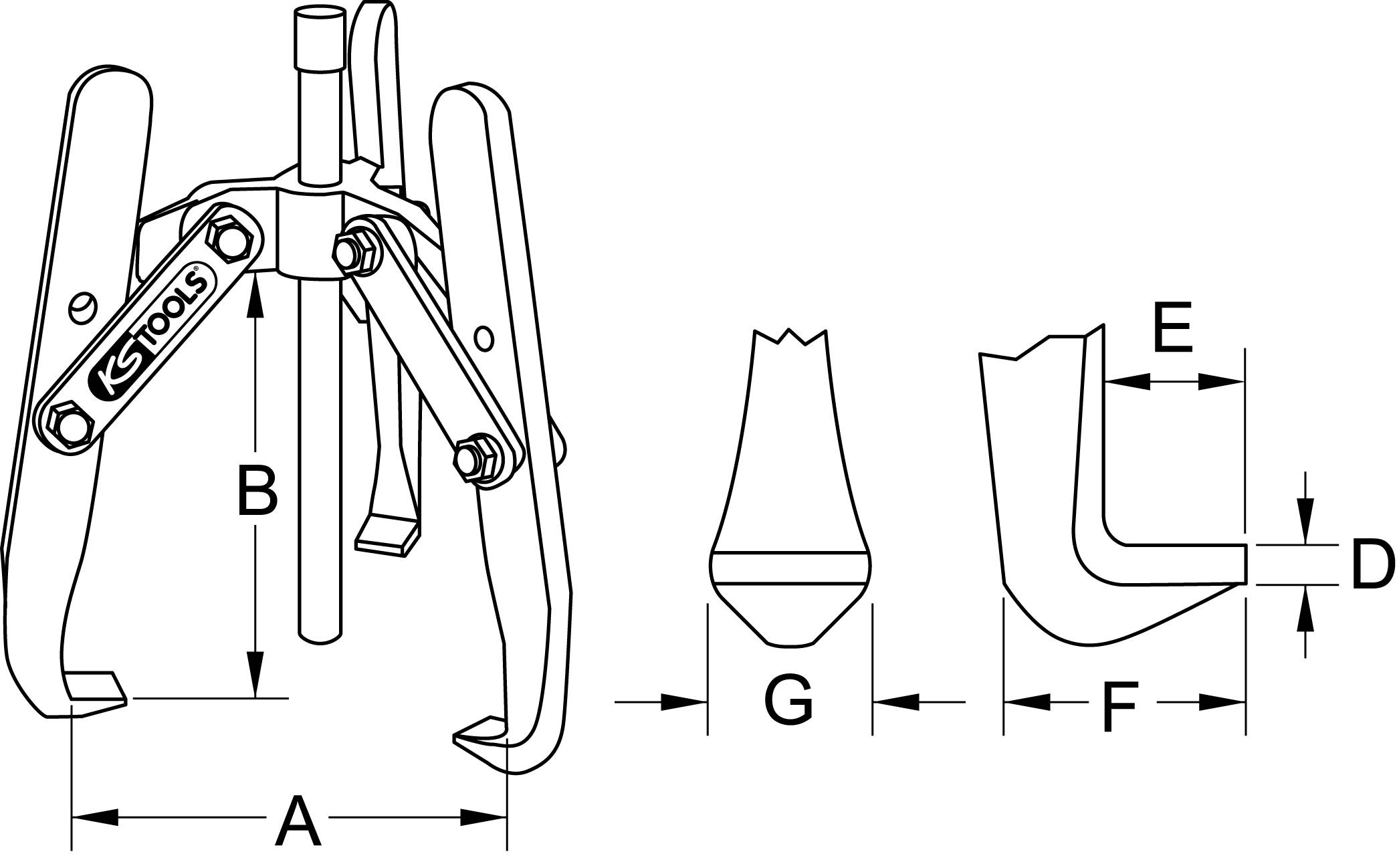

- Pull hook width G: 30 mm
- Pull hook total depth F: 48 mm
- Pull hook height D 5 mm
- Pull hook tip depth E: 25 mm
- Number of pull hooks: With 3 pull-off hooks
- Hexagon drive in mm: 22 mm
- Torque max Nm:220 Nm
- Functional attribute 1: Adjustable clamping depth
- Weight 10000 g
- Material1: Special tool steel
- max. Compressive strength KN: 120.0
- max. Compression force Nm: 220
- max. Pressure force t: 12
- Quick adjustment: No. nein
- Clamping depth B in mm 500 mm
- Span A in mm 50-500 mm
- Span up to [mm]: 500 mm
- Span [mm]: 50 mm
- Spindle size mm: G1/2"x14g x 270
- Variant items : 630.3601
- Clamping range
50 - 500 mm
- Weight
10000 g
- Content
1 pc(s)
- Hooks
3
- Product type
Puller
- Span depth (max.)
500 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695480 KS Tools 6303608 Puller Clamping range (details) 50 - 500 mm No. of hooks 3
Description
The clamping depth of hooks can be adjustedEven load distribution and centered tighteningHydraulic spindle can be retrofitted for G1/2" threadExtremely robust spindle with inductively hardened threadSpecial tool steel
