Buy KS Tools 670.0201 Steering wheel puller Clamping range (details) 90 mm No. of hooks 4

Puller tool with four hooks and a central screw, used for removing bearings or gears in mechanical applications.

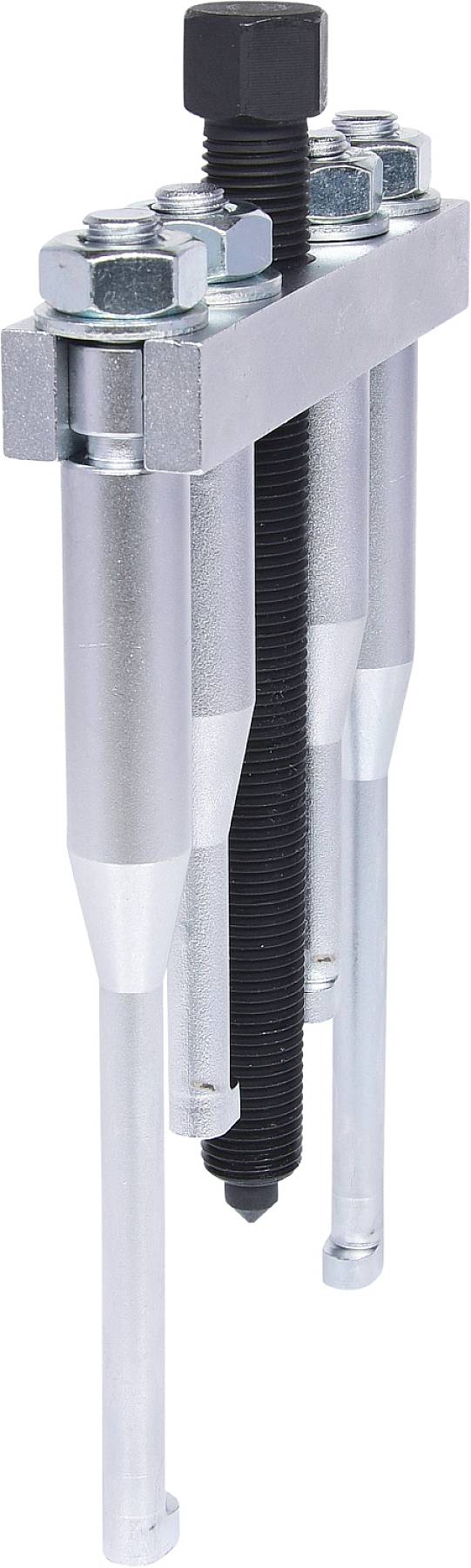

Three-armed puller tool with a central bolt for removing bearings or gears from machinery.

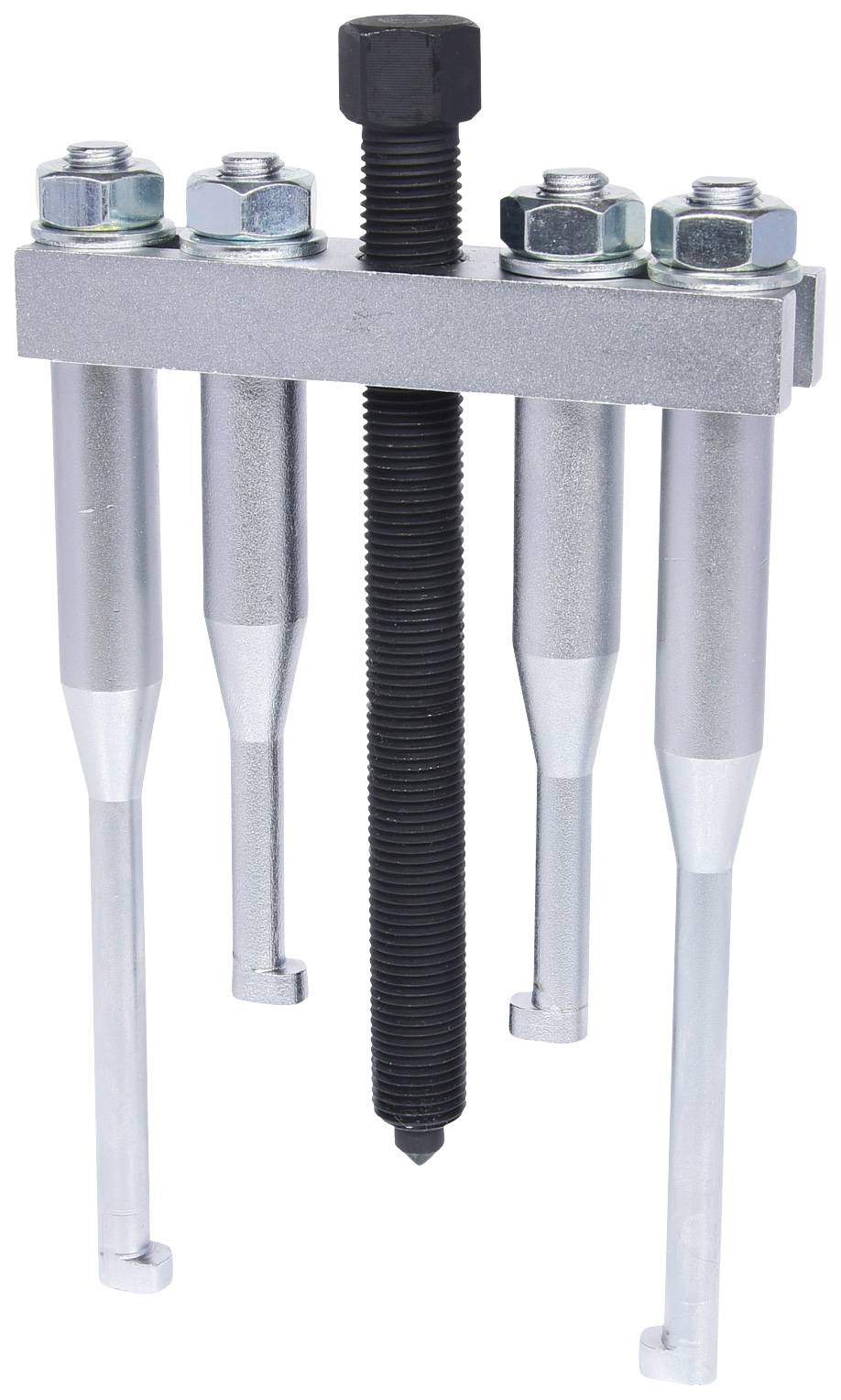

Four-armed puller with screws for dismantling bearings or gears on machines. Placed on a grey background.

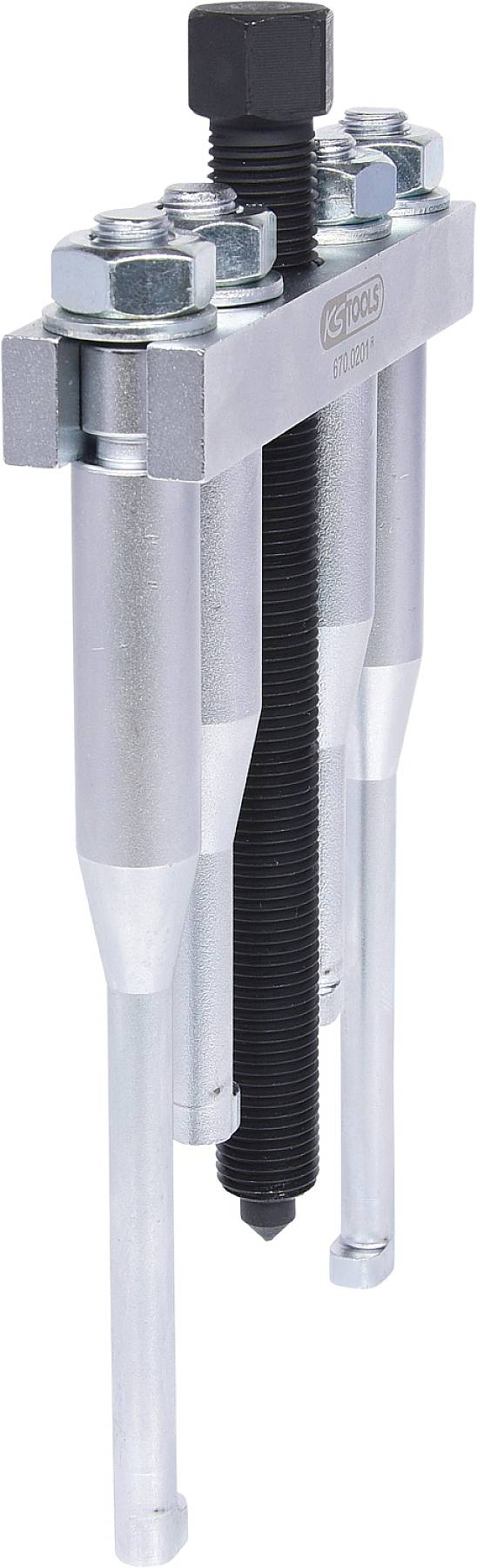

A metal puller tool with two long arms and a central screw, used for removing gears or bearings.

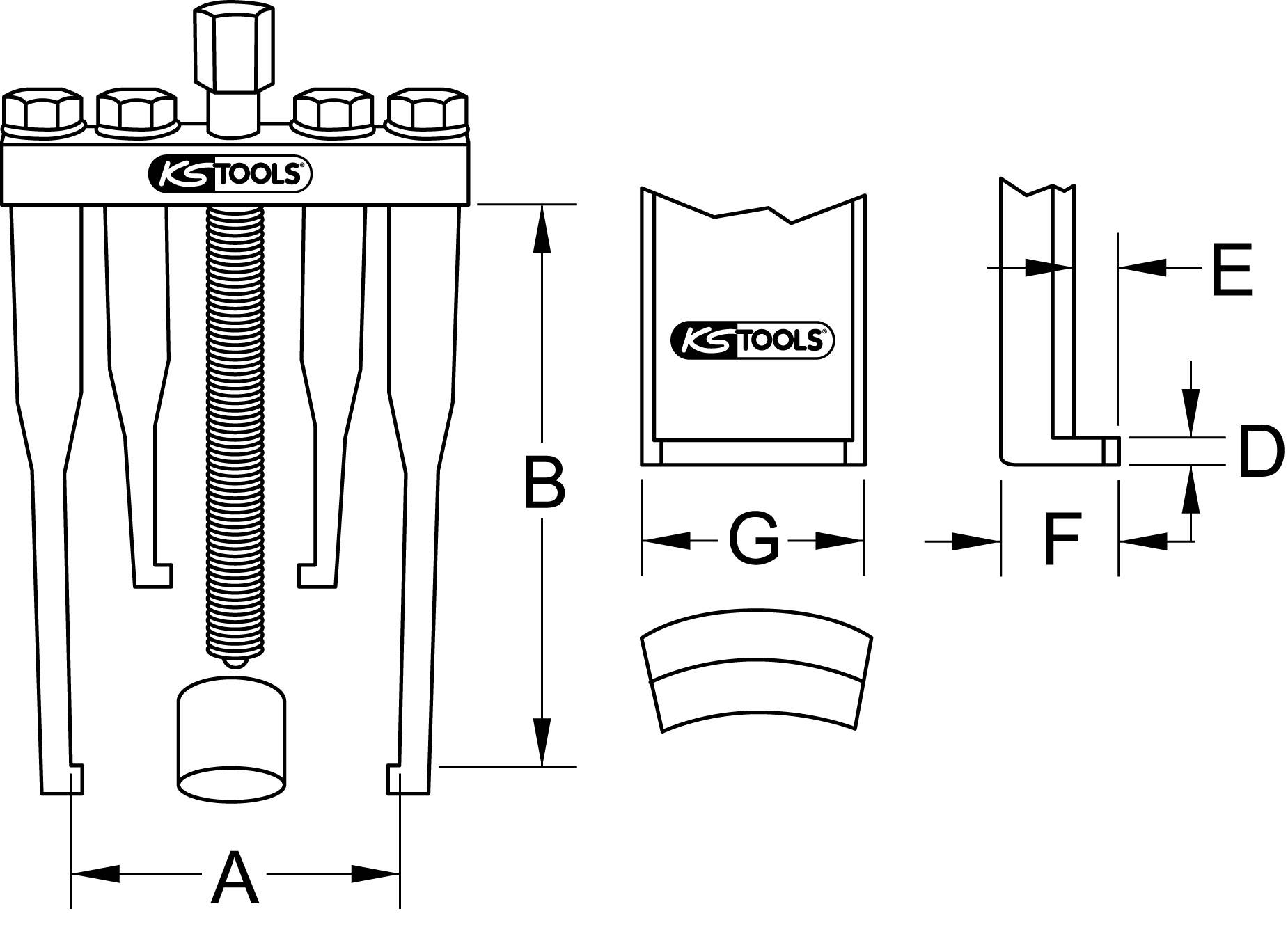

Technical drawing of a puller with screw and dimensions: A, B, D, E, F, G. Front and side views are shown.

1/5

Fast track dispatch on Wed, 7 Oct

8 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 100.83 / piece)

€ 100.83

plus VAT.

Only 8 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Pull hook width G: 7.5 mm
Pull hook total depth F: 11 mm
Pull hook height D 5 mm
Pull hook tip depth E: 3.5 mm
Number of pull hooks: With 4 pull-off hooks
Hexagon drive in mm: 17 mm
Torque max Nm:30 Nm
Weight 900 g
Material1: Special tool steel
max. Compressive strength KN: 25.0
max. Compression force Nm: 30
max. Pressure force t: 2.5
Quick adjustment: No. nein
Clamping depth B in mm 135 mm
Span A in mm 90 mm
Spindle size mm: M14x1.5 x 130

Clamping range: 90 mm

Tension/pressure capacity: 2.5 t

Weight: 900 g

Content: 1 pc(s)

Hooks: 4

Product type: Steering wheel puller

Span width (max.): 90 mm

Span depth (max.): 135 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2695637 KS Tools 670.0201 Steering wheel puller Clamping range (details) 90 mm No. of hooks 4

Description

Suitable for fast, clean and damage-free removal of the steering wheelWith short and long hooks and pressure piece for spindlesCan be used universally through longitudinal grooves in the removal bridgeExtremely robust spindle with inductively hardened threadSpecial tool steel
