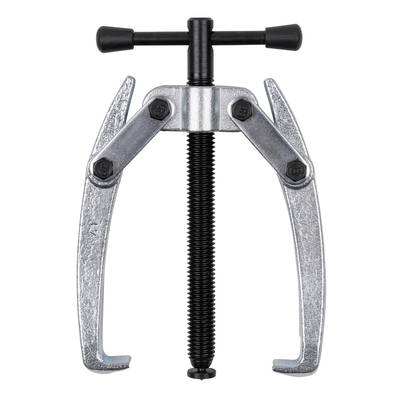

KS Tools 7001166 Battery clip puller Clamping range (details) +10 - +70 mm No. of hooks 2
EAN:
Part number:
Item no:
Number
Total (€ 31.92 / piece)
€ 31.92
plus VAT.
Technical specifications

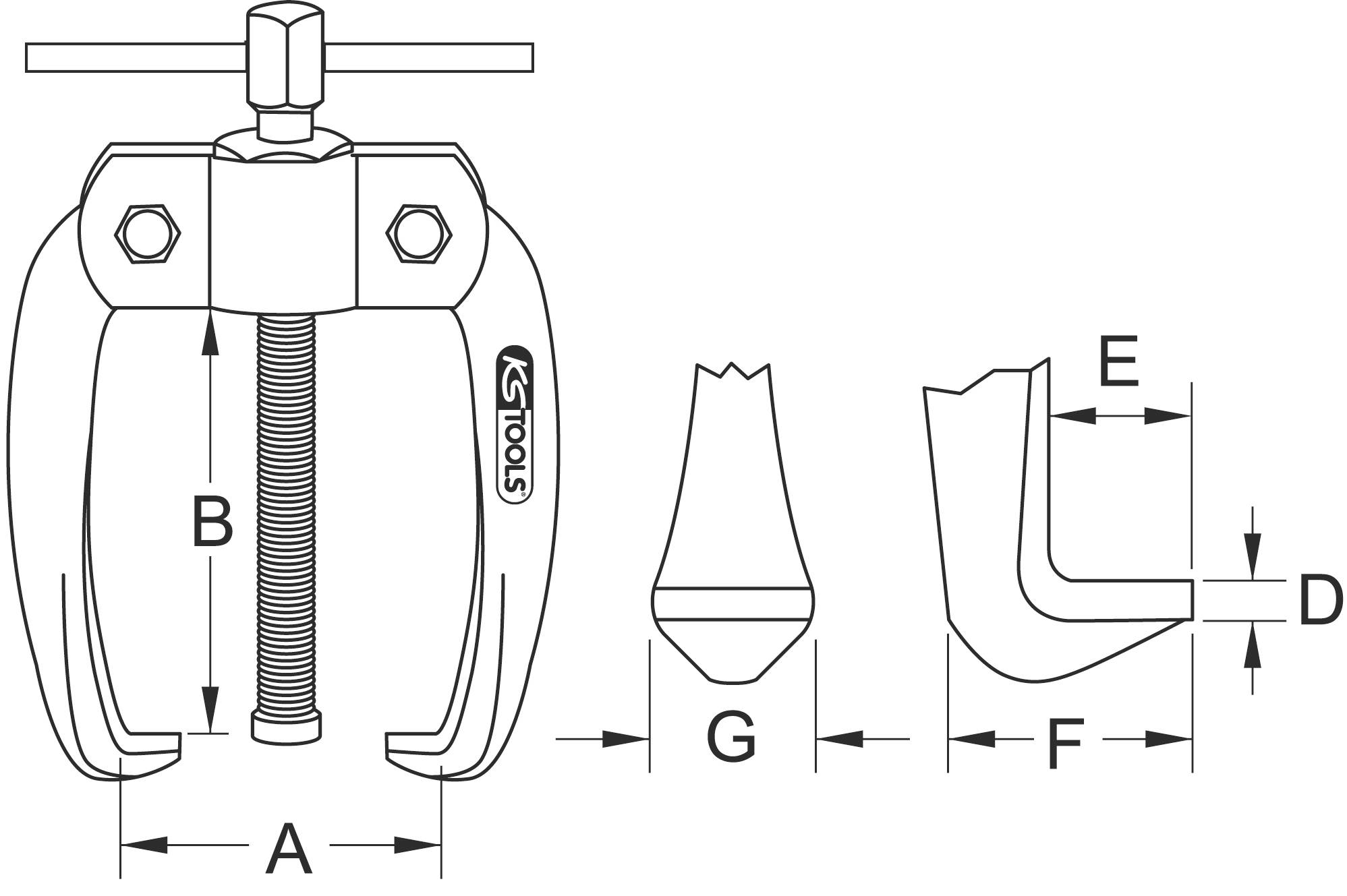

- Pull hook width G: 14.0 mm
- Pull hook total depth F: 16.8 mm
- Pull hook height D 4.0 mm
- Pull hook tip depth E: 9.2 mm
- Number of pull hooks: With 2 pull-off hooks
- Load max. 0.5 t
- Function attribute 1: With knob
- Weight 245 g
- Material1: Special tool steel
- max. Pressure force t: 0.5
- Quick adjustment: No. nein
- Clamping depth B in mm 80 mm
- Span A in mm 10-70 mm
- Span up to [mm]: 70 mm
- Span [mm]: 10 mm
- Spindle size mm M10 x 100
- Variant items : 700.1164
- Clamping range
+10 - +70 mm
- Tension/pressure capacity
0.5 t
- Weight
245 g
- Content
1 pc(s)
- Hooks
2
- Product type
Battery clip puller
- Span width (max.)
70 mm
- Span depth (max.)
80 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695647 KS Tools 7001166 Battery clip puller Clamping range (details) +10 - +70 mm No. of hooks 2
Description

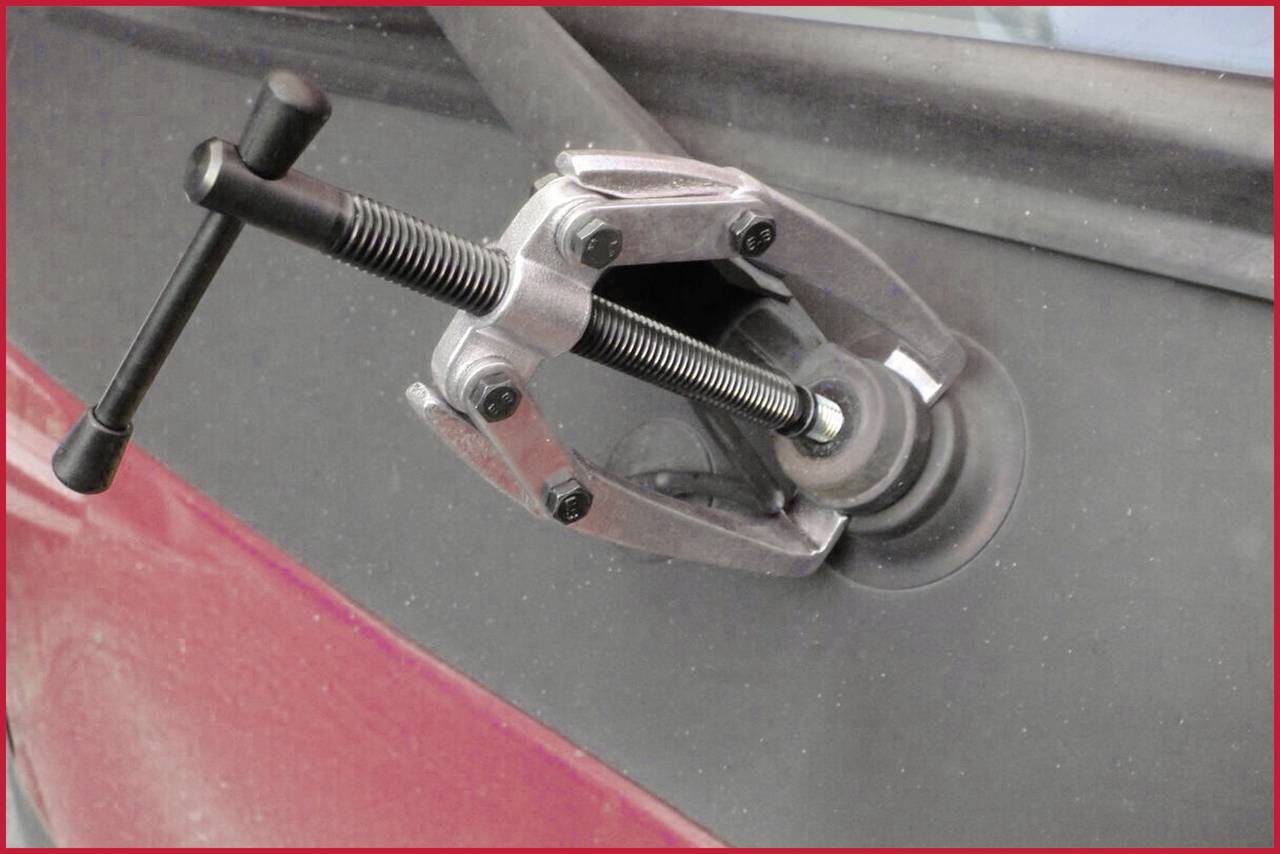

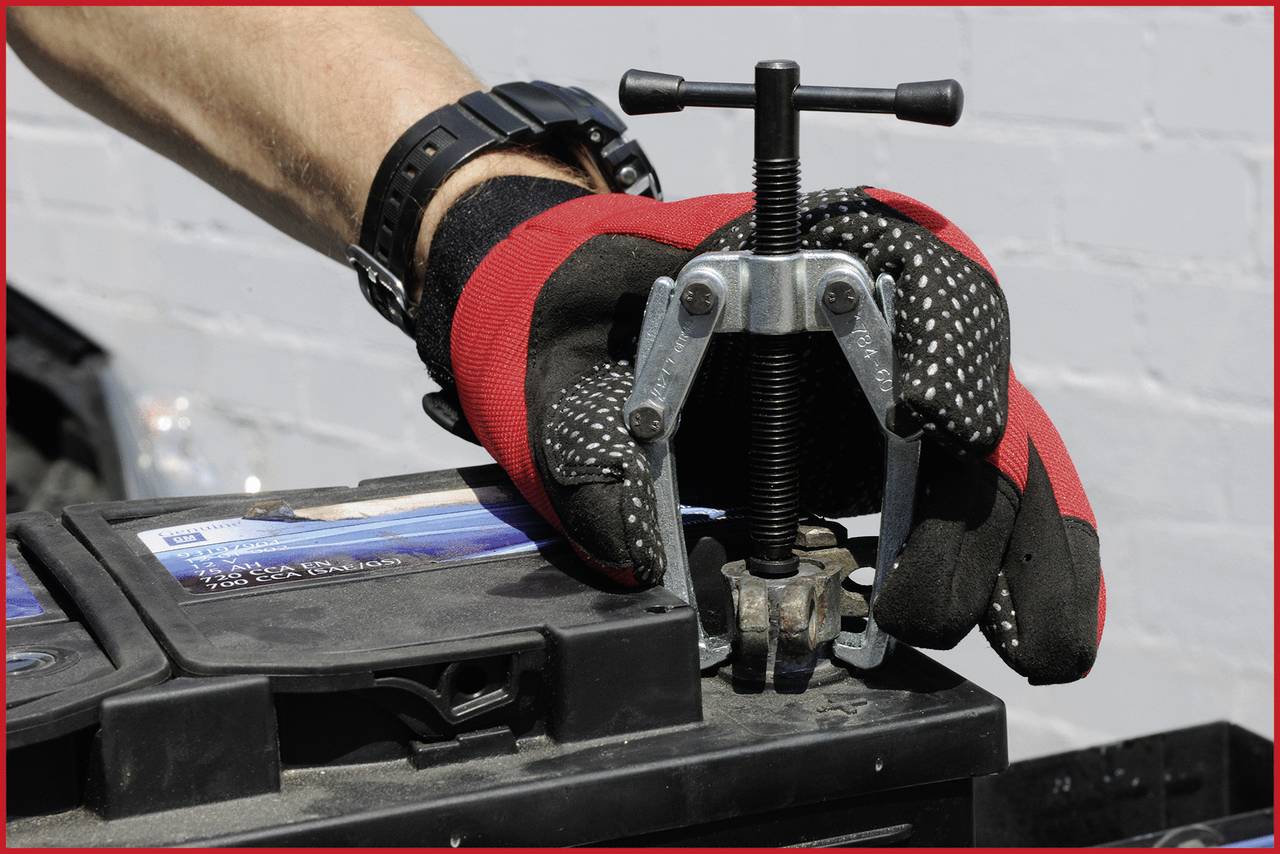

2-hookIdeal suitable for pulling off the battery terminal clamp and wiper armsWith knobExtremely robust spindle with inductively hardened threadscrewSturdy hookSpecial tool steel
