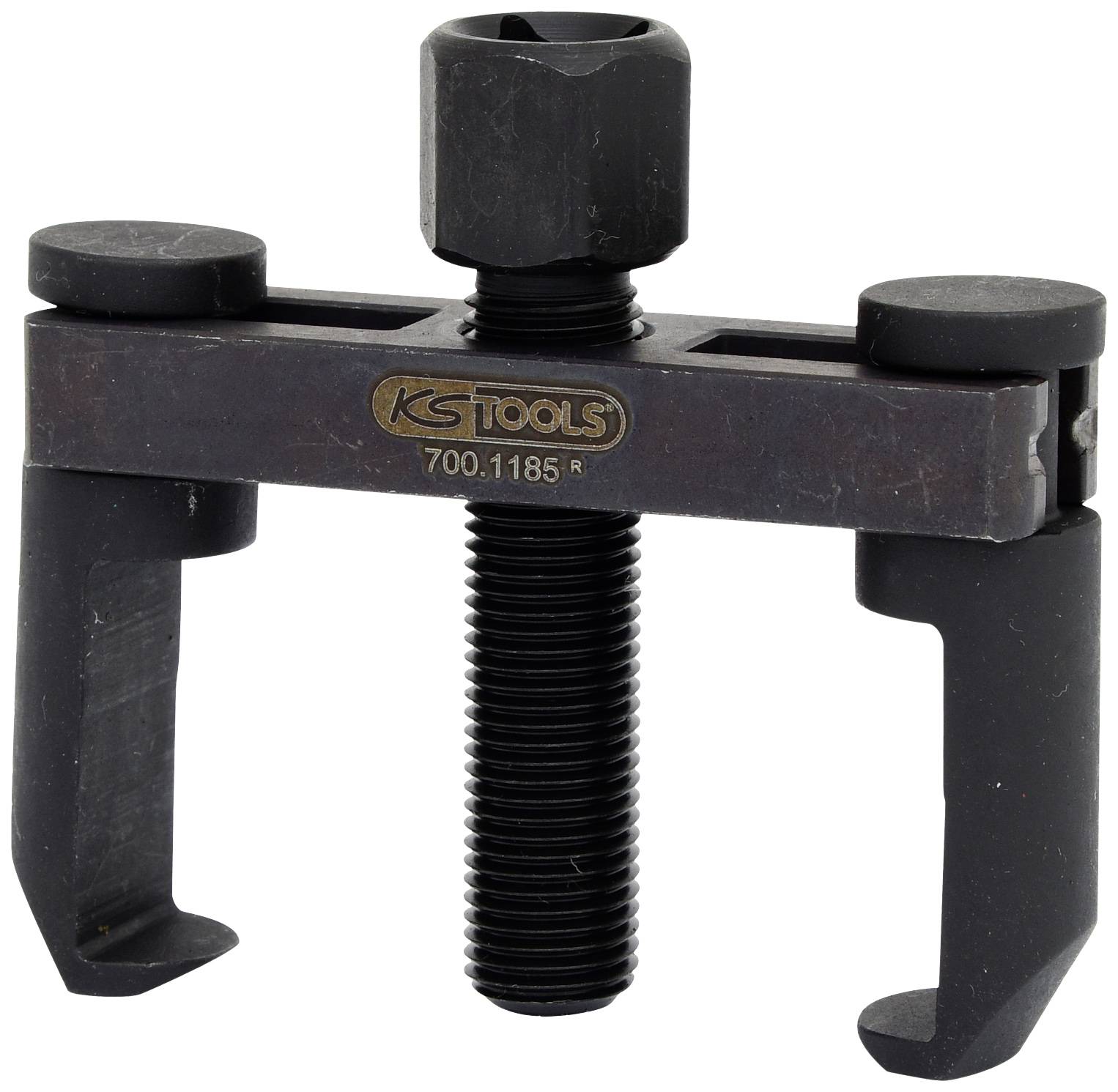

KS Tools 700.1185 Screen wiper arm puller Clamping range (details) +10 - +60 mm No. of hooks 2
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 1.06
€ 23.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 24.36 / piece)
€ 24.36
plus VAT.
Technical specifications
- Pull hook width G: 15 mm
- Pull hook total depth F: 14 mm
- Pull hook height D 3 mm
- Pull hook tip depth E: 5 mm
- Number of pull hooks: With 2 pull-off hooks
- Hexagon drive in mm: 17 mm
- Torque max Nm:30 Nm
- Weight 1000 g
- Square wrench drive in inches: 3/8"
- Material1: Special tool steel
- max. Pressure force t: 2
- Quick adjustment: No. nein
- Clamping depth B in mm 34 mm
- Span A in mm 10-60 mm
- Span up to [mm]: 60 mm
- Span [mm]: 10 mm
- Spindle size mm: M12x1.25 x 34
- Square drive in inches: 3/8"
- Clamping range
+10 - +60 mm
- Tension/pressure capacity
2 t
- Weight
1000 g
- Content
1 pc(s)
- Hooks
2
- Product type
Screen wiper arm puller
- Span width (max.)
60 mm
- Span depth (max.)
34 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695655 KS Tools 700.1185 Screen wiper arm puller Clamping range (details) +10 - +60 mm No. of hooks 2
Description
2-hookIdeal suitable for gentle removal of the windscreen wiper armsHollow puller spindle for damage-free support on the wiper arm shaft with washing nozzleExtremely robust spindle with inductively hardened threadPrevents damage to the body and the wiper armSquare socket drive according to DIN 3120 / ISO 1174Special tool steelApplication areas: Especially for VAG rear windscreen wipers with integrated washing nozzle
