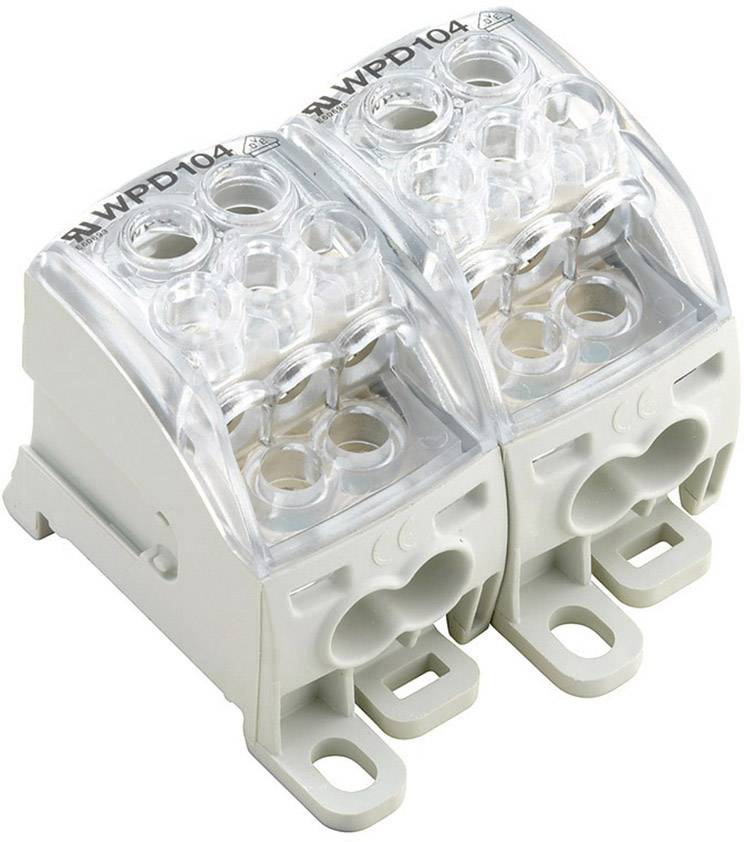

Image similar

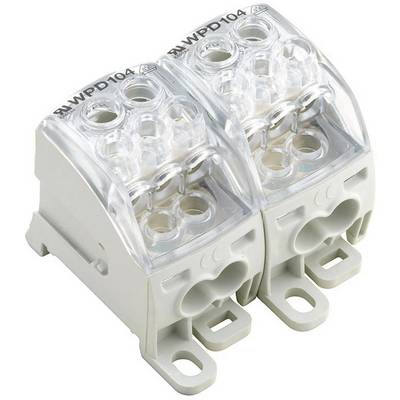

Image similar
Weidmüller 1562150000 Distribution block Screws Grey, Transparent 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution block
Connection
Screws
Cross section (flexible) (max.)
25 mm²
Cross section (inflexible) (max.)
25 mm²
Nominal current - rounded value
101 A
Datasheet (PDF)
Number
Total (€ 48.73 / piece)
€ 48.73
plus VAT.
14-day return policy included
Technical specifications
- Product type
Distribution block
- Connection
Screws
- Cross section (flexible) (min.)
10 mm²
- Cross section (flexible) (max.)
25 mm²
- Cross section (inflexible) (min.)
10 mm²
- Cross section (inflexible) (max.)
25 mm²
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Grey
Transparent
- Nominal current
101 A
- Nominal current - rounded value
101 A
- Nominal voltage
1000 V
- Manufacturer part #
1562150000
- Content
1 pc(s)
- Type
WPD 204 2X25/4X16+6X10 2XGY
- Dim
(L x W x H) 49 x 63 x 68 mm
- Width
63 mm
- Height
68 mm
- Length
49 mm
- RoHS-compliant
Yes
Direct mounting
Grey
63
68 mm
49 mm
1000 V
-50-130 °C
V0
FALSE
Screw connection
Other
1
2
TRUE
Thermoplastic
164 A
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1669197 Weidmüller 1562150000 Distribution block Screws Grey, Transparent 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1669197 Weidmüller 1562150000 Distribution block Screws Grey, Transparent 1 pc(s)
