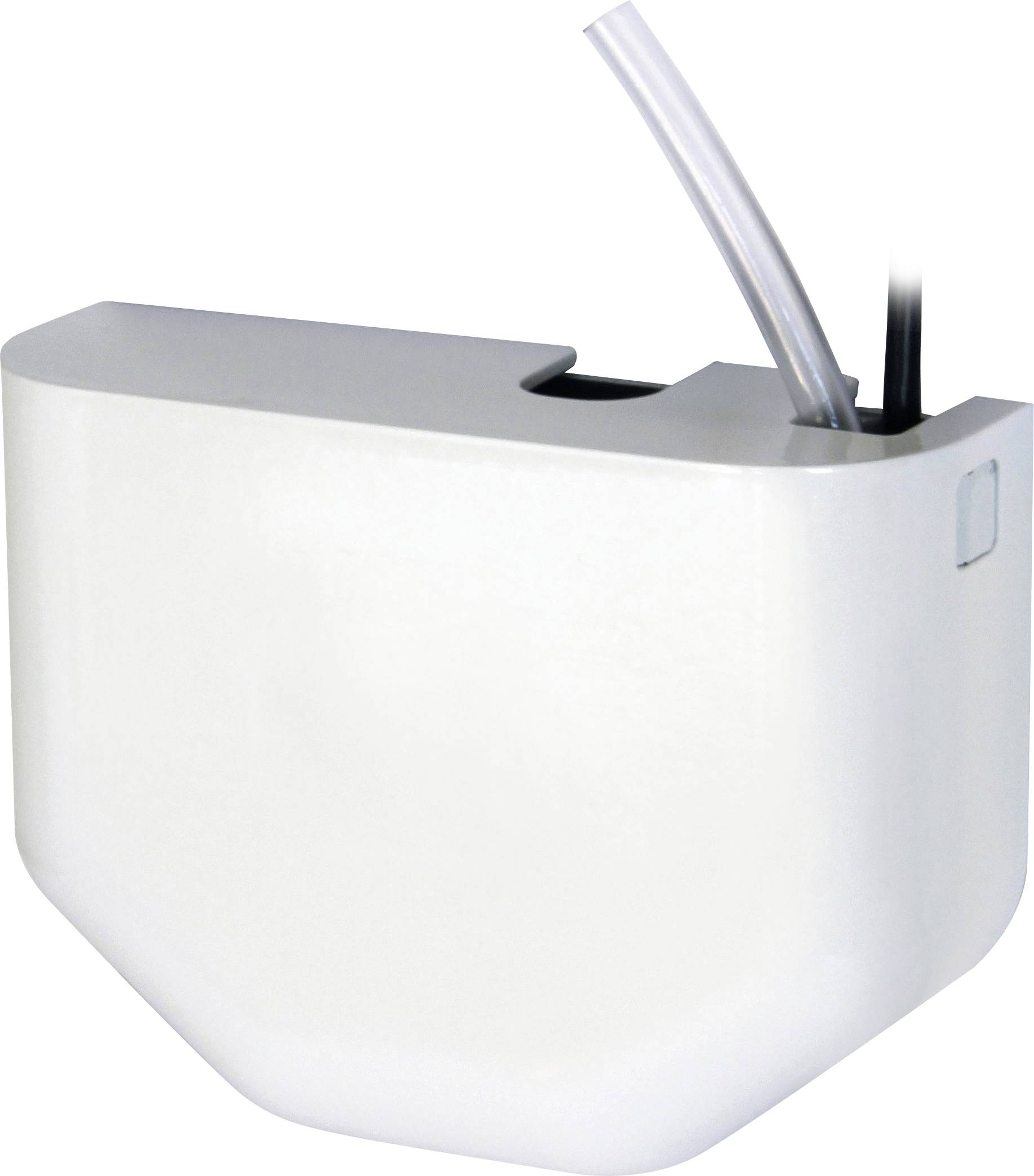

Neotech Easy Condensate 2.0 Condensate pump 12 l/h 22 m 230 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Neoptech EasyCondense 10H – complete system for gas thermal systems up to 34kW
- Extremely quiet operation; 21 dB(A) noise level; compact and discreet design; mounted directly under air conditioner
Technical specifications
- Product type
Condensate pump
- Type
System for gas thermal up to 34 kW (heating)
- Operating voltage
230 V
- Max. delivery head
22 m
- Max. feed rate
12 l/h
- Pressure connection
9 mm
- Max. cable length
2 m
- Weight
1.2 kg
IP20
Documents & Downloads
Datasheet
Datasheet 3734103 Neotech Easy Condensate 2.0 Condensate pump 12 l/h 22 m 230 V
User & Safety Instructions
User & Safety Instructions 3734103 Neotech Easy Condensate 2.0 Condensate pump 12 l/h 22 m 230 V
Description
Through its inconspicuous design and the especially quiet operation the Neotech EasyCondense mini-condenser system is the ideal solution for the application in inhabited rooms. The compact system can be mounted directly below the air conditioner. Installation is fast due to the design as a complete system. Supplied ready for use including a connection cable. The built-in mini condensation pump ensures reliable collection and dissipation of condensate. The system is available in two versions: EasyCondense-C for air conditioning systems up to 15kW and EasyCondense-H for gas thermae up to 34 kW.
This text is machine translated.
This text is machine translated.
Features
- 230V, 50Hz; with reservoir; alarm switch; with 2m supply and signal cable; for mounting below the thermal bath
Scope of delivery
- Drain hose 6m x 0.9mm ID
Hints
Max. flow 11 l/h
Max. Delivery height (H max.): 19m
Voltage: Input 230V/50Hz
Nominal current 30 mA max.
Protection class: IP20
max. temperature 50°C
Alarm contact NO/NC: 5A max.
PH-value condensate: 7 (neutral)
Cable length 2.0m with alarm cable
