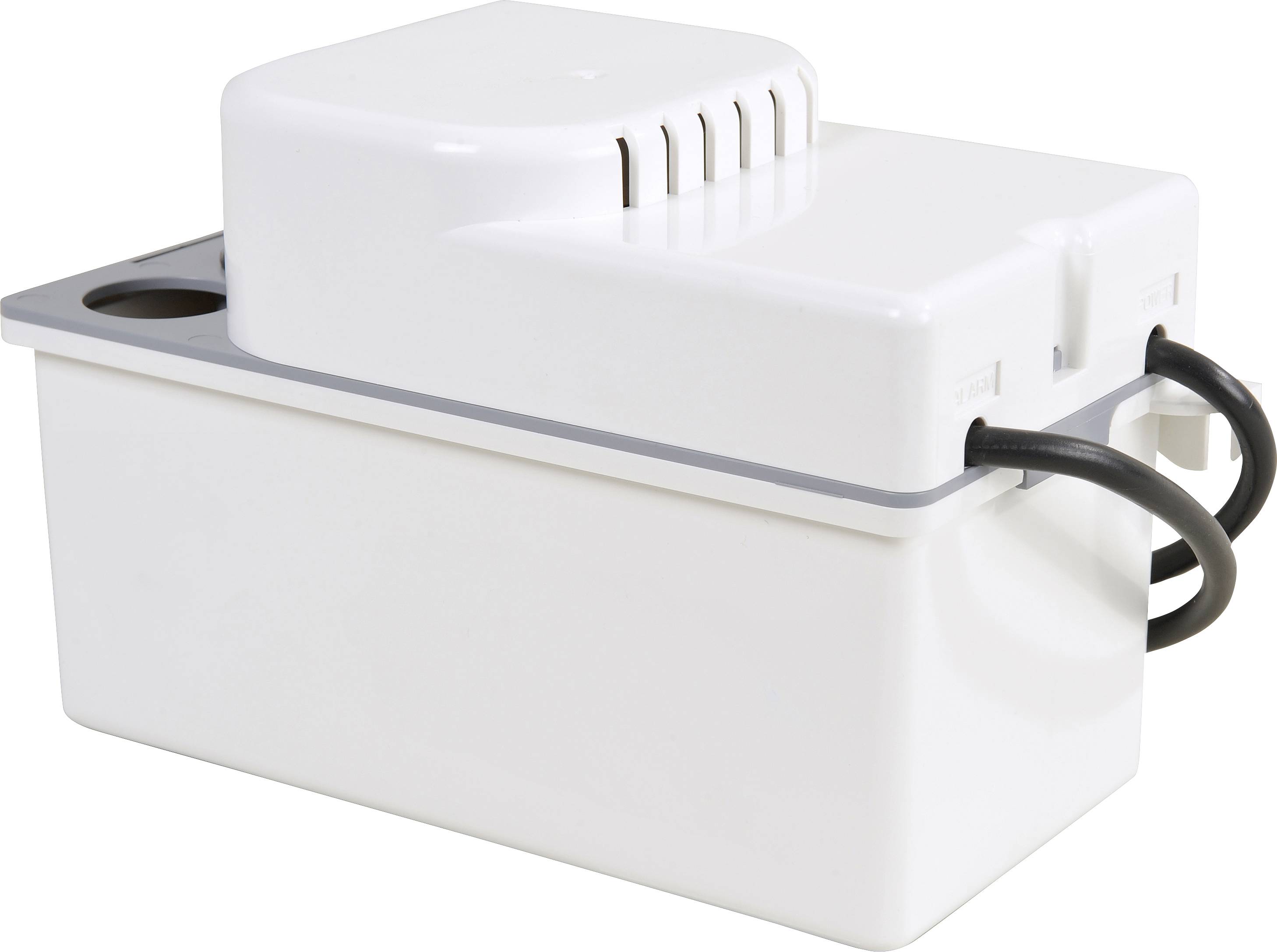

Neotech Neotech 330 Condensate pump PG connector 370 l/h 4.6 m 230 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Neotech 330 condensate pump - for air conditioning, refrigeration and freeze counters
- Very compact design; Automatic operation. Start-, stop, safety switch;motor with thermal protection; 3 supply openings; rotating pump part; Very quiet operation
Technical specifications
- Nominal current max. 0.75 A
- Noise level 44 dB(A)
- Tank volume 1.25 l
- Product type
Condensate pump
- Features
PG connector
- Operating voltage
230 V
- Max. delivery head
4.6 m
- Max. feed rate
370 l/h
- Pressure connection
8 mm
- Overload protection
Yes
- Max. cable length
1.8 m
- Length
225 mm
- Width
104 mm
- Height
133 mm
- Dim
(L x W x H) 225 x 104 x 133 mm
- Weight
2.2 kg
IP20
Documents & Downloads
Datasheet
Datasheet 3733880 Neotech Neotech 330 Condensate pump PG connector 370 l/h 4.6 m 230 V
User & Safety Instructions
User & Safety Instructions 3733880 Neotech Neotech 330 Condensate pump PG connector 370 l/h 4.6 m 230 V
Description
Condensate pump for fully automatic extraction of condensate from oil-condensing boilers, gas-operated heating devices and air-conditioning units where a discharge by gravity is not possible. Suitable For condensate up to a pH of 2.8. With potential-free contact for safety shutdown or alarm signal.
This text is machine translated.
This text is machine translated.
Features
- 230 volt, 50 Hz; with alarm switch; 2m connection cable with safety plug; incl. 6m vinyl hose 9x12mm
Scope of delivery
- Discharge hose 6 m x 8 mm ID
- Feeder adapter for 3/4" hoses / DN50 HT tube max.
- Self-adhesive foam rubber dampers
Hints
Maximum flow 370 l/h
Max. Delivery height (H max.): 4.6m
Voltage: Input 230V/50Hz
Nominal current: 0.75A
Protection class IP 20
max. temperature 50°C
Tank volume: 1.1l
Cable length 2m with connector
Pressure connection: 3/8" with hose nozzle For hose 8mm ID incl. check valve
