Buy Neotech Neotech 360-6MT Condensate pump PG connector 360 l/h 5.2 m 230 V

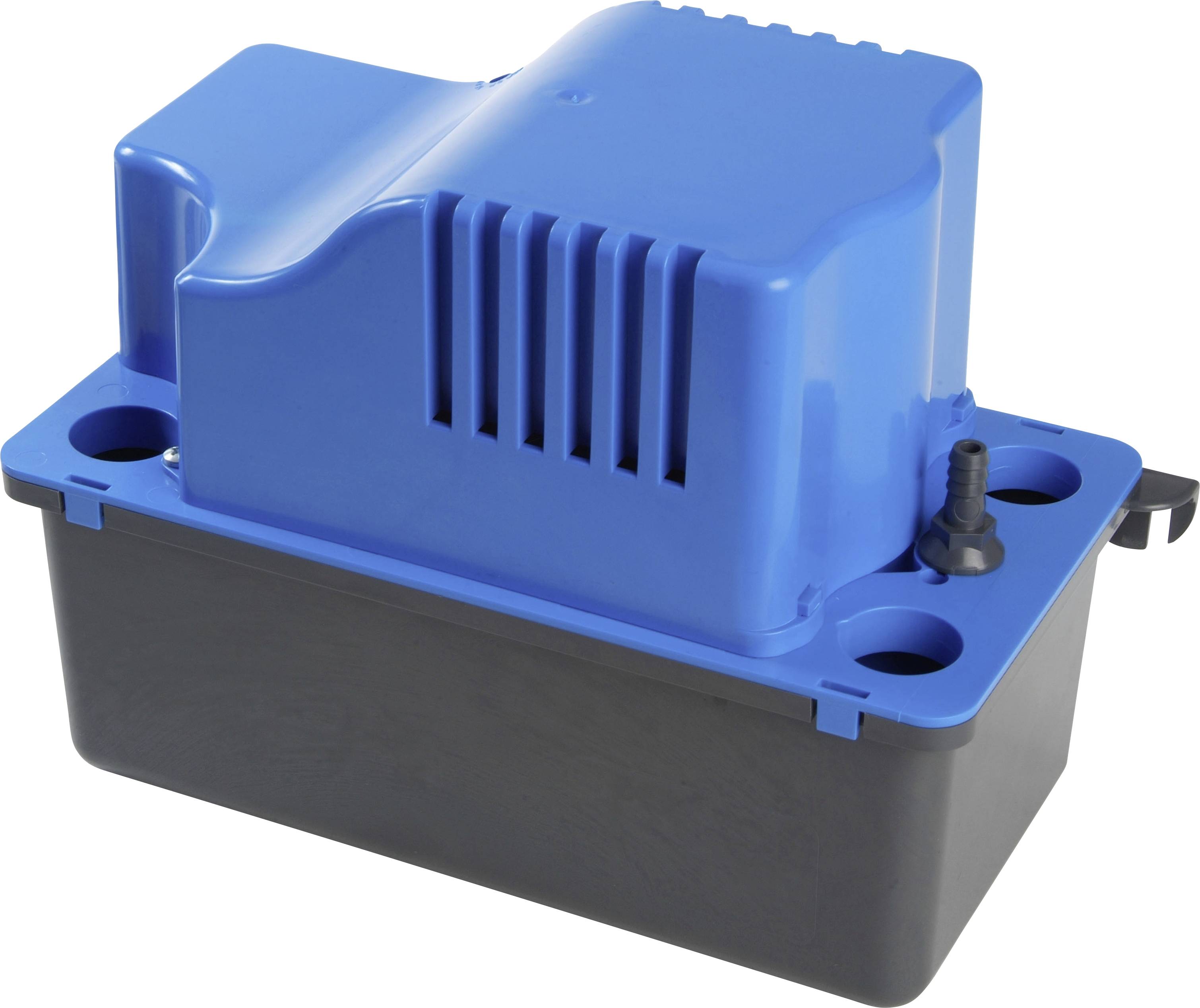

A blue and black water pump, designed for removing condensate, with vents and tubing connection visible on top.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Neotech 360-6MT condensate pump - For condensing boilers and air conditioning systems

Very compact design; Automatic operation. Start-, Stop, Safety switch; Motor with thermal protection; 3 supply openings; Rotatable pump part; very quiet during operation

Technical specifications

Tank volume 2 ,2 l
Noise level 44 dB(A)
Alarm contact: Changer max. 5A 250V
Nominal current max. 0.6 A

Product type: Condensate pump

Features: PG connector

Operating voltage: 230 V

Max. delivery head: 5.2 m

Max. feed rate: 360 l/h

Hose connector: 25 - 40 mm

Pressure connection: 9 mm

Max. cable length: 2 m

Length: 285 mm

Width: 140 mm

Height: 198 mm

Dim: (L x W x H) 285 x 140 x 198 mm

Weight: 2.4 kg

: IP20

Documents & Downloads

Datasheet

Datasheet 3733449 Neotech Neotech 360-6MT Condensate pump PG connector 360 l/h 5.2 m 230 V

User & Safety Instructions

User & Safety Instructions 3733449 Neotech Neotech 360-6MT Condensate pump PG connector 360 l/h 5.2 m 230 V

Description

Condensate pump for fully automatic extraction of condensate. The Neotech 360 is the most reliable and easiest pump to install on the market to dispose of condensate from air conditioners, large air dehumidifiers, oil condensing boilers, gas-operated heating systems and cold counters. The duty cycle is controlled by a reliable, simple signal from the level switches. This guarantees high reliability, less running noise and a long life cycle. For a simple and quick installation, the alarm contact can be used either as closer or opener.
Suitable For condensate up to a pH of 2.8. With potential-free contact for safety shutdown or alarm signal.

This text is machine translated.
