NetAlly LinkRunner AT 3000 Kit Cable, network and Wi-Fi tester Compatible with: 10 Gbps
EAN:
Part number:
Item no:
Number
Total (€ 3,142.02 / piece)
€ 3,142.02
plus VAT.
LinkRunner AT 3000 kit
Technical specifications
- Product type: PoE tester
- Country of origin: United States
- Product type
Cable, network and Wi-Fi tester
- Compatible with
10 Gbps
- Factory colour
Green
- Rechargeable battery technology
Li-ion
- Depth
42 mm
- Height
196 mm
- Width
102 mm
- Screen size diagonal (inches)
5 inch
- Battery capacity
9750 mAh
- Battery voltage
3.63 V
- Weight
480 g
- UKCA
not relevant
- RJ-45 ports quantity
1
- Operating temperature (T-T)
0 - 45 °C
- Easy to use
yes
- Backlight display
yes
- Charging time
180 min
- Storage pouch
yes
- Battery charger included
yes
- On/off switch
yes
- Operating relative humidity (H-H)
75 - 90 %
- Storage temperature (T-T)
-20 - 60 °C
- Battery capacity
36.39 Wh
- Built-in display
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3629764 NetAlly LinkRunner AT 3000 Kit Cable, network and Wi-Fi tester Compatible with: 10 Gbps
Description
The kit includes the LinkRunner AT 3000 as well as a cable-and network qualifier including PoE test function.
The LinkRunner AT 3000 enables fast, comprehensive validation and targeted troubleshooting of copper and FO Ethernet networks. It supports first-level technicians when analyzing device connections and changes through automatic testing, checks link speeds from 10 Mbps to 10 Gbps, PoE, switch port, and VLAN, and provides advanced testing for twisted-pair cables, 90-W PoE, fiber-optic signal strength, and SFP diagnostics.
This text is machine translated.
The LinkRunner AT 3000 enables fast, comprehensive validation and targeted troubleshooting of copper and FO Ethernet networks. It supports first-level technicians when analyzing device connections and changes through automatic testing, checks link speeds from 10 Mbps to 10 Gbps, PoE, switch port, and VLAN, and provides advanced testing for twisted-pair cables, 90-W PoE, fiber-optic signal strength, and SFP diagnostics.
This text is machine translated.

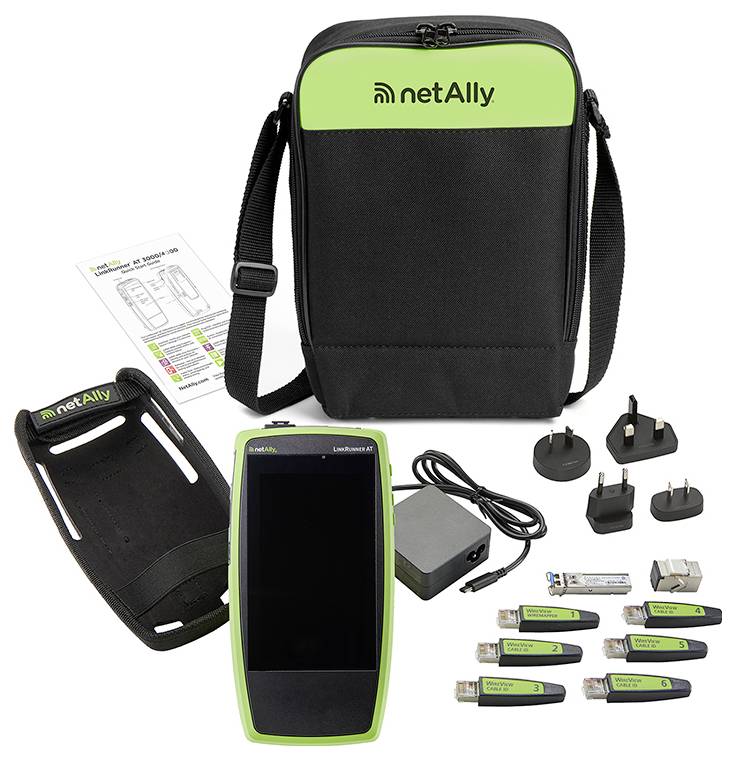

Scope of delivery
- LinkRunner AT 3000 tester
- 850-nm multimode SFP with 1 Gbps
- Power supply with regional mains plugs
- WireView cable IDs #1–6
- RJ-45 coupling
- Holster
- Quick start guide
- Small soft case
