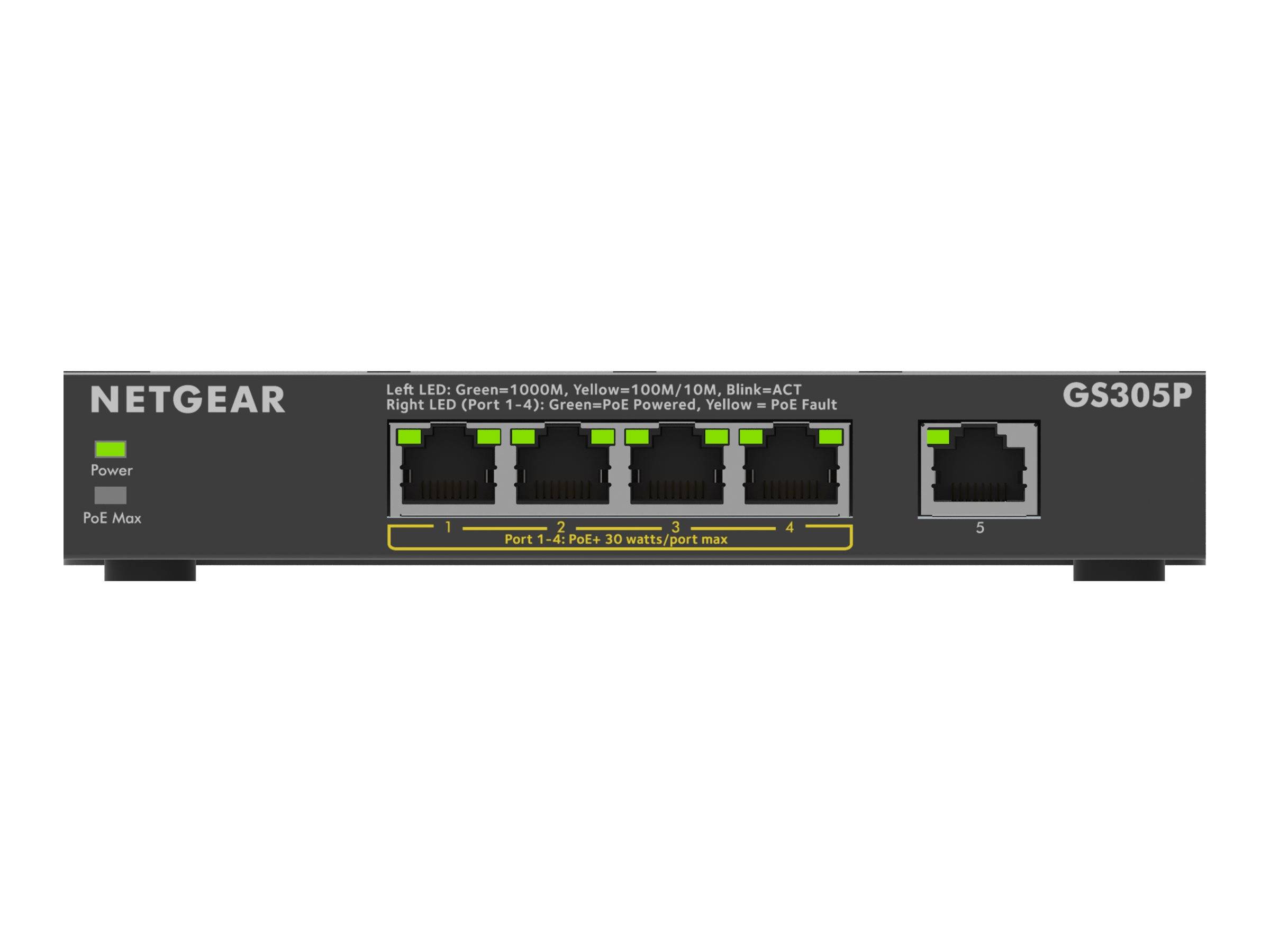

NETGEAR 300 Series GS305P - Version 3 - Switch - SOHO - unmanaged - 5 x 10/100/1000 (4 PoE+)
EAN:
Part number:
Item no:
NETGEAR 300 Series GS305P - Version 3 - Switch - SOHO - unmanaged - 5 x 10/100/1000 (4 PoE+)
Highlights & Details
- Designed for small and home office environments
- Five ports, four of which support PoE+ for power and device connectivity
- Supports operating temperatures from 0°C to 40°C.
- MAC address table with 2K entries for network traffic management
- Compact desktop form factor for easy placement in any work area
Technical specifications
- Desktop, wall mountable - PoE+ (63 W)
- Product type
Network switch
- LAN transfer rate
1000 MBit/s
- Transfer rate
10 GBit/s
- Working principle
Unmanaged switch
- Ethernet ports
5
- IEEE 802.3af PoE
4
- PoE ports
4
- 10/100/1000 Mbps ports
5 x
- Auto-uplink at each port
Yes
- Jumbo frames
Yes
- MAC addresses
2000
- Weight
1270 g
- Width
15.8 cm
- Height
2.7 cm
- Depth
10.1 cm
- Type
6,06E+11
- Interfaces
RJ45
- Factory colour
Multicolour
- Operating voltage
54 V
- Max. ambient temperature
40 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3740203 NETGEAR 300 Series GS305P - Version 3 - Switch - SOHO - unmanaged - 5 x 10/100/1000 (4 PoE+)
Description
The GS305P has five ports, including four 10/100/1000 ports that support PoE+, enabling connectivity to multiple devices while providing power. With a PoE budget of 63 W, this switch distributes the power to the connected devices so that no additional power sources need to be installed. With a temperature range from 0°C to 40°C this switch is adaptable and reliable in various environments. Through the support of Jumbo frames with up to 9216 bytes the switch improves the efficiency of the data transmission and is thus suitable for the transmission of large files in a network. The desktop form factor enables easy integration into any workspace and ensures that network solutions are accessible without taking up much space.
This text is machine translated.
This text is machine translated.
Features
- NETGEAR 300 Series GS305P - Version 3 - Switch - SOHO - 5 connectors - unmanaged
- Device type : switch - 5 connections - unmanaged
- Sub-type : Gigabit Ethernet
- Ports : 5 x 10/100/1000 (4 PoE+)
- Power over Ethernet (PoE) : PoE+
- PoE budget : 63 W.
- Performance : Bandwidth: 10 Gbps
- Latency 2.4 µs
- Capacity : Packed buffer size: 128 KB
- Size of the MAC address table : 2000 entries
- Jumbo frame support : 9216 bytes
- Features : SOHO, QoS, without fans, metal enclosure, WRR, Scan mechanism per device, auto uplink (auto MDI/MDI-X), auto Power down, cos, DiffServ support
- Product certifications : IEEE 802.3az, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3i, IEEE 802.3x
- Power supply 54 V/DC, 1.25 A
- Dimensions (width x depth x height): 15.8 cm x 10.1 cm x 2.7 cm
- Weight 400 g
- Localization : Europe, Great Britain
