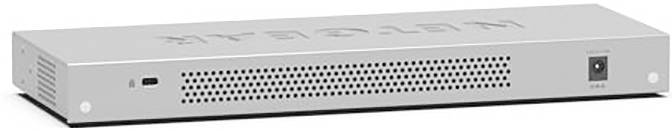

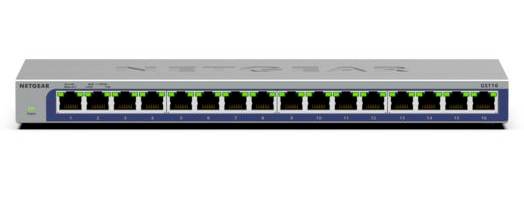

NETGEAR GS116-300EUS GS116v3 Network RJ45 switch 32 Gbit/s
EAN:
Part number:
Item no:
NETGEAR GS116 unmanaged L2 gigabit Ethernet (10/100/1000) black
Highlights & Details
- 16 ports for flexible network expansion
- Silent, fan-less operation for quiet environments
- Energy-efficient Ethernet technology for reduced power consumption
- Conforms to numerous safety and operating standards
- Robust performance with a bandwidth of 32 Gbit/s.
Technical specifications
- Product type
Network RJ45 switch
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
- Transfer rate
32 Gbit/s
- Working principle
Unmanaged switch
- 10/100/1000 Mbps ports
16 x
- Jumbo frames
Yes
- Weight
890 g
- Width
286 mm
- Height
27 mm
- Depth
102 mm
- Type
GS116v3
- Factory colour
Black
- Input voltage
12 V
- UKCA
yes
- Operating temperature (T-T)
0 - 50 °C
- Basic switching RJ-45 Ethernet ports quantity
16
- Power over Ethernet (PoE)
no
- Quality of Service (QoS) support
yes
- Port mirroring
yes
- Jumbo frames support
yes
- Web-based management
yes
- Rate limiting
yes
- Manual
yes
- Quick start guide
yes
- Rack mounting
no
- IGMP snooping
yes
- Operating relative humidity (H-H)
0 - 90 %
- VLAN support
yes
- 10G support
no
- User guide
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3773441 NETGEAR GS116-300EUS GS116v3 Network RJ45 switch 32 Gbit/s
Description
The NETGEAR GS116v3 is a versatile gigabit Ethernet switch, which has been developed to improve network performance, enabling it to be used both at home and in the office. With 16 ports, this switch supports high-speed connections and has a packet buffer of 512 KB for efficient data management. Its fan-less design provides for a noiseless operation, while the Auto-Duplex mode and the Energy-Efficient Ethernet (EEE) functions reduce the power consumption, without impairing the performance.
The GS116v3 is designed for a wide range of environmental conditions, works effectively at temperatures between 0°C and 50°C, and can be stored at temperatures up to -20°C. With a MTBF of 475 years and compliance with various standards this switch offers reliable functionality. With Quality of Service (QoS) for prioritized traffic management this product is a valuable addition for each network configuration.
This text is machine translated.
The GS116v3 is designed for a wide range of environmental conditions, works effectively at temperatures between 0°C and 50°C, and can be stored at temperatures up to -20°C. With a MTBF of 475 years and compliance with various standards this switch offers reliable functionality. With Quality of Service (QoS) for prioritized traffic management this product is a valuable addition for each network configuration.
This text is machine translated.
Features
- Unmanaged L2 Web-based management
- Quality of Service (QoS) support
- Number of basic switching RJ-45 Ethernet ports: 16
- 1000BASE-T, 100BASE-TX, 10BASE-T
