1/6

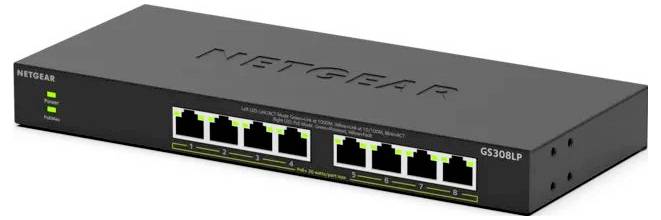

NETGEAR GS308LP-100EUS GS308LP Network RJ45 switch 16 GBit/s PoE
EAN:
Part number:
Item no:
NETGEAR GS308LP unmanaged gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) desktop black
Highlights & Details
- Offers 8 PoE+ ports for versatile device connectivity
- Supports a power consumption of 60 W for the power supply of devices
- Fanless design ensures quiet operation
- Metal housing ensures longevity
- Functions for smooth and efficient network performance
Technical specifications
- Power source: Direct current
- Product type
Network RJ45 switch
- Transfer rate
16 GBit/s
- Working principle
Unmanaged switch
- 10/100/1000 Mbps ports
8 x
- Jumbo frames
Yes
- Router features
PoE
- MAC addresses
4000
- Weight
600 g
- Width
236 mm
- Height
27 mm
- Depth
102 mm
- Type
GS308LP
- Factory colour
Black
- Case type
Desktop
- Material (details)
Metal
- Input voltage
54 V
- UKCA
yes
- Power over Ethernet (PoE) ports quantity
8
- Fanless
yes
- Operating temperature (T-T)
0 - 40 °C
- Power over Ethernet plus (PoE+) ports quantity
8
- Basic switching RJ-45 Ethernet ports quantity
8
- Auto-sensing
yes
- Total Power over Ethernet (PoE) budget
60 W
- Packet buffer memory
0.192 MB
- Latency (1 Gbps)
2.6 µs
- Storage relative humidity (H-H)
0 - 95 %
- Wall mountable
yes
- Auto-negotiation
yes
- Switching capacity
16 Gbit/s
- Heat dissipation
230.85 BTU/h
- Traffic classification
yes
- Packet forwarding rate (1 Gbps)
1488000 pps
- Jumbo frames
9216
- MAC address auto-learning supported
yes
- MAC address auto-aging supported
yes
- Power over Ethernet (PoE) power per port
30 W
- Flow control support
yes
- Power over Ethernet (PoE)
yes
- Quality of Service (QoS) support
yes
- Stackable
no
- Jumbo frames support
yes
- Throughput
16 Gbit/s
- Number of queues
8
- Half duplex
yes
- Rack mounting
yes
- Mean time between failures (MTBF)
2752476 h
- Full duplex
yes
- Number of power supply units
1
- MAC address table
4000 Eintragungen
- Auto MDI/MDI-X
yes
- Operating altitude
0 - 3000 m
- Operating relative humidity (H-H)
0 - 90 %
- 10G support
no
- Storage temperature (T-T)
-20 - 70 °C
- Forwarding rate
1.488 Mpps
- Power consumption (max)
67.5 W
- Power supply included
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3773442 NETGEAR GS308LP-100EUS GS308LP Network RJ45 switch 16 GBit/s PoE
Description
The NETGEAR 300 Series GS308LP is an efficient and reliable switch designed to improve your network experience. With 8 PoE+-ports and a total power of 60 W it provides your devices with connectivity and power. The fan-less design provides for a low-noise operation, as a result of which it is suitable for noise-sensitive environments, while the robust metallic casing provides for a long-term stability.
This switch supports flow control, full duplex capability and automatic detection per device for seamless connectivity. A MTBF of over 2.7 million hours ensures long-lasting performance, making it suitable for both desktop and wall mounting. With a packet buffer size of 192 KB and a bandwidth of 16 Gbit/s, it is best equipped for demanding network tasks.
This text is machine translated.
This switch supports flow control, full duplex capability and automatic detection per device for seamless connectivity. A MTBF of over 2.7 million hours ensures long-lasting performance, making it suitable for both desktop and wall mounting. With a packet buffer size of 192 KB and a bandwidth of 16 Gbit/s, it is best equipped for demanding network tasks.
This text is machine translated.
Features
- Unmanaged
- Quality of Service (QoS) support
- Number of basic switching RJ-45 Ethernet ports: 8
- CAT5E 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 4000 entries Routing/switching capacity: 16 Gb/s.
- Desktop/ rack installation
- DC power supply includes Power over Ethernet (PoE)
