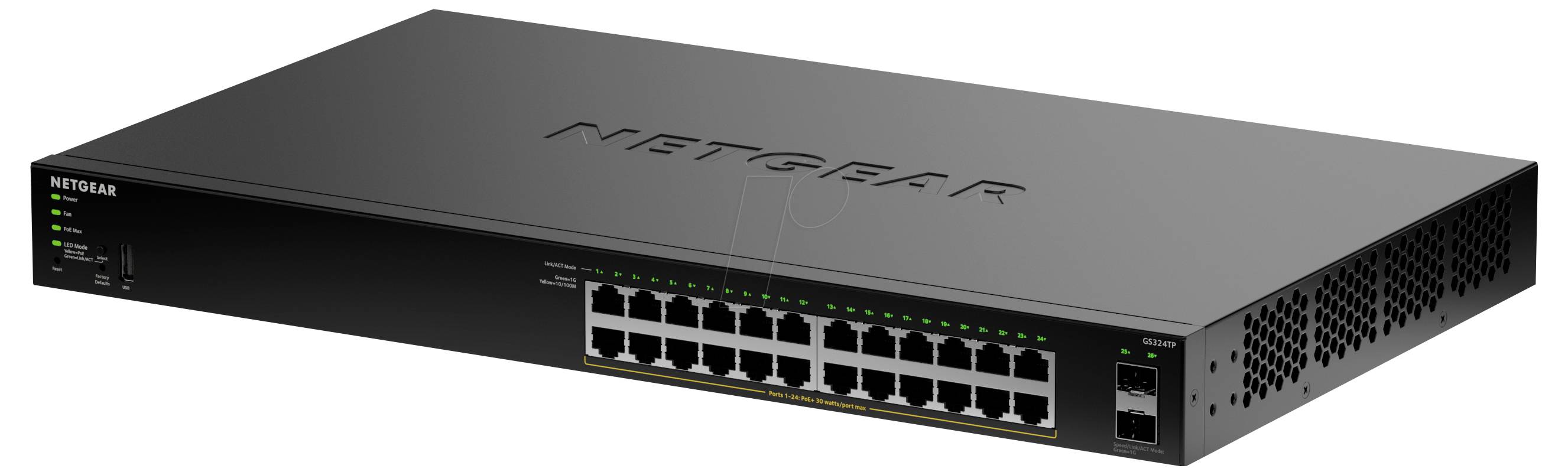

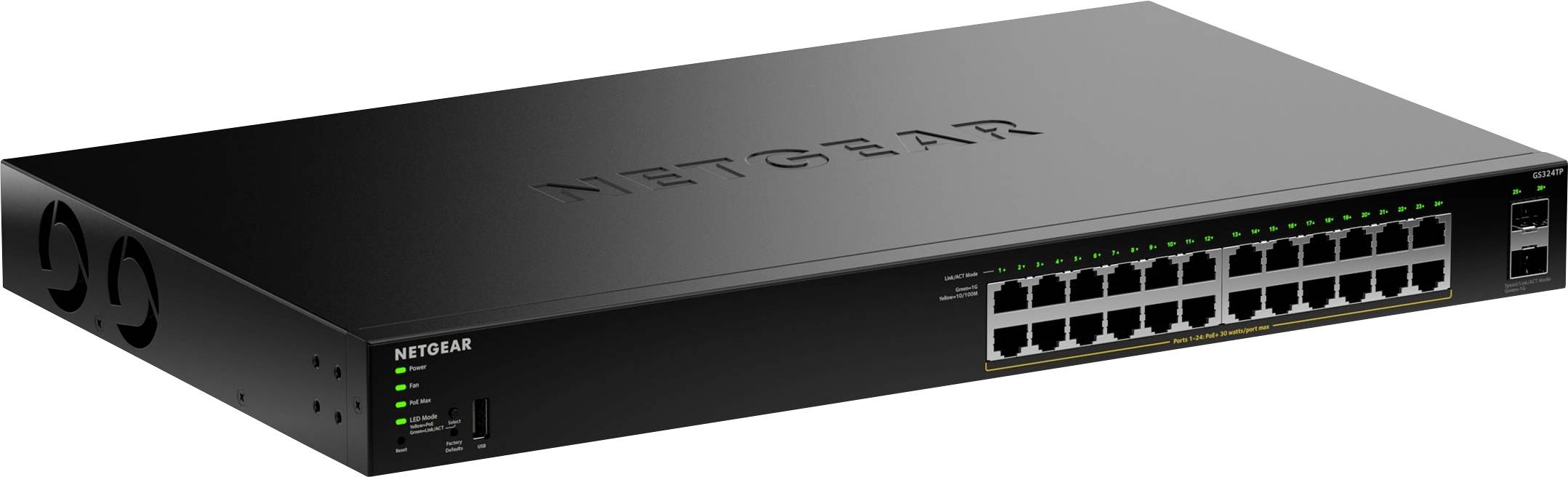

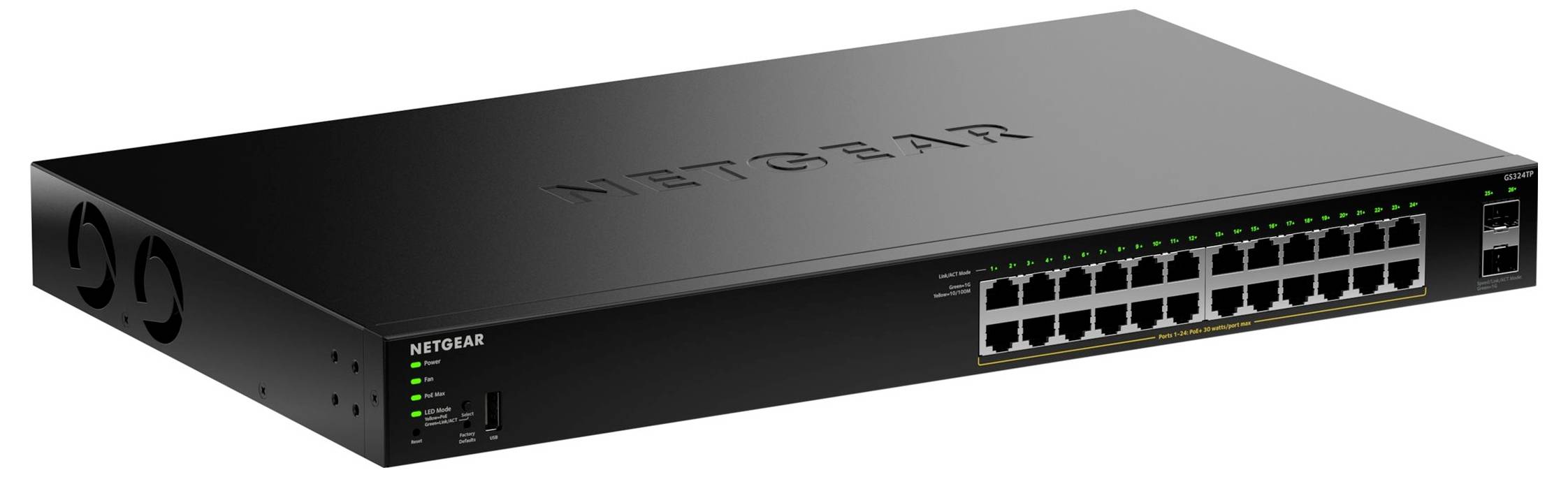

NETGEAR GS324TP-200EUS GS324TPv2 Network SFP switch 52 GBit/s PoE
EAN:
Part number:
Item no:
NETGEAR GS324TPv2 Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U black
Highlights & Details
- Supports 24 Ethernet ports with PoE+ functionality
- Advanced management features for better network control
- Robust design with two fans for optimum performance
- Works effectively in various temperature and humidity ranges
- Includes rack mounting kit for easy installation
Technical specifications
- Form factor: 1U
- Number of fans: 2 fans
- Memory type: RAM
- Power source: PoE
- Product type
Network SFP switch
- Transfer rate
52 GBit/s
- Working principle
Managed switch
- SFP ports
2 x
- 10/100/1000 Mbps ports
24 x
- Router features
PoE
- MAC addresses
16000
- Weight
3.53 kg
- Width
440 mm
- Height
43 mm
- Depth
253 mm
- Type
GS324TPv2
- Factory colour
Black
- Max. ambient temperature
50 °C
- Min. ambient temperature
0 °C
- Max. operating noise
26.1 dB
- CPU speed
800 MHz
512 MB
- UKCA
yes
- Operating temperature (T-T)
0 - 50 °C
- Power over Ethernet plus (PoE+) ports quantity
24
- Basic switching RJ-45 Ethernet ports quantity
24
- Total Power over Ethernet (PoE) budget
190 W
- Packet buffer memory
1.5 MB
- Storage relative humidity (H-H)
0 - 95 %
- Auto-negotiation
yes
- Switching capacity
52 Gbit/s
- Loop protection
yes
- ARP inspection
yes
- Shipping (inner) case width
56.7 cm
- Shipping (inner) case length
24.1 cm
- Shipping (inner) case height
38 cm
- Products per shipping (inner) case
2 Stück(e)
- Shipping (inner) case net weight
10.9 kg
- SFP module slots quantity
2
- Flow control support
yes
- Power over Ethernet (PoE)
yes
- Quality of Service (QoS) support
yes
- Port mirroring
yes
- Link aggregation
yes
- Jumbo frames support
yes
- Multicast support
yes
- Broadcast storm control
yes
- Web-based management
yes
- Store-and-forward
yes
- Access Control List (ACL)
yes
- Rate limiting
yes
- Manual
yes
- Quick start guide
yes
- Rack mounting
yes
- Full duplex
yes
- Flash memory
64 MB
- MAC address table
16000 Eintragungen
- IGMP snooping
yes
- Number of VLANs
256
- Spanning tree protocol
yes
- Operating altitude
0 - 3000 m
- Operating relative humidity (H-H)
0 - 95 %
- VLAN support
yes
- Storage temperature (T-T)
-20 - 70 °C
- Built-in processor
yes
- User guide
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3733388 NETGEAR GS324TP-200EUS GS324TPv2 Network SFP switch 52 GBit/s PoE
Description
The NETGEAR GS324TPv2 switch offers a reliable and efficient network solution for different environments. With a capacity of 24 ports, including 2 SFP ports, this switch with its 1-Gbit/s-connectivity ensures a fast data transfer. The device supports Power over Ethernet plus (PoE+) with a power of up to 30 W per port and is therefore suitable for Ideal for direct power supply to devices such as IP cameras and access points via the switch, which reduces the need for additional power sources.
Designed for durability, the GS324TPv2 works efficiently under a variety of environmental conditions, with an operating temperature of 0 °C to 50 °C and a robust design that includes two fans. It has extended management functions such as RADIUS and TACACS+ authentication, IGMP snooping and VLAN support for improved network management and more security. These functions make the NETGEAR GS324TPv2 switch a versatile choice for companies that are striving for stable and effective network solutions.
This text is machine translated.
Designed for durability, the GS324TPv2 works efficiently under a variety of environmental conditions, with an operating temperature of 0 °C to 50 °C and a robust design that includes two fans. It has extended management functions such as RADIUS and TACACS+ authentication, IGMP snooping and VLAN support for improved network management and more security. These functions make the NETGEAR GS324TPv2 switch a versatile choice for companies that are striving for stable and effective network solutions.
This text is machine translated.
