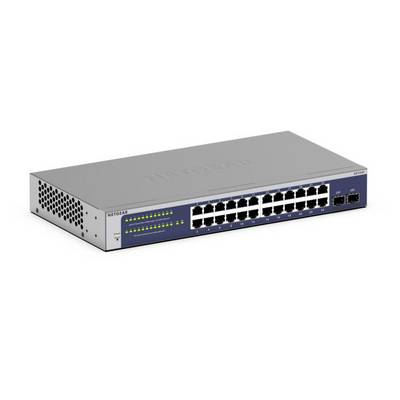

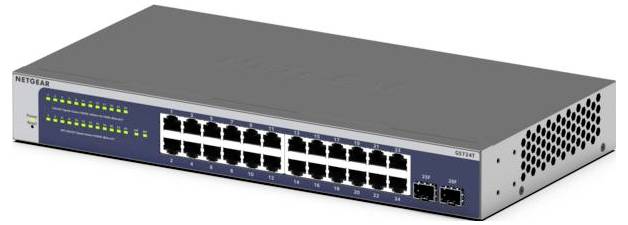

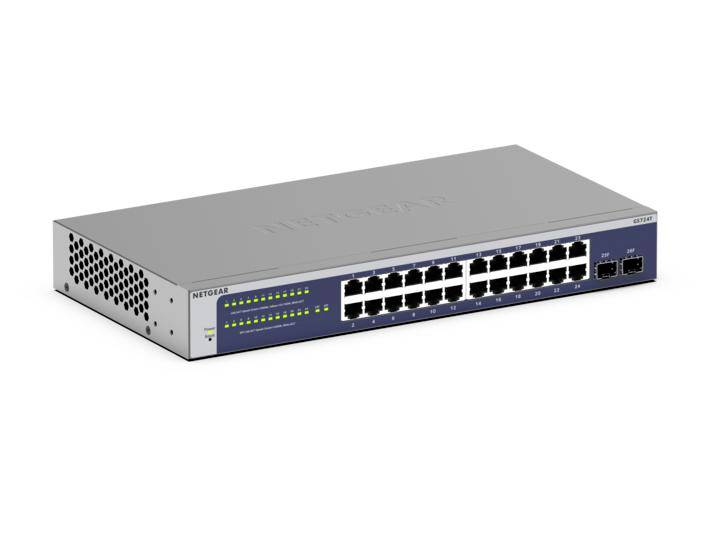

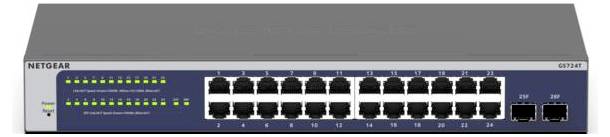

NETGEAR GS724T-600EUS GS724T Network RJ45/SFP switch
EAN:
Part number:
Item no:
NETGEAR GS724Tv6 Managed L2+/L3 Gigabit Ethernet (10/100/1000) 1U Blue, Grey
Highlights & Details
- Managed L2+/L3 Web-based management SNMP v1/v2
- Quality of Service (QoS) support
- Number of basic switching RJ-45 Ethernet ports: 24
- 10G support
- MAC address table: 16000 entries Routing/switching capacity: 52 Gb/s.
- Access control list
- 1U Rack-mounting
Technical specifications
- Form factor: 1U
- Number of fans: 0 fans
- Product type
Network RJ45/SFP switch
- Working principle
Managed switch
- SFP ports
2 x
- 10/100/1000 Mbps ports
24 x
- Jumbo frames
Yes
- MAC addresses
16000
- Weight
1.62 kg
- Width
328 mm
- Height
43 mm
- Depth
169 mm
- Type
GS724T
- Factory colour
Blue
Grey
- Max. operating noise
0 dB
- Power consumption (ON)
13.5 W
- Power supply (details)
100 - 240 V
- Safety
HTTPS
SSL/TLS
- UKCA
yes
- Operating temperature (T-T)
0 - 45 °C
- Basic switching RJ-45 Ethernet ports quantity
24
- Packet buffer memory
2 MB
- Number of multicast groups filtered
512
- Number of static routes
32
- Storage relative humidity (H-H)
0 - 95 %
- Non-operating altitude
0 - 3000 m
- Switching capacity
52 Gbit/s
- Jumbo frames
9000
- SFP module slots quantity
2
- Flow control support
yes
- Power over Ethernet (PoE)
no
- MAC address filtering
yes
- Quality of Service (QoS) support
yes
- Port mirroring
yes
- Jumbo frames support
yes
- Multicast support
yes
- Broadcast storm control
yes
- Number of queues
8
- Web-based management
yes
- Access Control List (ACL)
yes
- System event log
yes
- IP routing
yes
- Firmware upgradeable
yes
- Rack mounting
yes
- Mean time between failures (MTBF)
1999946 h
- Full duplex
yes
- MAC address table
16000 Eintragungen
- SSH/SSL support
yes
- IGMP snooping
yes
- Number of VLANs
256
- Spanning tree protocol
yes
- Operating altitude
0 - 3000 m
- Operating relative humidity (H-H)
0 - 90 %
- VLAN support
yes
- 10G support
yes
- Storage temperature (T-T)
-20 - 70 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3773436 NETGEAR GS724T-600EUS GS724T Network RJ45/SFP switch
Description
The NETGEAR GS724T is a versatile switch, which was developed for high-performance networks. With support for 24 ports, this switch offers numerous connectivity options for different devices and ensures an efficient data transfer in your network. The desktop form factor allows easy integration into any workspace, while features such as VLAN support and store-and-forward technology improve network segmentation and computing capabilities.
The GS724T is compatible with several IEEE standards, including IEEE 802.3u, IEEE 802.1Q and IEEE 802.3ab, thus ensuring compatibility and reliable performance. The power status indicators provide clear visibility of operations, while the additional SFP ports provide flexibility for fiber connectivity, WAS makes this switch a robust choice for any business that wants to optimize its network infrastructure.
This text is machine translated.
The GS724T is compatible with several IEEE standards, including IEEE 802.3u, IEEE 802.1Q and IEEE 802.3ab, thus ensuring compatibility and reliable performance. The power status indicators provide clear visibility of operations, while the additional SFP ports provide flexibility for fiber connectivity, WAS makes this switch a robust choice for any business that wants to optimize its network infrastructure.
