NETGEAR GSM4212P-100EUS GSM4212P Network switch
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

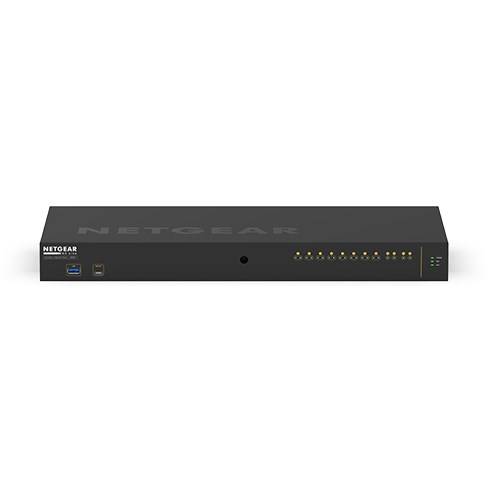

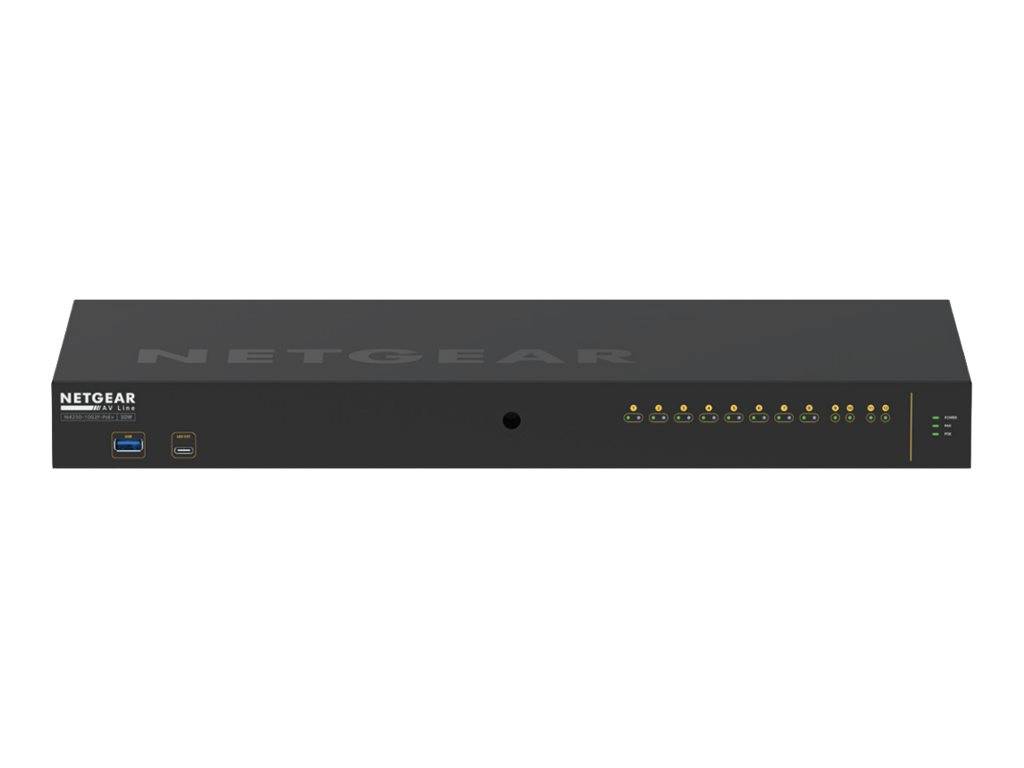

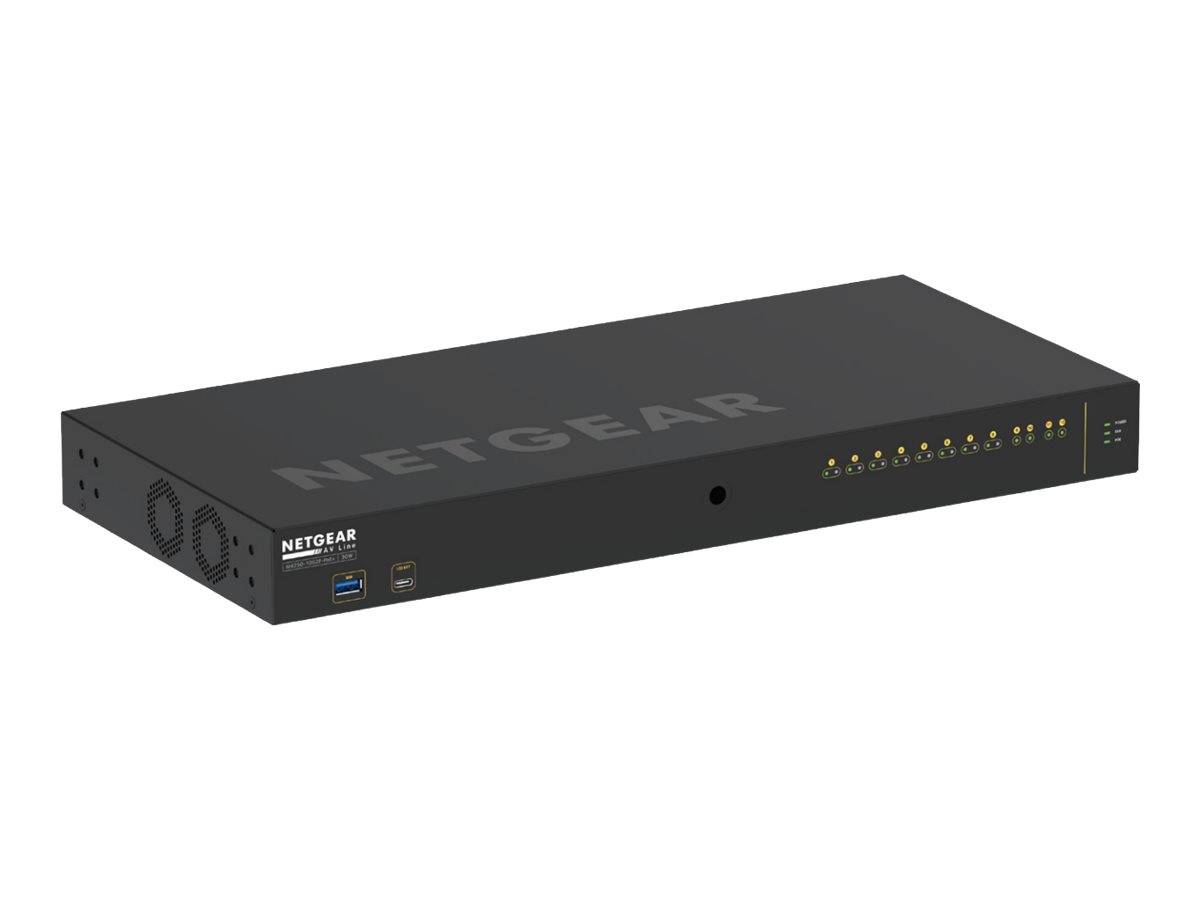

NETGEAR GSM4212P Network switch
- 8 PoE+ ports for multi-switch audio or video deployments
- 8x1G PoE+ with 125 W PoE budget with 2x1G additional Ports and 2xSFP 1G Fiber uplinks
- Fanless mode with max. 25 °C ambient temperature, 35 °C internal sensor and 80 W PoE load possible
Technical specifications
- Firewall throughput (packet size 64 bytes):17.86 Mpps
- Latency (1 Gbps):< µs 2.27
- Switching capacity: 24 Gbps
- Product type
Network switch
- Working principle
Managed switch
- Ethernet ports
12
- PoE ports
10
- SFP ports
2 x
- 10/100/1000 Mbps ports
12 x
- Jumbo frames
Yes
- Weight
2.85 kg
- Width
44 cm
- Height
4.32 cm
- Depth
20 cm
- Type
GSM4212P
- Factory colour
Black
- Max. ambient temperature
70 °C
- Min. ambient temperature
0 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2368462 NETGEAR GSM4212P-100EUS GSM4212P Network switch
User & Safety Instructions
User & Safety Instructions 2368462 NETGEAR GSM4212P-100EUS GSM4212P Network switch
Security datasheet
Security datasheet 2368462 NETGEAR GSM4212P-100EUS GSM4212P Network switch
Description
Switching for 1G AV over IP with PoE+ and rear ports for clean integration into AV racks. M4250 switches are pre-configured for standard audio and video signals. For more specific requirements, an AV user interface provides customization with port-based profiles. For audio, Dante, Q-SYS, and AES67 profiles are available as well as an AVB profile, for which an AVB license is available separately. For video, the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante, etc. as well as audio/video/control mixed profiles.
This text is machine translated.
This text is machine translated.
Features

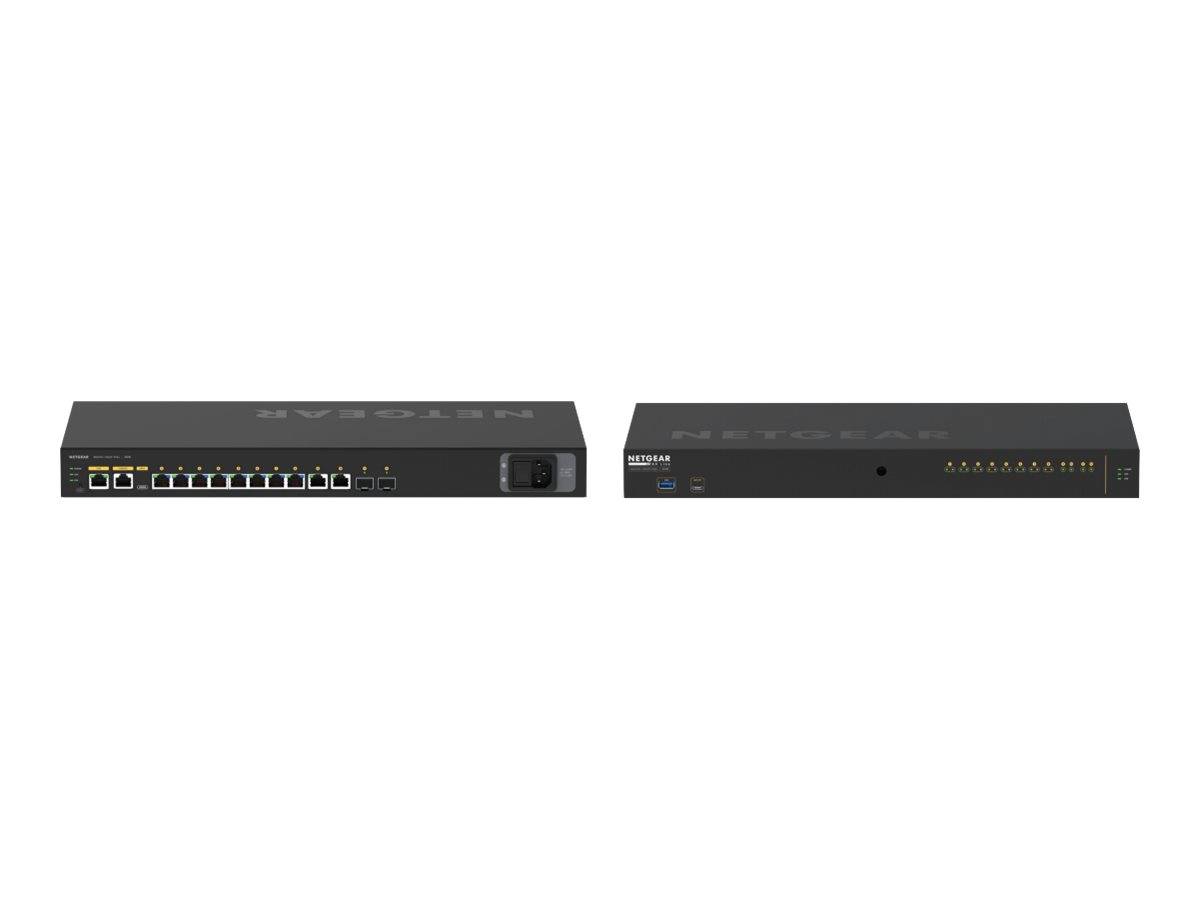

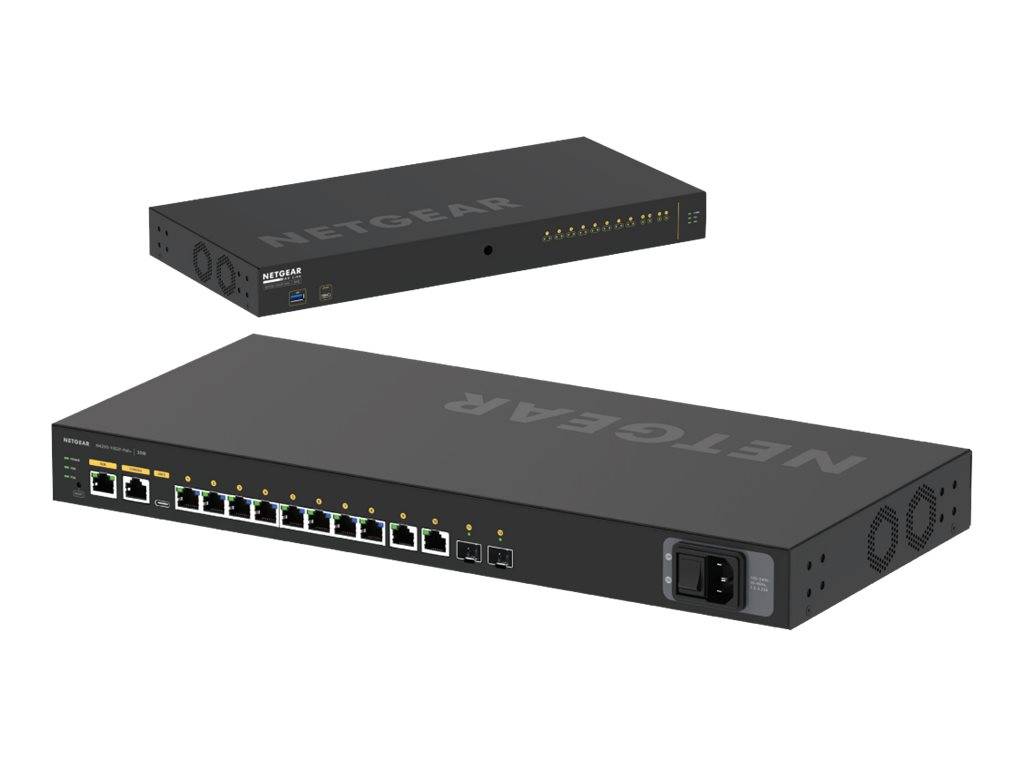

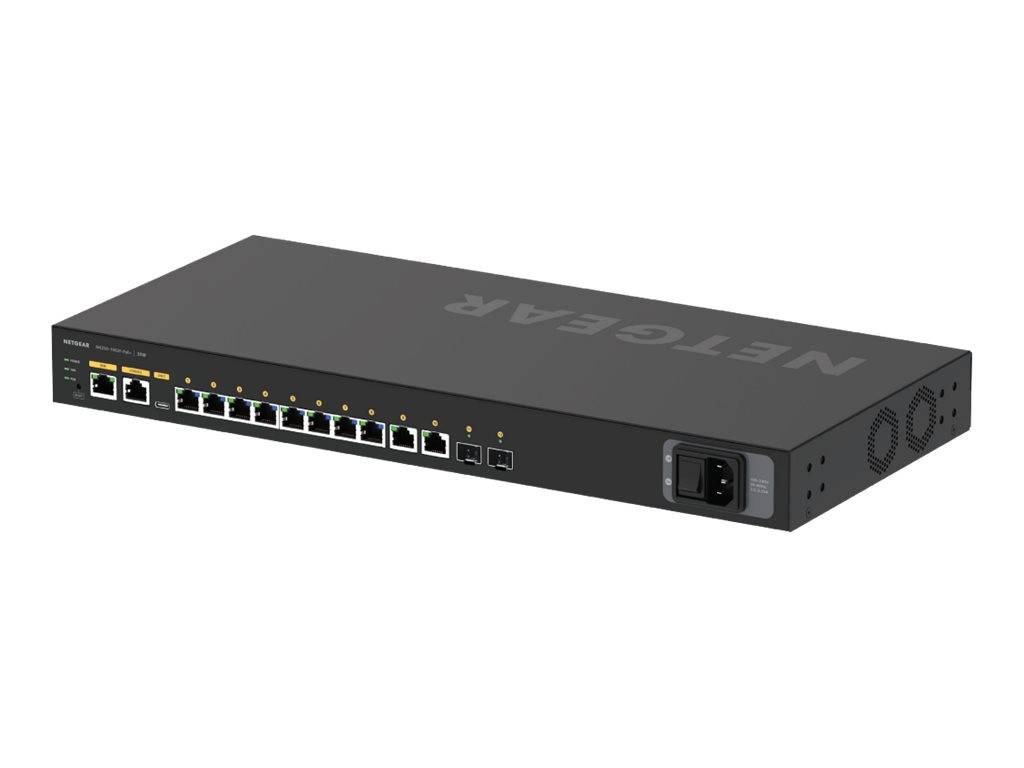

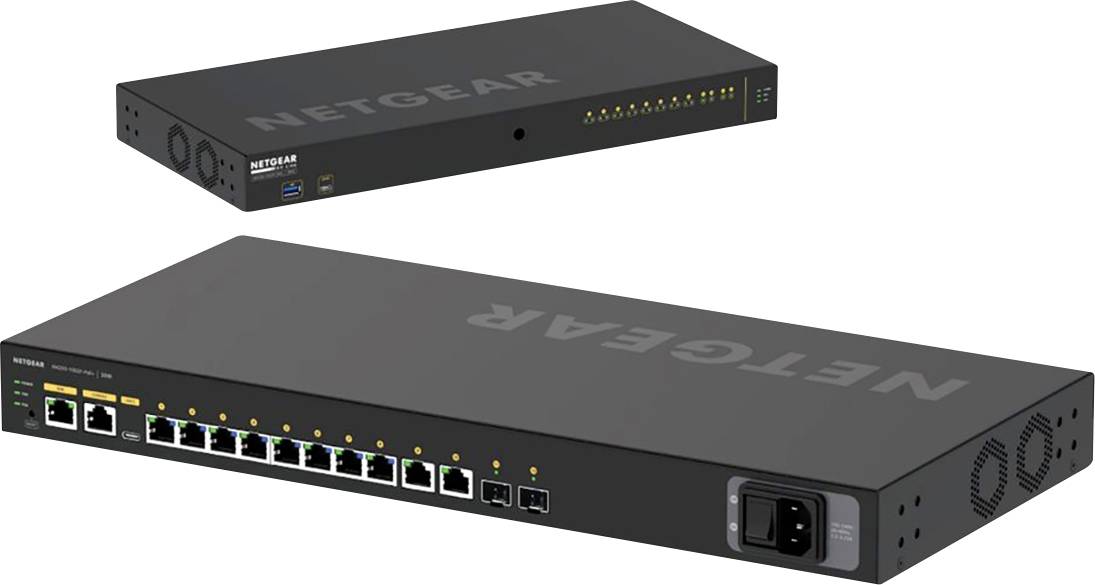

- 1HE, 200mm deep rack mount with black front display and all rear panel connectors
- Possible reverse mounting with front-panel connectors including recessed Installation
- Universal mounting options outside the M5 floor rack and front M10 threaded holes
- Preconfigured for audio and video over IP from the field
