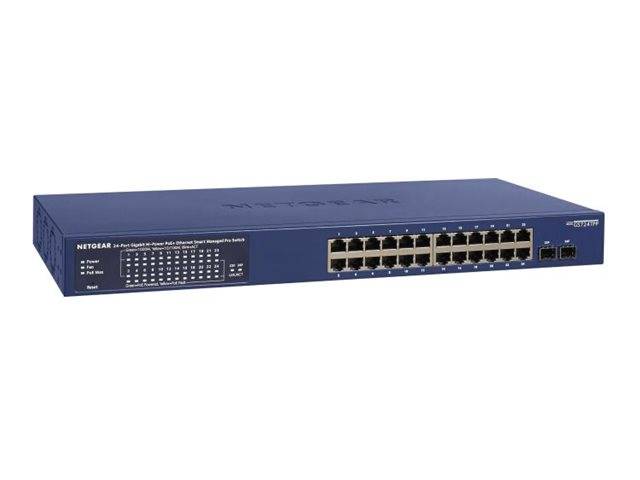

NETGEAR Smart GS724TP switch – L3 Lite – Smart – 24 x 10/100/1000 (PoE+)
EAN:
Part number:
Item no:
Highlights & Details
NETGEAR Smart GS724TP switch – L3 Lite – Smart – 24 x 10/100/1000 (PoE+)
- 24 Gigabit Ethernet ports with 2 SFP slots for fiber optic connections
- PoE+ support with a budget of 190 W for efficient power supply to devices
- Comprehensive security features such as RADIUS, TACACS+ and TLS 1.0
- Energy-efficient Ethernet (EEE) for lower power consumption
- Simple remote management via SNMP, RMON and HTTPS
Technical specifications
- + 2 x Gigabit SFP desktop rack mountable - PoE+ (190 W)
- Product type
Network switch
- LAN transfer rate
1000 MBit/s
- Transfer rate
52 GBit/s
- Working principle
Managed switch
- Ethernet ports
24
- PoE ports
24
- SFP ports
2 x
- 10/100/1000 Mbps ports
24 x
- Fibre-optic ports
2
- Jumbo frames
Yes
- Router features
PoE
- MAC addresses
8000
- Weight
4.80
- Width
44 cm
- Height
4.3 cm
- Depth
20.4 cm
- Type
Switch
- Interfaces
RJ45
- Factory colour
Multicolour
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3740034 NETGEAR Smart GS724TP switch – L3 Lite – Smart – 24 x 10/100/1000 (PoE+)
Description
Through the support of RADIUS and TACACS+ authentication methods as well as TLS 1.0-encryption the NETGEAR Smart GS724TP ensures a secure network access and a secure data transmission. With an impressive MTBF (Mean Time Between Failures) of 1,051,375 hours, this switch promises extraordinary reliability and longevity for any business operation. With a PoE+ budget of 190 W and Energy-Efficient Ethernet (EEE) the switch optimizes the power consumption, reduces the operating costs and supplies the devices effectively with electricity. Fitted with VLAN tagging, Quality of Service (QoS) and IGMP Snooping, the GS724TP enables a sophisticated network management and prioritization for improved performance. With 24 1000Base-T ports and 2 1000Base-X SFP ports, this switch provides extensive connectivity options for a variety of devices and network layouts.
This text is machine translated.
This text is machine translated.
Features
- NETGEAR Smart GS724TP switch – 24 connections – Smart – can be mounted on rack
- Device type: Switch - 24 connections - L3 Lite - Smart
- Enclosure Type : Rack mountable 1U
- Sub-type : Gigabit Ethernet
- Ports : 24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
- Power over Ethernet (PoE) : PoE+
- PoE budget : 190 W.
- Performance : Bandwidth: 52 Gbps
- Forwarding rate (64-byte packets): 38.6 Mpps
- 1 Gbps of copper latency (64-byte packets): 3,749 µs
- 1 Gbps fiber latency (64-byte packets): 3,129 µs
- Capacity : Packed buffer size: 0.5 MB
- Priority queues: 8
- Multicast Groups: 128
- Virtual Interfaces (VLANs): 64
- DHCP espionage entries: 256
- ACLs per system: 100
- Packed buffer size: 1.5 MB
- Size of the MAC address table : 8000 entries
- Jumbo Frame Support : 10KB
- Routing Protocol : IGMP, static IP routing, MLDv2, MLD
- REMOTE MANAGEMENT PROTOCOL : SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2C, HTTP, HTTPS, TFTP
- Features : flow control, IGMP snooping, DoS attack protection, port mirroring, store-and-forward, IPv6 support, firmware upgradeable, STP support, RSTP support, MSTP support, DHCP snooping, MLD Snooping, IPv4 Support, LACP, DHCP Client, 512 KB packet buffer, GVRP, dual firmware images, preventing loop formation, static routing, CoS, SP, cloud managed, DSCP support, protocol-based VLAN support, Cable test, ICMP router discovery protocol (IRDP), IGMP queror, DNS client, voice VLAN, ZTP, EEE, WRR, AUTO VoIP, VLAN tagging, connection bundling, Advanced QoS, LAG, security slot (compatible with Kensington slot), 2 fans, QoS
- Product certifications : IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.11g, IEEE 802.3at, IEEE 802.3az
- Power supply : AC 100-240 V (50 - 60 Hz)
- Dimensions (width x depth x height): 44 cm x 20.4 cm x 4.3 cm
- Weight: 3.15 kg
- Localization : Europe
