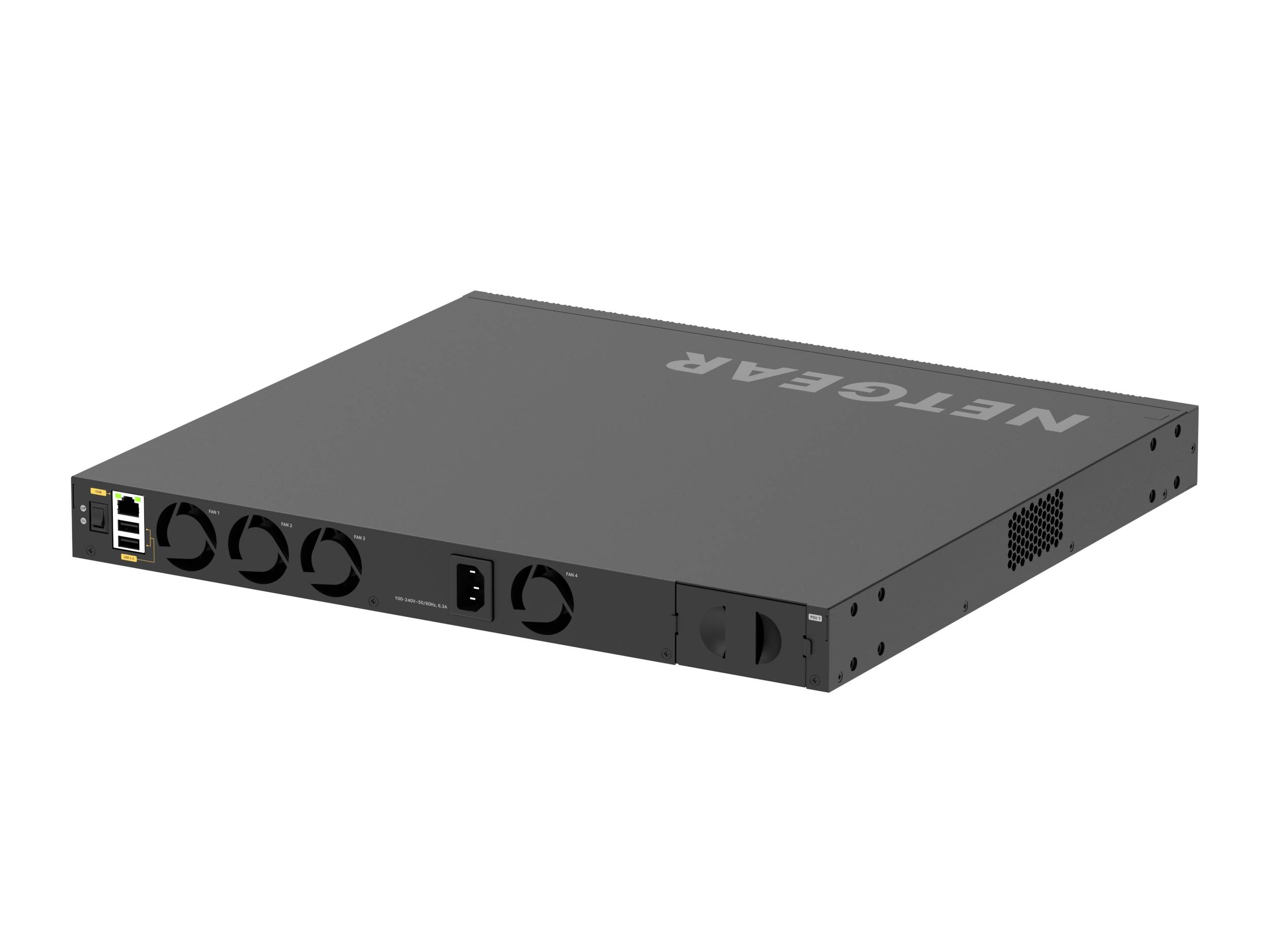

Black NETGEAR rackmount network switch shown at an angle, with front ports and status lights visible.

Black NETGEAR rackmount network switch shown at an angle, with front ports and status lights visible.

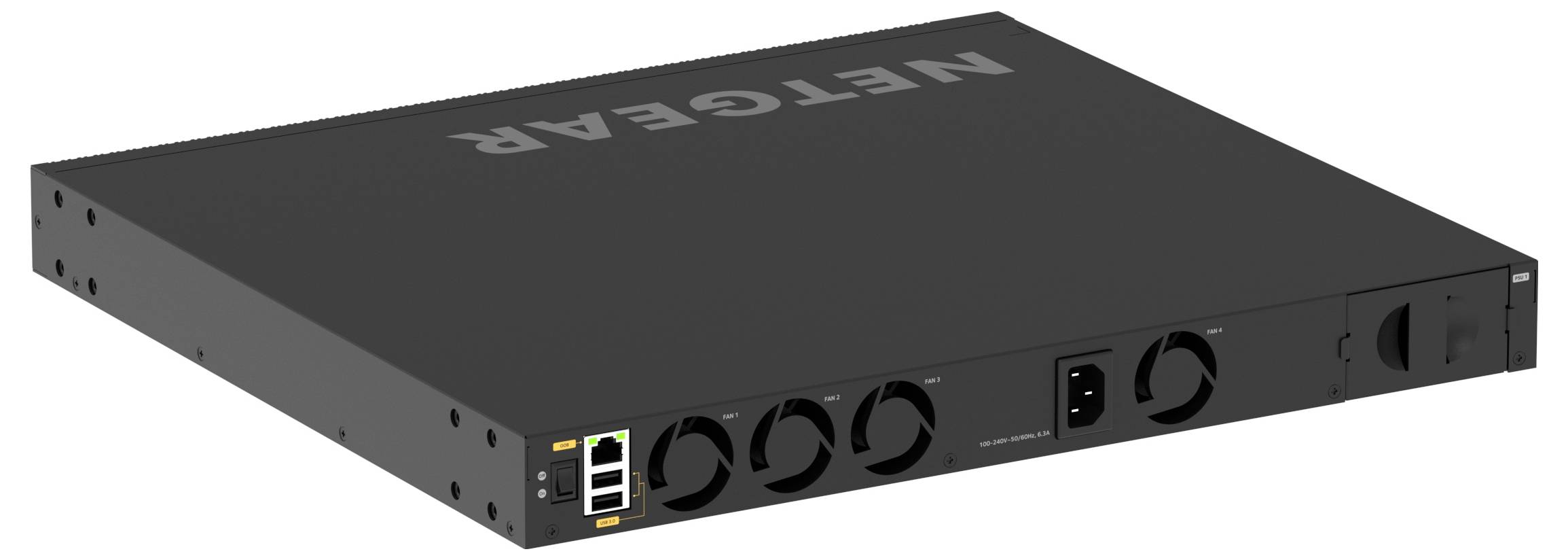

Black NETGEAR network device shown in perspective, a rack-mount switch/front panel with ports and cooling fans.

Netgear network switch dashboard showing port status across multiple Ethernet ports, with several active green links and most ports inactive.

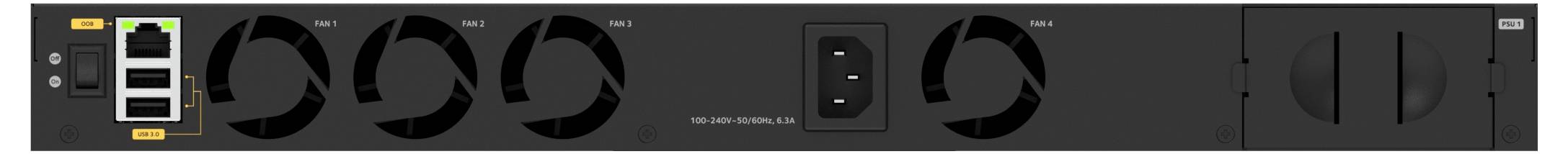

Front view of a black rack-mount server or network device with ventilation fans, status lights, and front-panel ports.

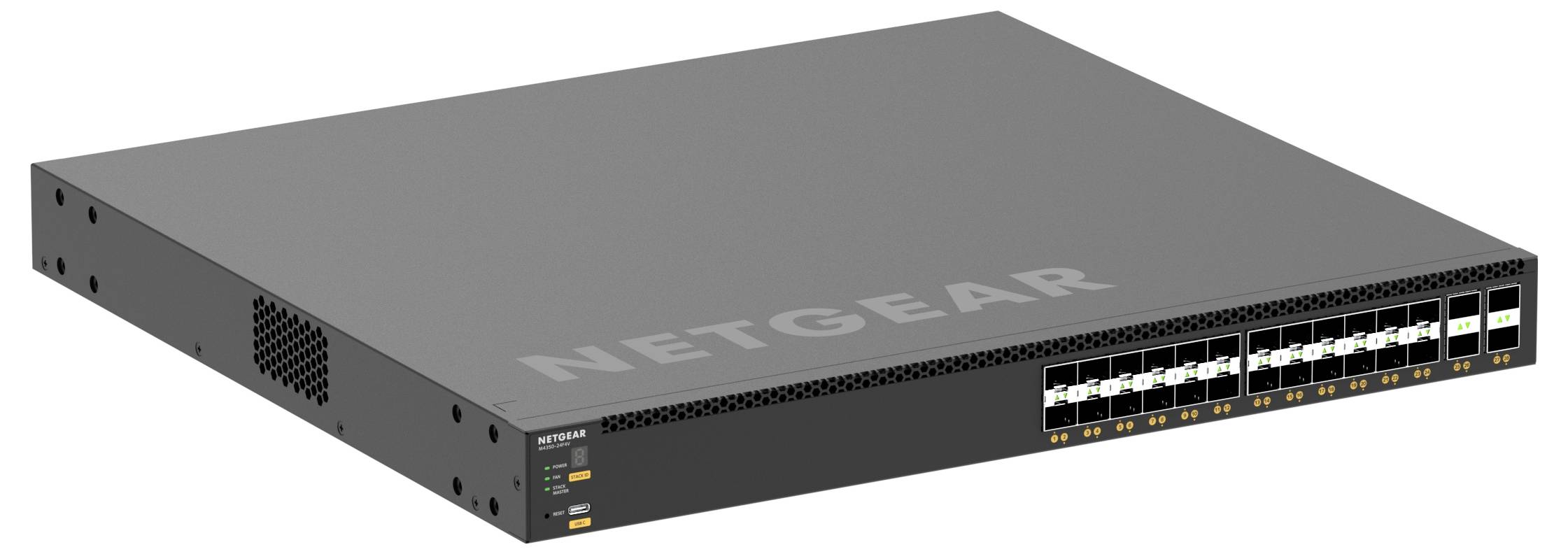

NETGEAR rackmount network switch with multiple Ethernet ports on the front panel, shown in angled product view on a white background

Front view of a NETGEAR network switch, showing multiple Ethernet ports on the left, a power inlet in the center, and ventilation openings across the front panel.

1/6

NETGEAR

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

NETGEAR M4350-24F4V managed L3 1U black

Managed L3 Web-based management SNMP V1, V2, V3
Quality of Service (QoS) support
Console port RJ-45
10G support
MAC address table: 16000 entries Routing/switching capacity: 680 Gb/s.
Access control list
1U Rack-mounting Stackable
AC power supply included
This text is machine translated.

Technical specifications

Form factor: 1U
DDR4 SDRAM
Energy source: AC

Product type: Network RJ45 switch

Working principle: Managed switch

SFP+ ports: 24 x

Jumbo frames: Yes

MAC addresses: 16000

Weight: 6.25 kg

Width: 440 mm

Height: 43.2 mm

Depth: 400 mm

Type: M4350

Factory colour: Black

No. of USB A 2.0 ports: 2 x

Max. operating noise: 61.8 dB

Power consumption (ON): 119.3 W

PSU power: 240 W

Power supply (details): 100 - 240 V

CPU speed: 1800 MHz

: 2048 MB

Processor/type: ARM Cortex-A57

UKCA: yes

Operating temperature (T-T): 0 - 50 °C

Packet buffer memory: 32 MB

Latency (1 Gbps): 1.06 µs

Latency (10 Gbps): 0.63 µs

Throughput: 505.92 Mpps

Storage relative humidity (H-H): 0 - 95 %

Non-operating altitude: 0 - 3000 m

Password protection: yes

Switching capacity: 680 Gbit/s

Heat dissipation: 374.6 BTU/h

Rack mount kit: yes

Loop protection: yes

BPDU filtering/protection: yes

ARP inspection: yes

Jumbo frames: 12000

SFP+ module slots quantity: 24

Flow control support: yes

Power over Ethernet (PoE): no

MAC address filtering: yes

Quality of Service (QoS) support: yes

Link aggregation: yes

Stackable: yes

Jumbo frames support: yes

Multicast support: yes

Broadcast storm control: yes

Static port security: yes

GARP VLAN Registration Protocol (GVRP): yes

Static route: yes

Access Control List (ACL) ingress: 511

Access Control List (ACL) egress: 1023

Policy-based routing: yes

IGMP proxy: yes

Web-based management: yes

Store-and-forward: yes

Access Control List (ACL): yes

Rate limiting: yes

SFP28 ports quantity: 4

IPv4 routes: 512

IPv6 routes: 256

Rack mounting: yes

Mean time between failures (MTBF): 778741 h

Full duplex: yes

Flash memory: 512 MB

MAC address table: 16000 Eintragungen

IGMP snooping: yes

Number of VLANs: 4093

Spanning tree protocol: yes

Operating altitude: 0 - 3000 m

Operating relative humidity (H-H): 0 - 90 %

VLAN support: yes

DoS attack prevention: yes

10G support: yes

Storage temperature (T-T): -20 - 70 °C

Built-in processor: yes

User guide: yes

Power supply included: yes
