Buy Nethix 90.06.020 IoT module 5 V DC

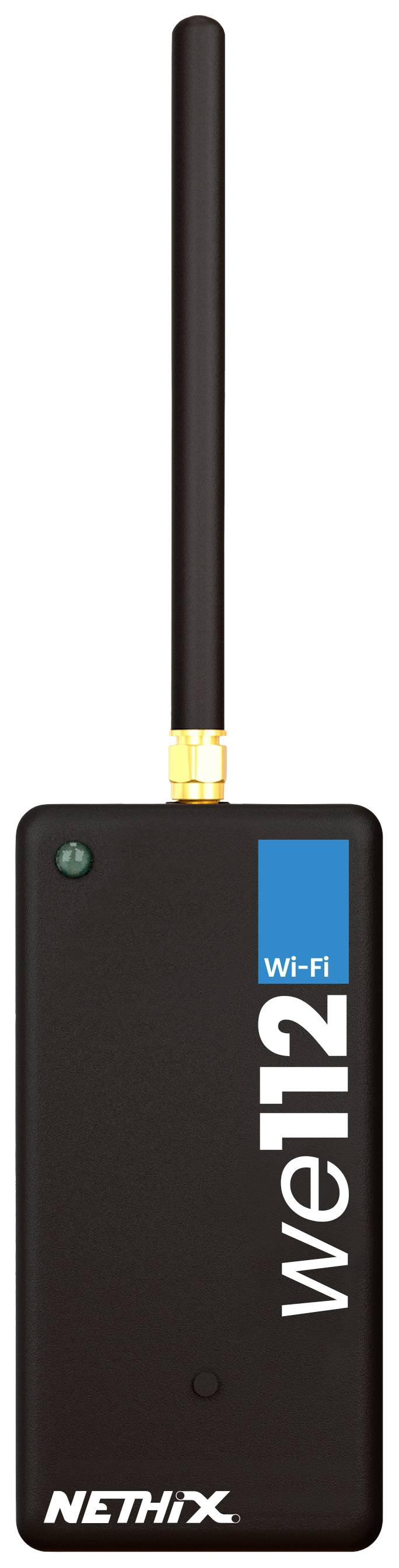

A black Nethix WiFi device with an antenna, model 'WE112'.

1/2

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

1 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 71.18 / piece)

€ 71.18

plus VAT.

Only 1 Piece(s) available

Report legal concerns

Highlights & Details

Mini IoT Module WE112 Wi-Fi

Compact Wi-Fi technology module

Technical specifications

Average consumption 500mA, peak 2A
Relay output:
2 A/30 V/DC
0.5 A/230 /AC

Type: 90.06.020

Operating voltage: Via USB-C

Operating voltage: 5 V DC

No. of relay outputs: 1

Interfaces: USB-C

Depth: 23 mm

Length: 85 mm

Width: 40 mm

Dim: (L x W) 85 mm x 40 mm

Manufacturer part #: 90.06.020

Max. temperature: +55 °C

Min. temperature: -15 °C

Weight: 55 g

Product type: IoT module

Documents & Downloads

Datasheet

Datasheet 3059162 Nethix 90.06.020 IoT module 5 V DC

User & Safety Instructions

User & Safety Instructions 3059162 Nethix 90.06.020 IoT module 5 V DC

Description

The new series of the MINI-PROGRAMMABLE MODULES WE11X is for remote control and monitoring. Versatility is its strength. Thanks to their small size and the configurable input on the board, these products offer the right solution for various IoT applications. The WE11X products collect data from the field via a configurable input and make it available in the cloud or on a server. Thanks to programmable logic, you can manage alarms and automatic actions.
