Nethix 90.20.032 SMPSU
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 68.90 / piece)
€ 68.90
plus VAT.
14-day return policy included
Technical specifications
- Input voltage range 195 – 265 V/AC
- Output voltage: 12 V with mains; 9 V without power supply
- Output current: 1.25 A with mains; 0.5 A with no mains
- Efficiency: 0.8
- Isolation 3000 V/AC
- Type
90.20.032
- Product type
SMPSU
- Depth
35 mm
- Length
90 mm
- Width
54.5 mm
- Dim
(L x W) 90 mm x 54.5 mm
- Manufacturer part #
90.20.032
- Max. temperature
+45 °C
- Min. temperature
-20 °C
- Weight
115 g
Documents & Downloads
Datasheet
Datasheet 3059165 Nethix 90.20.032 SMPSU
User & Safety Instructions
User & Safety Instructions 3059165 Nethix 90.20.032 SMPSU
Description

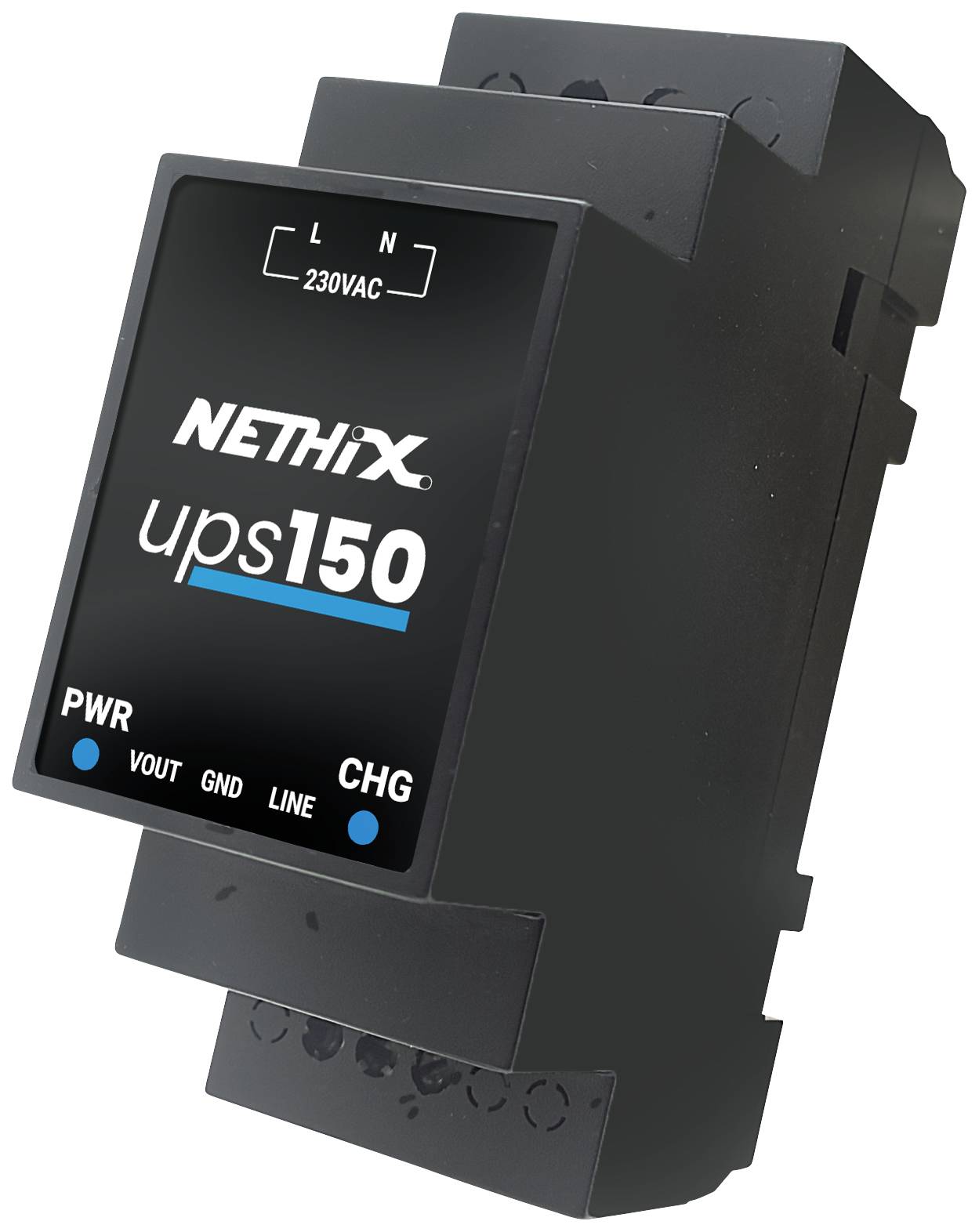

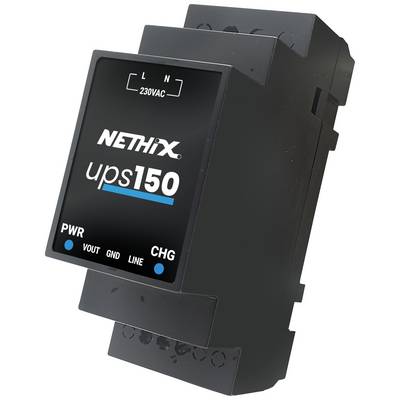

UPS150 is a light and compact switched-mode power supply with internal battery pack specially designed and developed for use with the WE151 and WE152 devices. Equipped with an LED for displaying the network status and the battery charging, it offers a digital output that is suitable for reporting a power failure. By connecting this signal to one of the digital inputs of the WE151/WE152, a notification can be sent to one or more operators.
