Network cable tester PCE-PA 8300-1 PCE Instruments PCE-PA 8300-1 Networks
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Power measurement PCE-PA 8300-1
Technical specifications
- Voltage Measuring (AC V)Measurement range resolution accuracy10 V ... 600 V (Phase to Neutral)10 V ... 600 V (Phase to Phase)0.1 V ±(0.5 % + 0.5 V)Current measurement (AC A) Set 1Measurement range resolution accuracy20 A 0.001 A (< 10 A)0.01 A (>= 10 A) ±(0.5 % + 0.1 A)200 A 0.01 A (< 100 A)0.1 A (>= 100 A) ±(0.5 % + 0.5 A)1200 A 0.1 A (< 1000 A)1 A (>= 1000 A) ±(0.5 A + 5 A)Effective power measurement range resolution accuracy0 ... 9.999 kW 0.001 kW ±(1 % + 0.008 kW)10 ... 99.99 kW 0.01 kW ±(1 % + 0.008 kW)100 ... 999.9 kW 0.1 kW ±(1 % + 0.8 kW)1 ... 9.999 MW 0.001 MW ±(1 % + 0.008 MW)Apparent power measuring range resolution accuracy0 ... 9.999 kVA 0.001 kVA ±(1% + 0.008 kVA)10 ... 99.99 kVA 0.01 kVA ±(1% + 0.08 kVA)100 ... 999.9 kVA 0.1 kVA ±(1% + 0.8 kVA)1 ... 9.999 MVA 0.001 MVA ±(1 % + 0.008 MVA)Reactive power Measurement range Resolution Accuracy0 ... 9.999 kVAR 0.001 kVAR ±(1 % + 0.008 kVAR)10 ... 99.99 kVAR 0.01 kVAR ±(1 % + 0.08 kVAR)100 ... 999.9 kVAR 0.1 kVAR ±(1 % + 0.8 kVAR)1 ... 9.999 MVAR 0.001 MVAR ±(1% + 0.008 MVAR)Active energy measuring range resolution accuracy0 ... 9.999 kWh 0.001 kWh ±(2 % + 0.008 kWh)10 ... 99.99 kWh 0.01 kWh ±(2 % + 0.08 kWh)100 ... 999.9 kWh 0.01 kWh ±(2 % + 0.8 kWh)1 ... 9.999 mWh 0.001 mWh ±(2 % + 0.008 mWh)Apparent energy measuring range resolution accuracy0 ... 9.999 kVAh 0.001 kVAh ±(2 % + 0.008 kVAh)10 ... 99.99 kVAh 0.01 kVAh ±(2% + 0.08 kVAh) 100 ... 999.9 kVAh 0.01 kVAh ±(2 % + 0.8 kVAh)1 ... 9.999 MVAh 0.001 MVAh ±(2% + 0.008 MVAh)Reactive energy Measurement range Resolution Accuracy0 ... 9.999 kVARh 0.001 kVARh ± (2% + 0.008 kVARh)10 ... 99.99 kVARh 0.01 kVARh ± (2% + 0.08 kVARh)100 ... 999.9 kVARh 0.01 kVARh ± (2% + 0.8 kVARh)1 ... 9.999 MVARh 0.001 MVARh ± (2% + 0.008 MVARh)Power factor measuring range resolution accuracy0 ... 1 0.01 ± 0.04Phase angle measuring range resolution accuracy-180° ... 180° 0.1° ± 1°Frequency measuring range resolution accuracy45 ... 65 Hz 0.1 Hz ± 0.1 HzHarmonic of the alternating voltage at 50/60 Hz Measurement range resolution accuracy1 ... 20st order 0.1 V0.1% ± (2% + 0.5 V) ± (2% + 10 digits)21 ... 30-order 0.1 V0.1% ± (2% + 0.5 V) ± (2% + 20 digits)31 ... 50th order 0.1 V0.1% R13not specified Harmonic of the alternating current with 50/60 HzMeasurement range resolution accuracy1 ... 20th order 0.001 ... 1A0.1 % ± (2 % + 0.5 A)± (2% + 10 digits)21 ... 30th Order 0.001 ... 1A0.1 % ± (2 % + 0.5 A)± (2% + 20 digits)31 ... 50th order 0.001 ... 1A0.1% not specifiedGeneral technical specificationsDisplay 3.7" Dot matrix LCD (320 x 240 pixels)SAFETY STANDARD IEC1010CAT III 600 VInput resistance AC V 10 MOhmOperating frequency clamp-on ammeters 40 Hz ... 1 kHzTested working frequency clamp-on ammeters 45 Hz ... 65 HzOverload protection AC VAC A 720 V RMS1300 A with current clampData memory SD-cardRecording interval 1 secondData loggerReal-time storage on SD-cardStorage interval 2 seconds ... 7200 secondsData output via USB or RS-232 depending on the connection cable (only for live viewing on a PC)Operating temperature 0 ... +50 °CAmbient humidity < 80 % r.h.Power supply 8 x 1.5 V AA batteries9 V power supplyCurrent consumption of the measuring device 500 mA DCClamp-on ammeter 34 mA DCMaximum cable diameter clip-on ammeter: 50 mmDimensions 225 x 125 x 64 mmClamp meter 210 x 64 x 33 mmClamping jaw 86 mm (external)Weight of meter: 948 g (incl. Batteries)Clamp-on ammeter 467 g (incl. Cable)
- Product type
Network cable tester
- Display
LCD
- Optical display
Yes
- Test sockets
RS232
- Dim
(L x W x H) 125 x 64 x 225 mm
Manufacturer's standards (no certificate)
- Weight
948 g
- Range
Networks
- Reading category
CAT III 600 V
- Width
64 mm
- Height
225 mm
- Length
125 mm
- Depth
64 mm
- Type
PCE-PA 8300-1
- Display (details)
LCD
- Power supply (details)
9 V
Documents & Downloads
Datasheet
Datasheet 2813621 Network cable tester PCE-PA 8300-1 PCE Instruments PCE-PA 8300-1 Networks
User & Safety Instructions
User & Safety Instructions 2813621 Network cable tester PCE-PA 8300-1 PCE Instruments PCE-PA 8300-1 Networks
Description

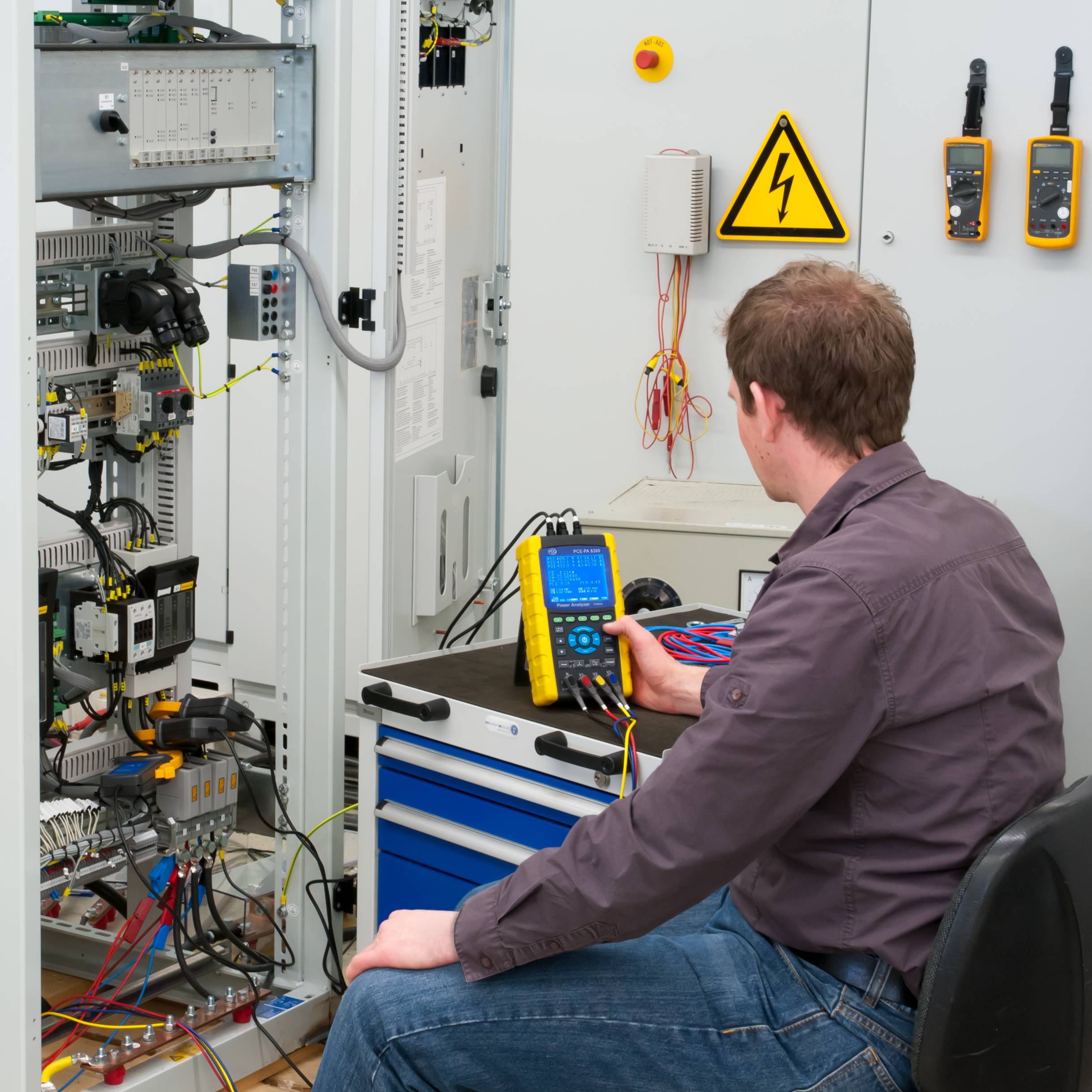

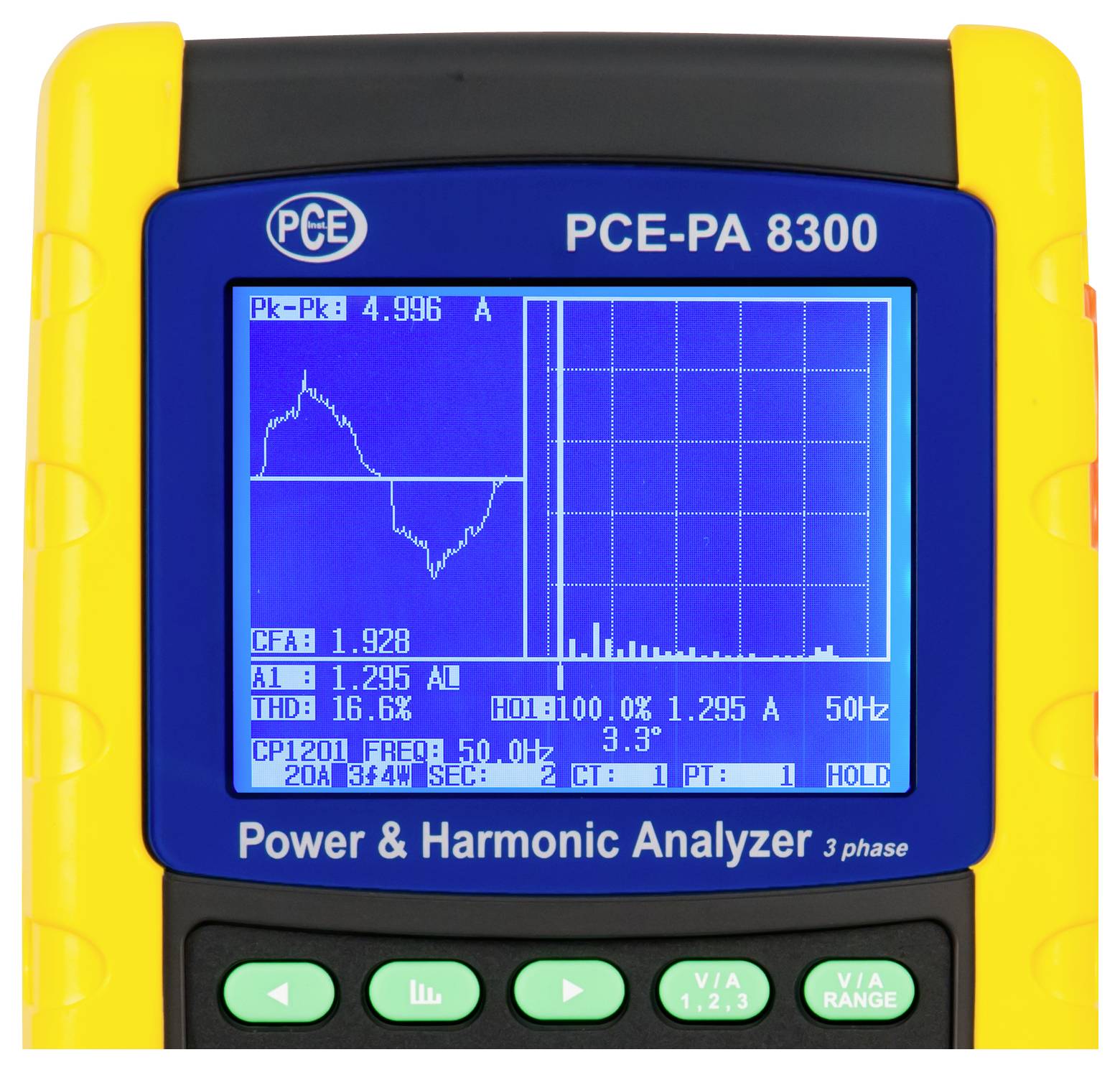

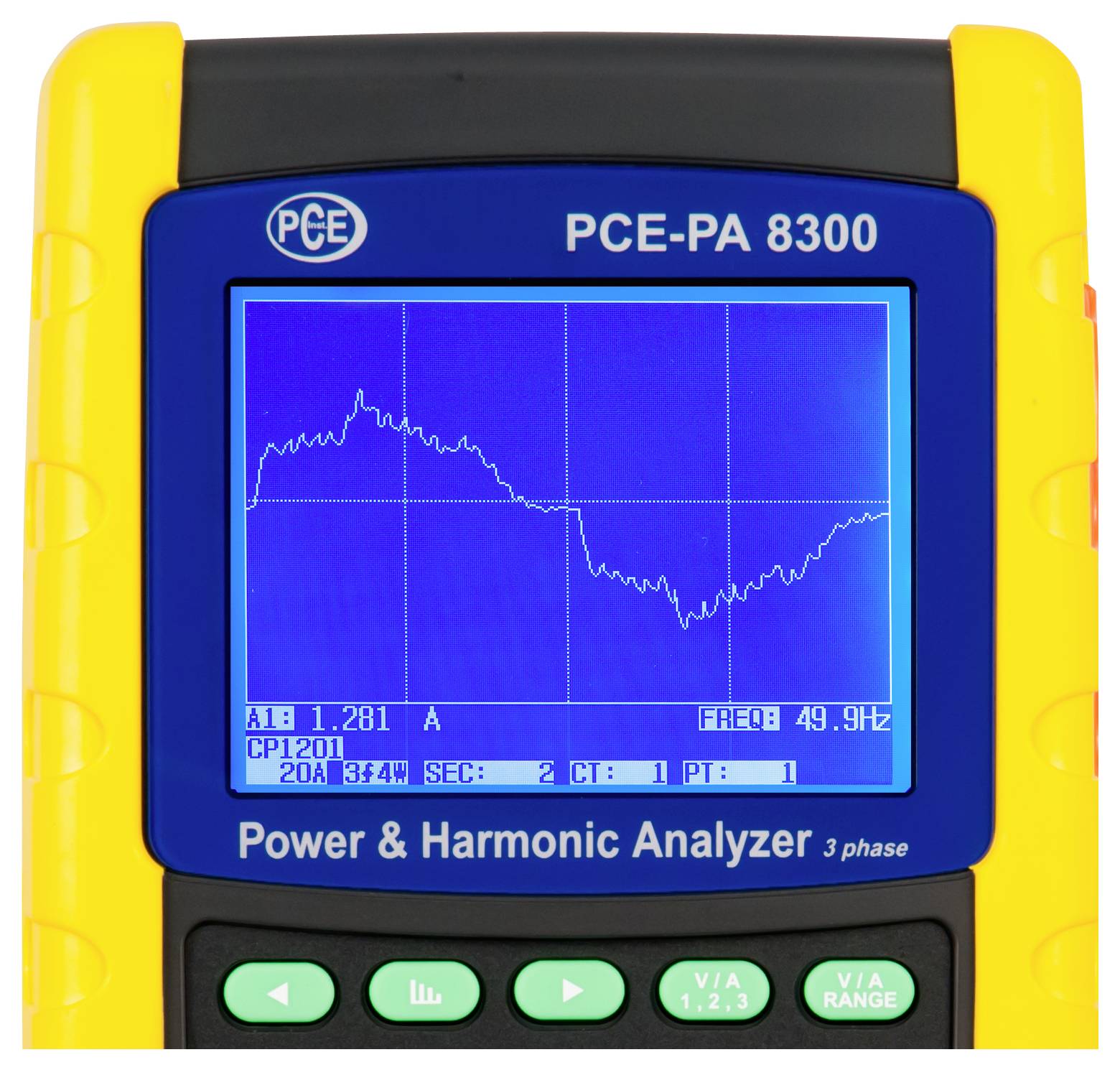

The power meter PCE-PA 8300-1 impresses with its simple handling. The power meter stores all measured values on an SD card. The PCE-PA 8300-1 power meter can be used for power measurement and mains analysis. Power can be measured from the power meter up to 9999 MW. For network analysis, the PCE-PA 8300-1 power meter can exactly determine harmonics and harmonics up to the 50th order.All measured values are displayed on the graphic LCD. Thus, it is not a problem to show the mains distortions with the power meter. For an exact analysis of power and performance, the measured data can be stored in a freely adjustable storage interval on an SD-memory card. This enables long-term recordings with the PCE-PA 8300-1 power meter.
This text is machine translated.
This text is machine translated.
Features

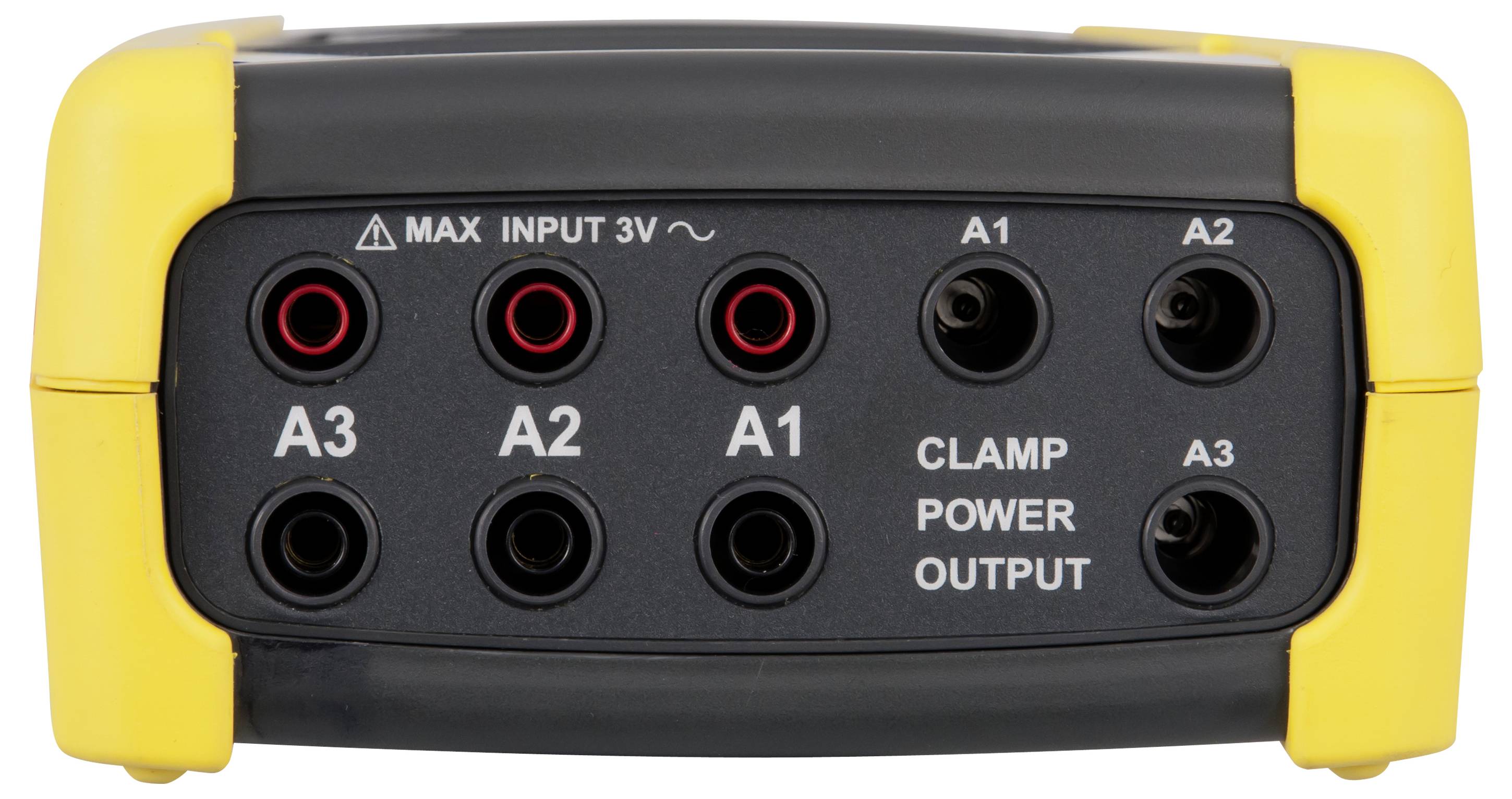

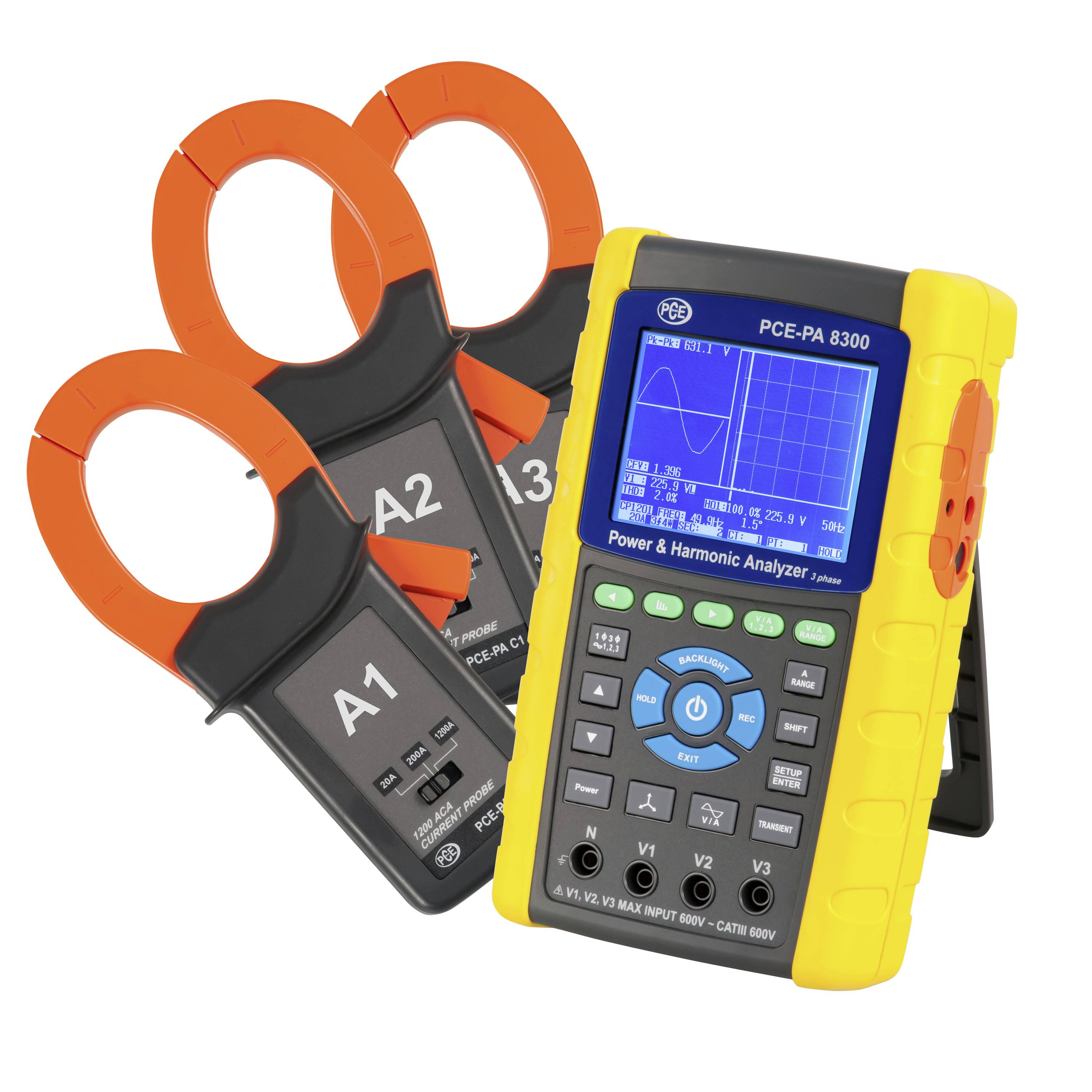

- Voltage measurement: 10 ... 600 V ACCurrent measurement: 20 ... 1,200 A AC Power measurement: 0 kW ... 9.999 MW (VA/VAR)Harmonics and harmonic analysisIncludes 3 x clip-on ammeters
Scope of delivery

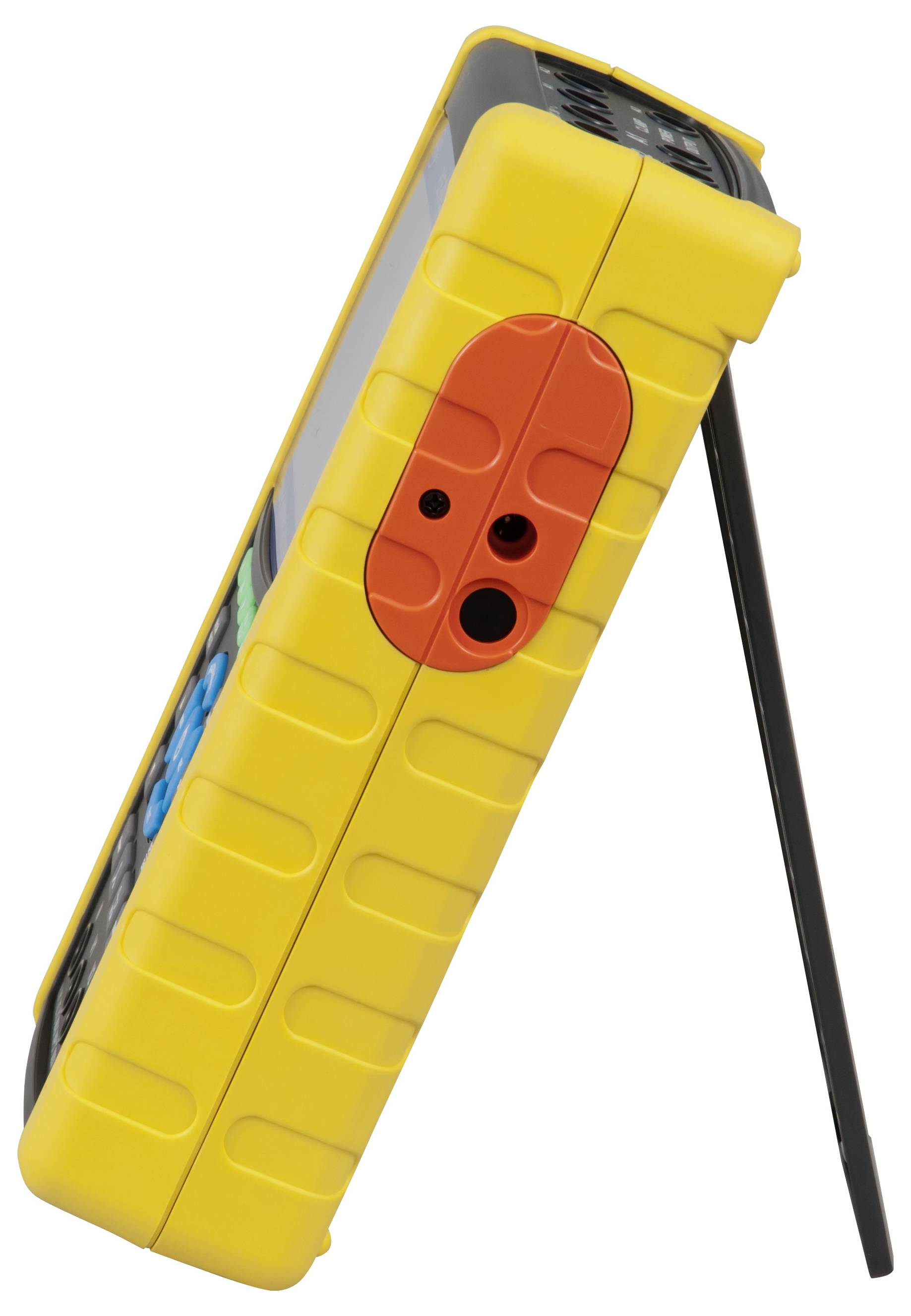

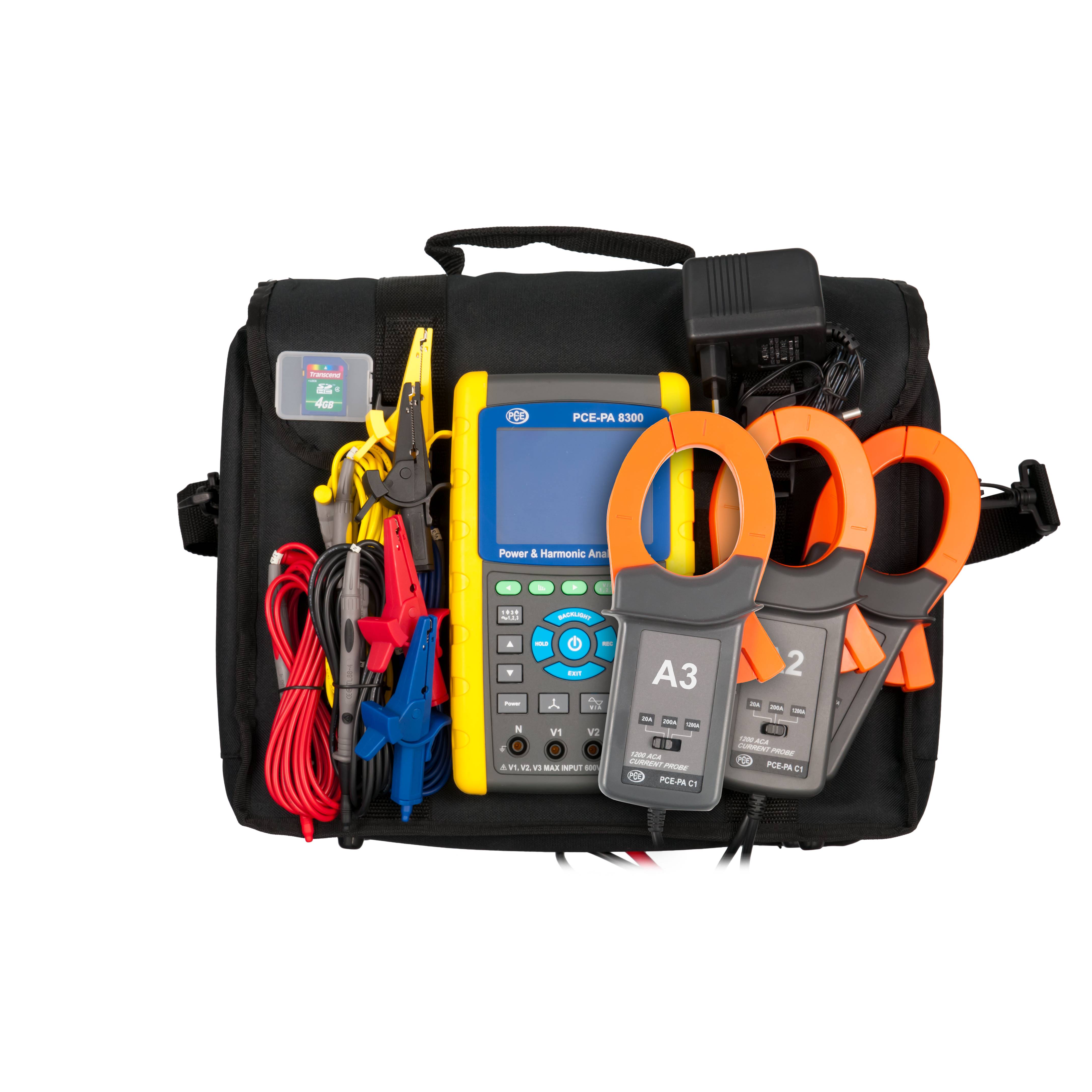

- 1 x power measurement PCE-PA 8300-13 x clamp-on ammeter4 x insulated crocodile clips4 x safety test leads6 x 1.5 V AA battery1 x 9 V mains adapter1 x Carrying case1 x 2 GB SD memory card1x user manual
