Network cable tester PCE-VDV 10 PCE Instruments PCE-VDV 10 Networks
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-VDV 10
Technical specifications
- General Technical Data
- Measurement functions continuity test, wiring test, short-circuit test, wire pair test, shielding test

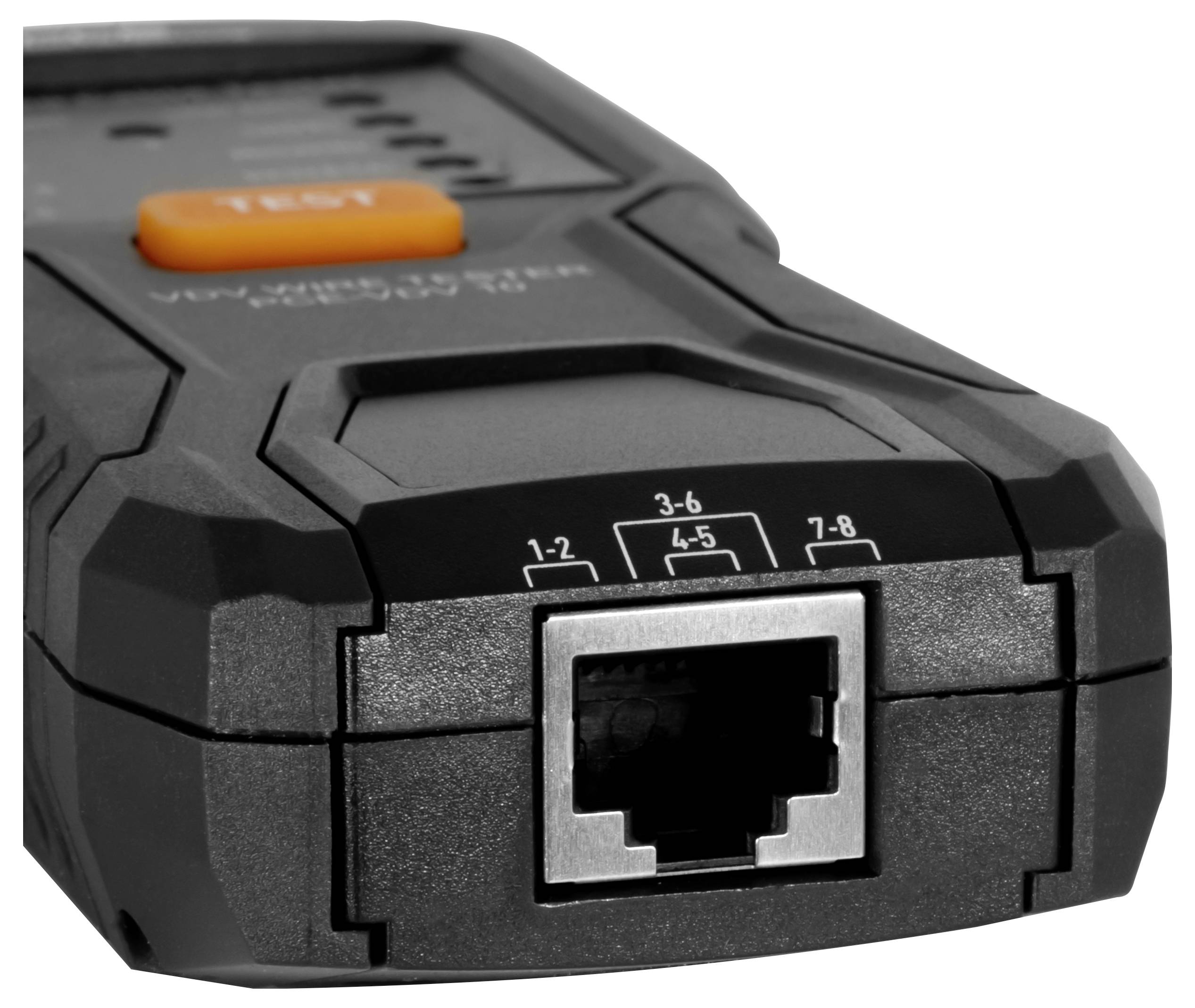

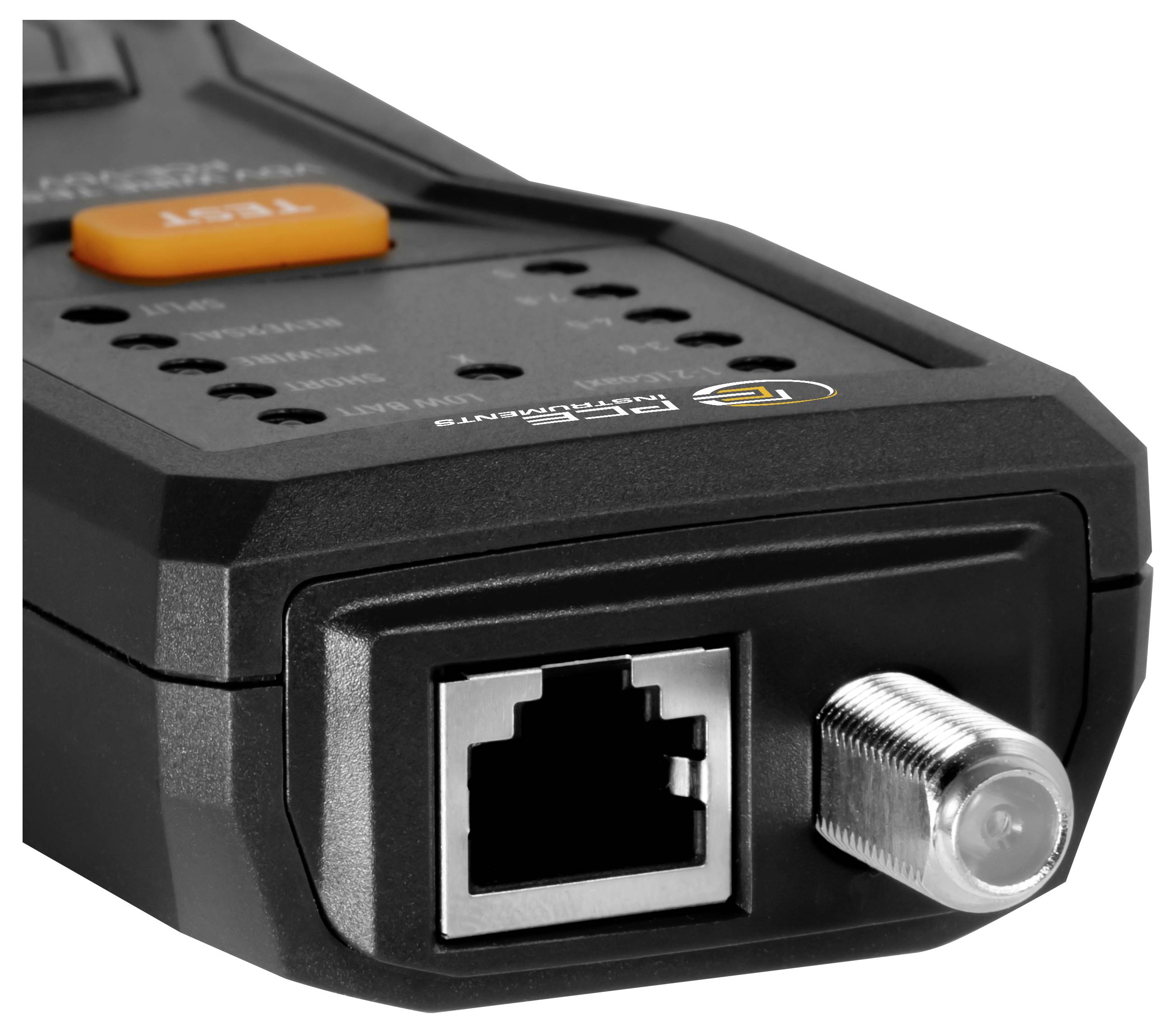

- Connections RJ45, F-socket
- Cable types - coaxial,- CAT 3,- CAT 5,- CAT 5e,- CAT 6,- CAT 6A,- CAT 7,- CAT 7A
- max. INPUT VOLTAGE 60 V DC / 55 V AC
- Protection class (device) IP20
- Power supply batteries

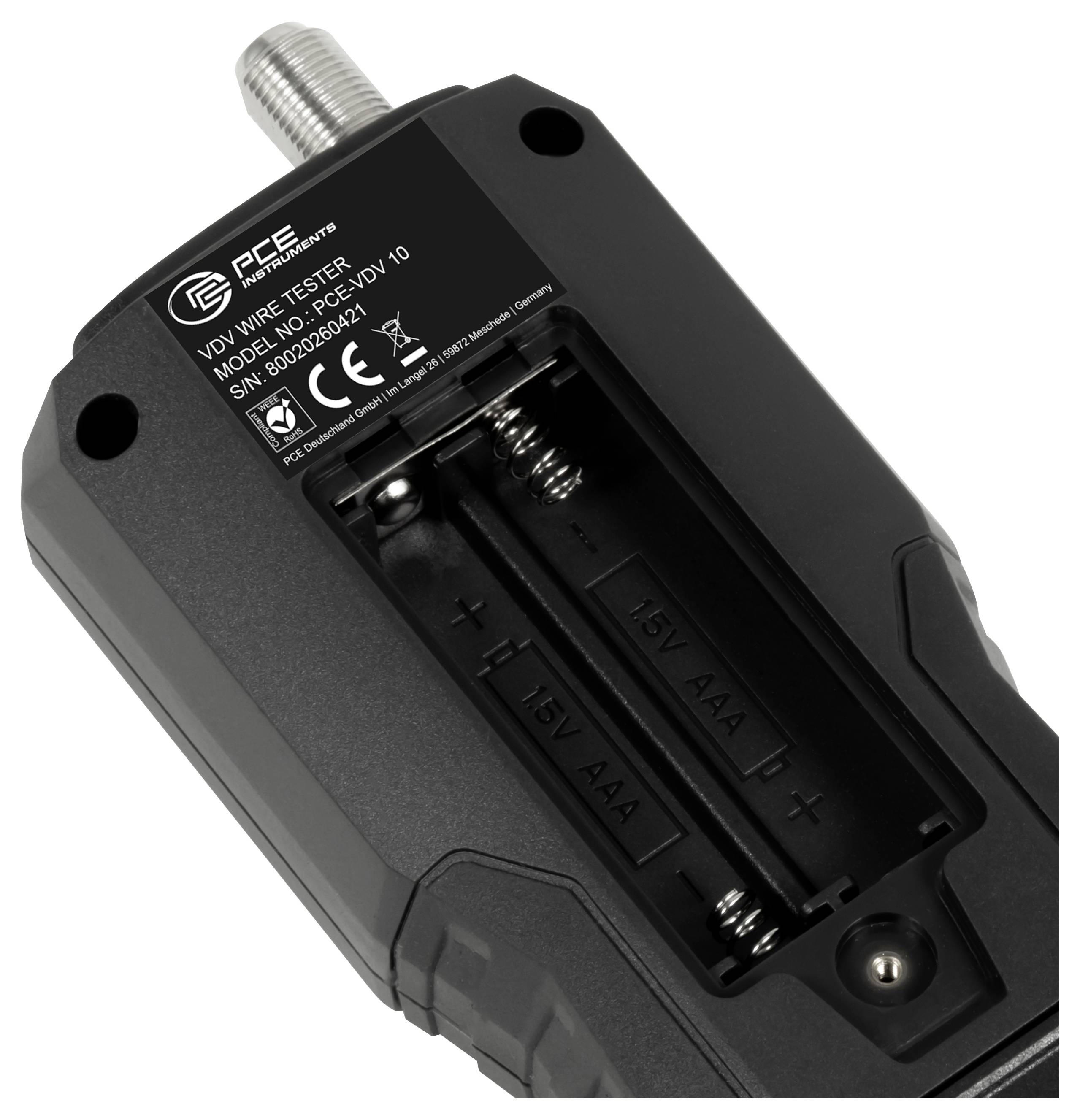

- Battery 2 x 1.5 V AAA battery , alkaline-manganese
- Capacity 1270 mAh
- Operating conditions 0 ... 50 °C , 10 ... 90 (non-condensing)% r.H.
- Storage conditions -20 ... 60 °C , 10 ... 90 (non-condensing)% r.H.
- Dimensions ( L x W x H ) 55 x 28 x 140 mm
- Weight 119 g
- Product type
Network cable tester
- Function
Location
- Acoustic signal
No
- Display
LED
- Optical display
Yes (built-in)
- Test sockets
RJ45 socket
F socket
- Dim
(L x W x H) 55 x 28 x 140 mm
Manufacturer's standards (no certificate)
- Weight
119 g
- Range
Networks
- Width
28 mm
- Height
140 mm
- Length
55 mm
- Type
PCE-VDV 10
Documents & Downloads
Datasheet
Datasheet 3812983 Network cable tester PCE-VDV 10 PCE Instruments PCE-VDV 10 Networks
User & Safety Instructions
User & Safety Instructions 3812983 Network cable tester PCE-VDV 10 PCE Instruments PCE-VDV 10 Networks
Description

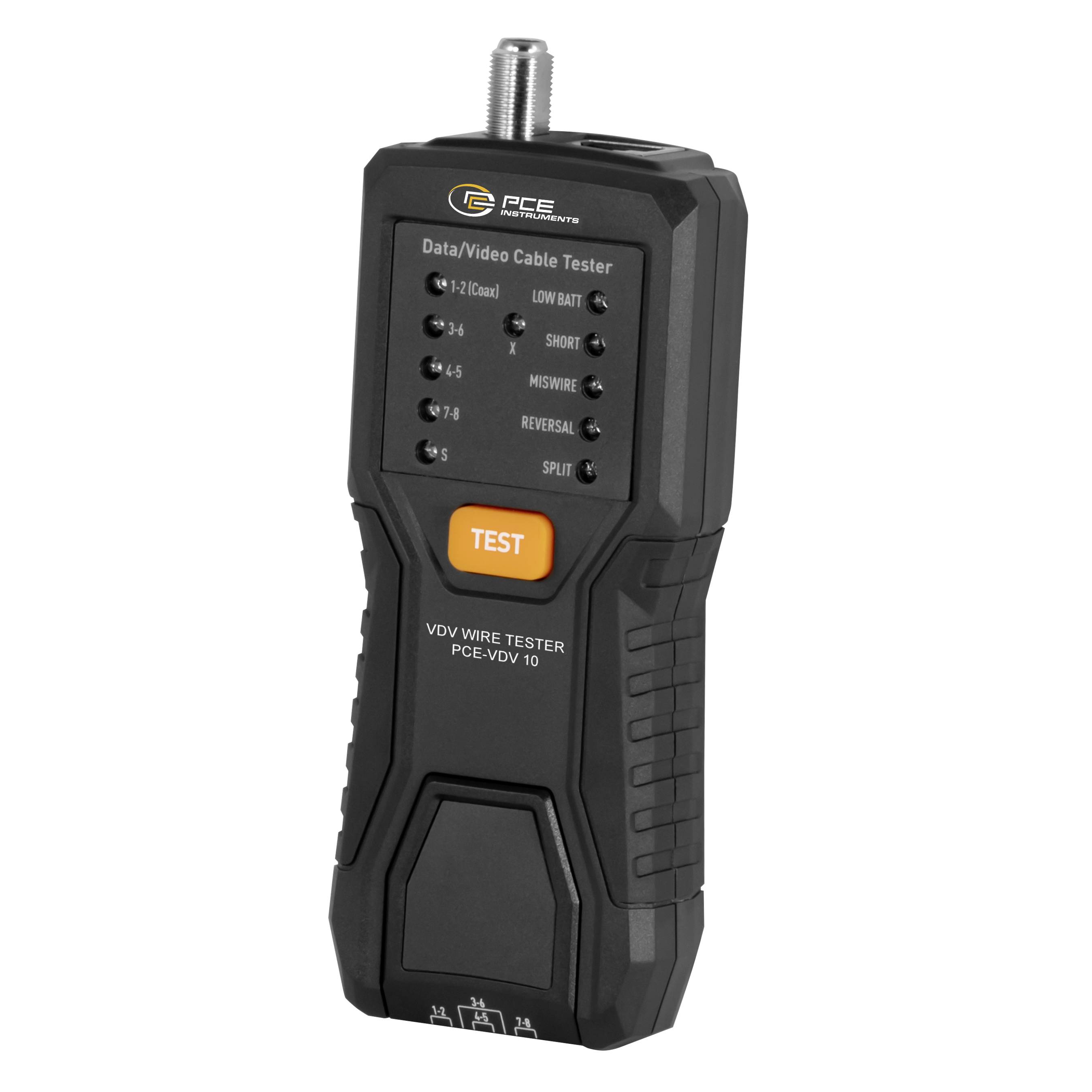

The VDV cable tester is a portable tester for diagnosing network and coaxial faults and is used for quick inspection of structured cabling.The VDV cable tester supports shielded and unshielded twisted pair cables of the categories CAT 3, CAT 5, CAT 5e, CAT 6, CAT 6A, CAT 7, CAT 7A and coaxial cables, used in TV, antenna and surveillance systems.
The test is carried out using a two-part system consisting of a main unit and a remote unit, whereby even fixed lines can be tested reliably. The most important test methods include the continuity check of the wires (pins 1... 8), the wiring test to check the correct assignment of wire pairs and the detection of short circuits, miswiring and split pair errors. In addition, the shielding of shielded cables is checked. The test range includes cable lengths up to 305 m, while the minimum cable length for split-pair detection is approximately 0.5 m.

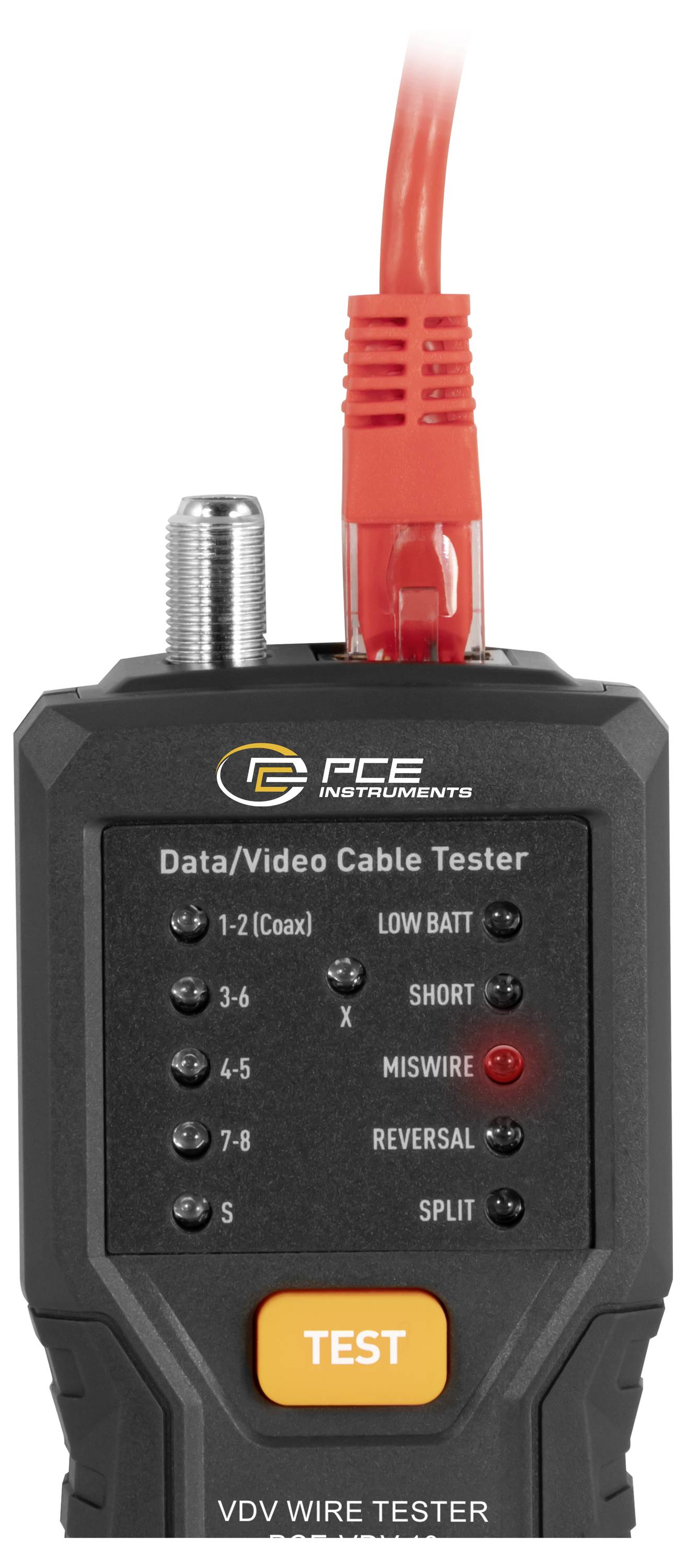

Our VDV cable tester works with test signals transmitted between the main unit and the remote unit. The results are displayed via LED displays. Permanently lit LEDs indicate correct wiring, while flashing LEDs indicate errors in the respective wire pairs. Additional status LEDs indicate the type of error such as short circuit, incorrect wiring, reverse (reverse) or split pair.
The VDV cable tester is used in network technology, building cabling as well as in IT and communications installations and is intended for electrical engineers, network technicians and service technicians for a quick check of conductor paths.
This text is machine translated.
The test is carried out using a two-part system consisting of a main unit and a remote unit, whereby even fixed lines can be tested reliably. The most important test methods include the continuity check of the wires (pins 1... 8), the wiring test to check the correct assignment of wire pairs and the detection of short circuits, miswiring and split pair errors. In addition, the shielding of shielded cables is checked. The test range includes cable lengths up to 305 m, while the minimum cable length for split-pair detection is approximately 0.5 m.
Our VDV cable tester works with test signals transmitted between the main unit and the remote unit. The results are displayed via LED displays. Permanently lit LEDs indicate correct wiring, while flashing LEDs indicate errors in the respective wire pairs. Additional status LEDs indicate the type of error such as short circuit, incorrect wiring, reverse (reverse) or split pair.
The VDV cable tester is used in network technology, building cabling as well as in IT and communications installations and is intended for electrical engineers, network technicians and service technicians for a quick check of conductor paths.
This text is machine translated.
Scope of delivery
- 1 x VDV-cable tester PCE-VDV 10
- 1 x coax adapter (black)
- 1 x coax patch cable (black)
- 2 x data patch cable 15 cm (red)
- 2 x AAA 1.5 V batteries
- 1x user manual
