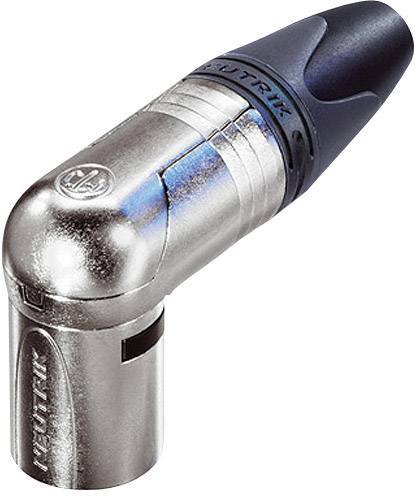

Neutrik NC4MRX XLR connector Plug, right angle Number of pins: 4 Silver 1 pc(s)
EAN:
Part number:
Item no:
Product type
XLR connector
Connector type
Plug, right angle
Connection
Soldering
Number of pins
4
Contact material
Silver plated
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
5% = € 0.75
€ 14.37
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.12 / piece)
€ 15.12
plus VAT.
14-day return policy included
Neutrik NC4MRX XLR connector Plug, right angle Number of pins: 4 Silver 1 pc(s)
Highlights & Details
- 5 selectable cable-exit positions
- Coding and marking possible through coloured rings and anti-kink sleeves.
Technical specifications
- Type
Angled
- Product type
XLR connector
- Connector type
Plug, right angle
- Factory colour
Silver
- Connection
Soldering
- Number of pins
4
- Type
NC 4 MRX
- Contact material
Silver plated
- Manufacturer part #
NC4MRX
- Type
NC4MRX
16
- Connector cross section
1.50 mm²
- Content
1 pc(s)
- Bend relief
Yes
- Nominal voltage
50 V AC
- Nominal current
7.5 A
- Temperature range
-30 to +80 °C
- Seal type
None
- Leading contact (PE)
Yes
- Pins
4
- Connection
Soldering
- Cable diameter (details)
3.50 mm
Documents & Downloads
Datasheet
Datasheet 730627 Neutrik NC4MRX XLR connector Plug, right angle Number of pins: 4 Silver 1 pc(s)
User & Safety Instructions
User & Safety Instructions 730627 Neutrik NC4MRX XLR connector Plug, right angle Number of pins: 4 Silver 1 pc(s)
Information
Information 730627 Neutrik NC4MRX XLR connector Plug, right angle Number of pins: 4 Silver 1 pc(s)
Description
The RX serie is the right-angled version of the XX cable plug series. The successor of the RC series offers various new features, which make the plug still more reliable. The cable plugs are now simpler to mount, the contacts are more robust and even the cable strain relief has been improved.
