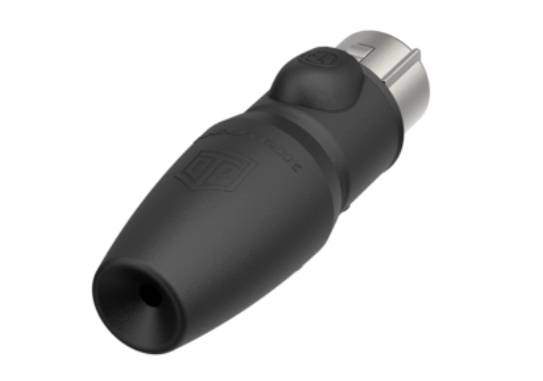

Neutrik NC5FX1-TOP-14 XLR connector Connector, straight Number of pins: 5 Black 1 pc(s)
EAN:
Part number:
Item no:
Product type
XLR connector
Connector type
Connector, straight
Connection
Connector
Number of pins
5
Factory colour
Black
Number
Total (€ 9.24 / piece)
€ 9.24
plus VAT.
14-day return policy included
Highlights & Details
5-pin cable socket
- XLR connector
- Connector, straight
Technical specifications
- XLR connection type
- Gender: Female
- Contact resistance 3 mΩ
- Rated current per contact 16 A.
- Nominal voltage: 50 V
- External cable diameter 5 - 8 mm
- Wire thickness: Max. 1 mm², 18 AWG
- Socket: UV resistant rubber
- Product type
XLR connector
- Connector type
Connector, straight
- Factory colour
Black
- Connection
Connector
- Number of pins
5
- Manufacturer part #
NC5FX1-TOP-14
- Type
NC5FX1-TOP-14
18
- Content
1 pc(s)
- Cable Ø (max.)
8 mm
- Cable Ø up to
5 mm
- Cable Ø range
5 - 8 mm
IP65
- Temperature range
-30 °C to 80 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2210039 Neutrik NC5FX1-TOP-14 XLR connector Connector, straight Number of pins: 5 Black 1 pc(s)
Description
The X-TOP Series is a "Heavy-Duty" XLR cable connector for outdoor use In the external area protected by connecting with appropriate cable / chassis plugs of the XLR-TOP series (IP65).
This text is machine translated.
This text is machine translated.
Features
- Robust, sealed XLR connector series for harsh and demanding environments
- External protection according to IP65
- Uses impact-resistant, UV-resistant materials
- TOP approval with consideration of UL50E
