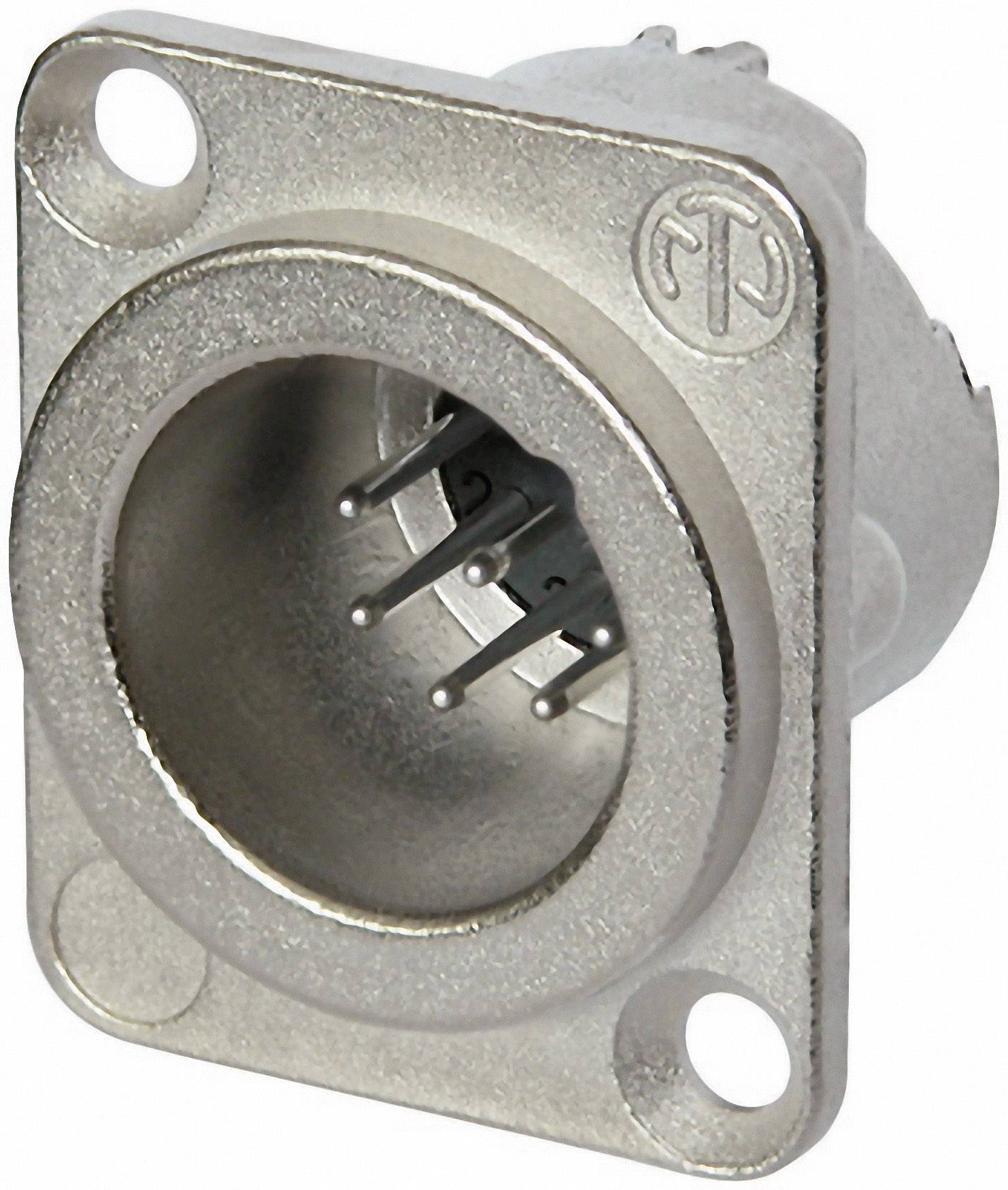

Neutrik NC7MD-LX XLR connector Sleeve plug, straight pins Number of pins: 7 Silver 1 pc(s)
Part number:
Item no:
Product type
XLR connector
Connector type
Sleeve plug, straight pins
Connection
Soldering
Number of pins
7
Contact material
Silver plated
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 23.52
3
4% = € 1.02
€ 22.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 23.52 / piece)
€ 23.52
plus VAT.
14-day return policy included
XLR flanged bushing
Highlights & Details
- 3 shield contacts
- Panel mounting
Technical specifications
- Product type
XLR connector
- Connector type
Sleeve plug, straight pins
- Factory colour
Silver
- Connection
Soldering
- Number of pins
7
- Contact material
Silver plated
- Manufacturer part #
NC7MD-LX
- Type
NC7MD-LX
- Content
1 pc(s)
- Nominal voltage
50 V AC
- Nominal current
5 A
- Temperature range
-30 - +80 °C
- Seal type
None
- Leading contact (PE)
Yes
Documents & Downloads
Datasheet
Datasheet 651163 Neutrik NC7MD-LX XLR connector Sleeve plug, straight pins Number of pins: 7 Silver 1 pc(s)
User & Safety Instructions
User & Safety Instructions 651163 Neutrik NC7MD-LX XLR connector Sleeve plug, straight pins Number of pins: 7 Silver 1 pc(s)
Description
The DLX series in the compact metal housing with integrated ground contact, the excellent shielding and an excellent protection against HF interference. An ideal pairing is produced by the combination with the EMC XLR cable connector.
This text is machine translated.
This text is machine translated.
Hints
Leading ground contact prevents the "cracking" when plugging
