Neutrik NE8MX-B-TOP-14 Connector Plug Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector
Connector type
Plug
Connection
RJ45
Content
1 pc(s)
Type
NE8MX-B-TOP-14
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.45
5
6% = € 0.32
€ 5.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.45 / piece)
€ 5.45
plus VAT.
14-day return policy included
Technical specifications
- Type
NE8MX-B-TOP-14
- Product type
Connector
- Connector type
Plug
- Connection
RJ45
- Factory colour
Black
- Content
1 pc(s)
- Max. temperature
+80 °C
- Min. temperature
-30 °C
- Cable Ø (max.)
10 mm
- Cable Ø up to
8 mm
- Case material
Metal
- Manufacturer part #
NE8MX-B-TOP-14
- Cable Ø range
8 - 10 mm
- Colour code
Black
- Feature
shielded
IP65
- Packaging type
Piece
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3123461 Neutrik NE8MX-B-TOP-14 Connector Plug Piece 1 pc(s)
Description

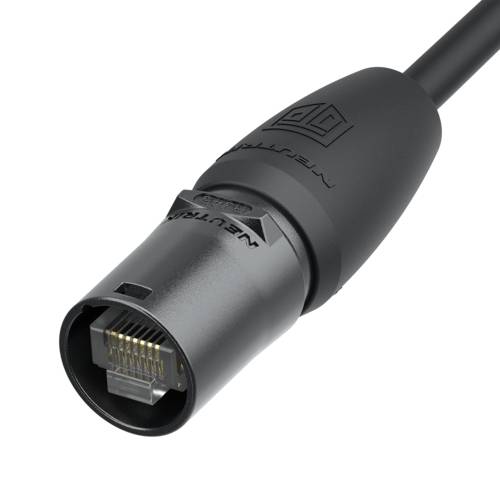

The cable plug carrier consists of a black chrome-plated casing, a chuck and a sleeve. The sleeve is suitable for cable diameters of 8 - 10 mm. Only for non-pre-fabricated cables. The cable carrier does not contain an RJ45 connector. Protection class IP65 and TOP-approval under consideration of UL50E by connection with appropriate cable or mounted plugs of the XLR TOP-series.
This text is machine translated.
This text is machine translated.
Features
- The RJ45 system for harsh and demanding environments
- Cable holder accepts the most common RJ45 plugs
- IP65 protection and TOP-approval according to UL50E by connection with appropriate cable or mounting plugs of the XLR TOP-series
- Robust die-cast housing and unique collet strain relief
- Protects Ethernet connections in a variety of commercial applications and is designed to prevent damage to the fragile components of standard RJ45 connectors
- Enables the mounting of non-pre-fabricated conventional RJ45 cables
