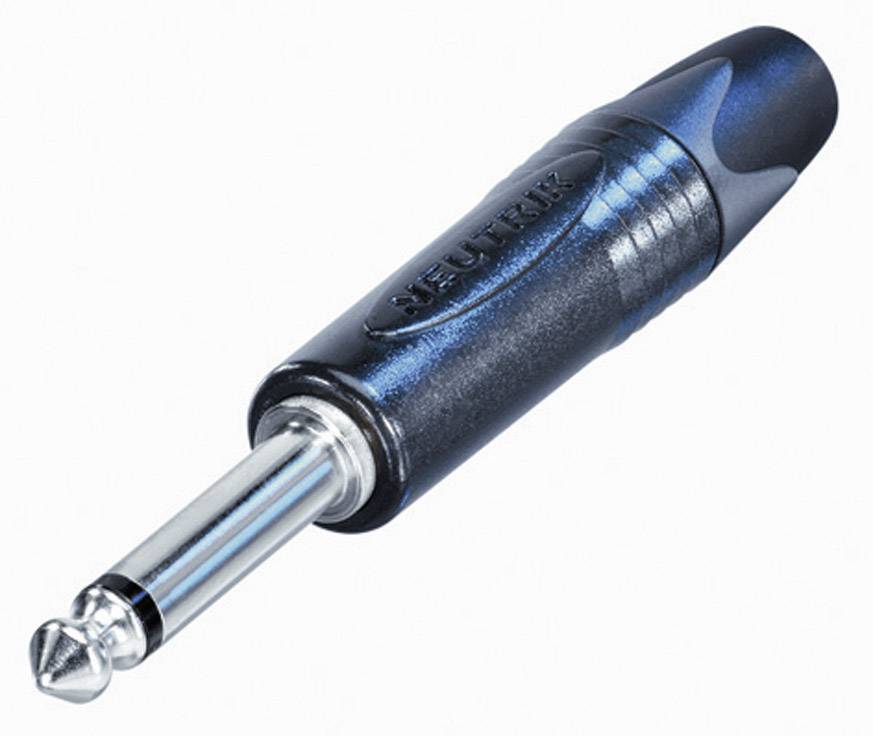

Neutrik NP2X-BAG-CON 6.35 mm audio jack Plug, straight Number of pins: 2 Mono Black 1 pc(s)
EAN:
Part number:
Item no:
Product type
6.35 mm audio jack
Connector type
Plug, straight
Connection
Soldering
Number of pins
2
Contact material
Nickel plated
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.45
5
6% = € 0.32
€ 5.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.45 / piece)
€ 5.45
plus VAT.
14-day return policy included
Highlights & Details
Jack plug 6.35 mm
- 6.35 mm audio jack
- Plug, straight
Technical specifications
- Product type
6.35 mm audio jack
- Connector type
Plug, straight
- Factory colour
Black
- Connection
Soldering
- Number of pins
2
- Contact material
Nickel plated
- Manufacturer part #
NP2X-BAG-CON
- Type
NP2X-BAG-CON
18
- Mating cycles
1000
- Audio channels
Mono
- Outside Ø
6.35 mm
- Content
1 pc(s)
- Bend relief
No
- Temperature range
-20 - +65 °C
- Connector
Jack 6.3 mm male
- Cable diameter (details)
4 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 312123 Neutrik NP2X-BAG-CON 6.35 mm audio jack Plug, straight Number of pins: 2 Mono Black 1 pc(s)
Description
The X series offers the slimmest 6.35mm jack plugs with proven Neutrik collets strain relief in the market. Through a width of only14.5 mm, the slim latch plug is ideally suited for high density panels on Jack-Fields(15.88 mm Jack-Raster) . The precision milled, one piece contact-top without rivets makes these plug series unique and prevents getting caught in the latch socket and the breaking of the tip.
Areas of application: ideal for Guitars applications, Instruments cables, Stage-Boxes, Loud speaker, Amplifiers and Mixers.
This text is machine translated.
Areas of application: ideal for Guitars applications, Instruments cables, Stage-Boxes, Loud speaker, Amplifiers and Mixers.
This text is machine translated.
