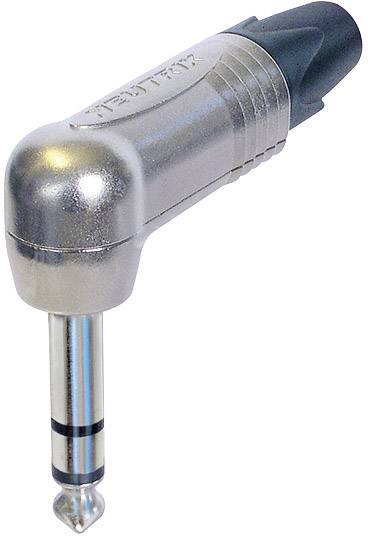

Neutrik NP3RX 6.35 mm audio jack Plug, right angle Number of pins: 3 Stereo Silver 1 pc(s)
EAN:
Part number:
Item no:
Product type
6.35 mm audio jack
Connector type
Plug, right angle
Connection
Soldering
Number of pins
3
Contact material
Nickel plated
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
14-day return policy included
Neutrik NP3RX 6.35 mm audio jack Plug, right angle Number of pins: 3 Stereo Silver 1 pc(s)
Highlights & Details
- 6.35 mm
- Angled plug
- Stereo
Technical specifications
- Type
Angled
- Product type
6.35 mm audio jack
- Connector type
Plug, right angle
- Factory colour
Silver
- Connection
Soldering
- Number of pins
3
- Type
NP 3 RX
- Contact material
Nickel plated
- Manufacturer part #
NP3RX
- Type
NP3RX
18
- Mating cycles
1000
- Audio channels
Stereo
- Outside Ø
6.35 mm
- Content
1 pc(s)
- Bend relief
Yes
- Width
9.00 mm
- Temperature range
-20 - +65 °C
- Version
Plug cord
- Cable use
Cinch
- Connection type
Jack
- Pins
3/stereo
- Connection
Soldering
- Cable diameter (details)
4-7 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 730843 Neutrik NP3RX 6.35 mm audio jack Plug, right angle Number of pins: 3 Stereo Silver 1 pc(s)
User & Safety Instructions
User & Safety Instructions 730843 Neutrik NP3RX 6.35 mm audio jack Plug, right angle Number of pins: 3 Stereo Silver 1 pc(s)
Information
Information 730843 Neutrik NP3RX 6.35 mm audio jack Plug, right angle Number of pins: 3 Stereo Silver 1 pc(s)
Description
The extremely robust jack plug X serie is the successor of the existing C series. The X series offers the slimmest 6.35 mm jack plug with the tested Neutrik tongs strain relief in the market. Through a width of just 14.5 mm the slim housing is ideally suited for high plugging density on jack fields (15.88 mm Jack-grid).. The precisely machined, one-part contact-tip without rivets makes this plug series unique and prevents getting stuck in the jack socket as well as a breaking of the tip.
Application areas: Ideal for guitar applications, instruments cable, stage boxes, loudspeakers, amplifiers and mixing boards.
Application areas: Ideal for guitar applications, instruments cable, stage boxes, loudspeakers, amplifiers and mixing boards.
