Neomounts Monitor wall mount FPMA-W25 1 Display(s) 25,4 cm (10") - 76,2 cm (30") Silver Rigid
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
Highlights & Details

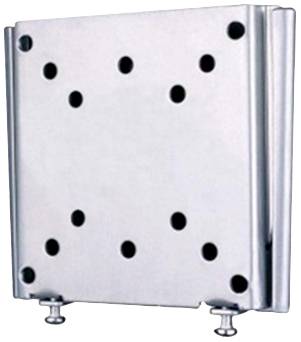

NewStar flat screen wall mount FPMA-W25
- Holder type: RigidSupports VESA standards up toSuitable for displays sized (range): 25,4 cm (10") - 76,2 cm (30")Load capacity (max.) 30 kg
Technical specifications
- Product type
Monitor wall mount
- Suitable for
25,4 cm (10") - 76,2 cm (30")
- Add-on displays
1 Display(s)
- Holder type
Rigid
No
- Max. load capacity
30 kg
No
75 x 75 mm
100 x 100 mm
- Rotation
0°
- Tilt range (bottom)
0°
- Tilt range (top)
0°
- Swivel range (left)
0°
- Swivel range (right)
0°
- Distance to wall (min.)
1.5 cm
- Distance to wall (max.)
1.5 cm

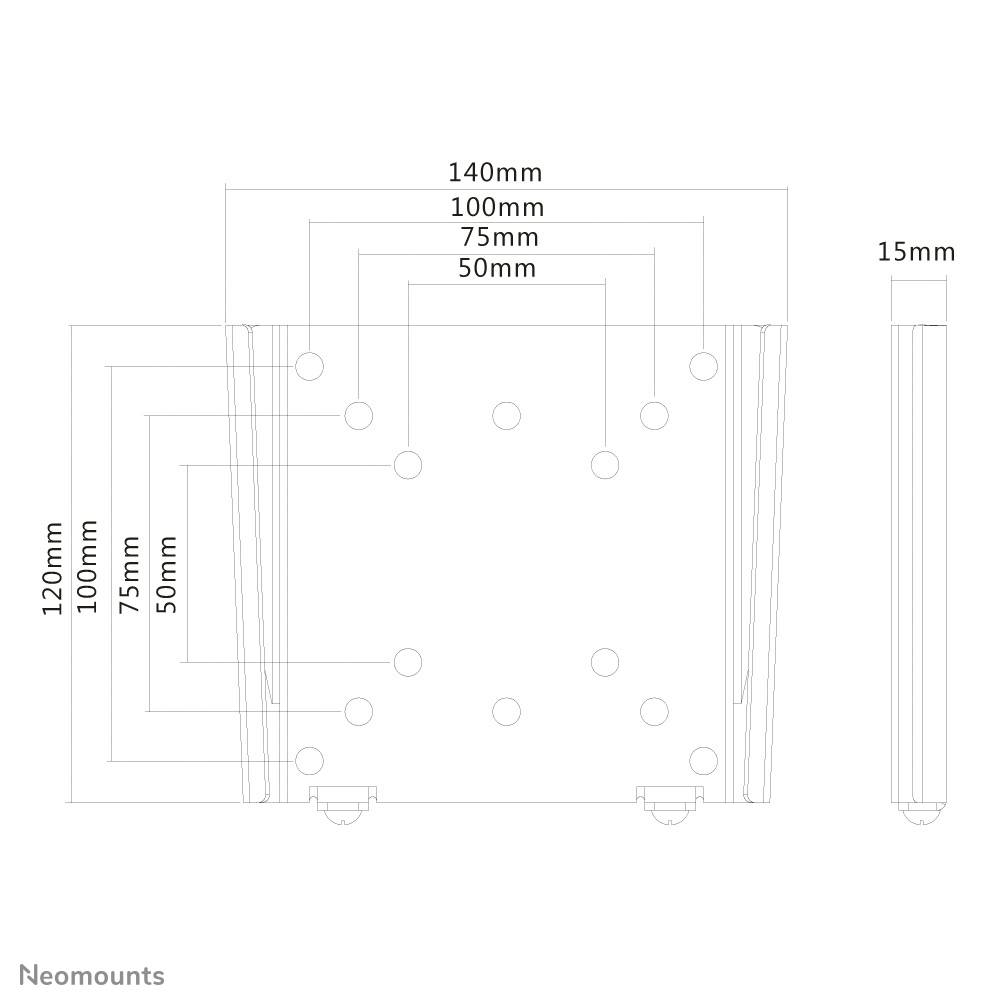

- Width
140 mm
- Height
120 mm
- Depth
10 mm
- Factory colour
Silver
- Material (details)
Aluminium
- Weight
0.7 kg
- Dim
(W x H x D) 140 x 120 x 10 mm
- Suitable for
25,4 cm (10")
25,7 cm (10,1")
26,7 cm (10,5")
27,9 cm (11")
29,5 cm (11,6")
30,5 cm (12")
30,7 cm (12,1")
31,0 cm (12,2")
31,8 cm (12,5")
32,8 cm (12,9")
Show more
- Product type description
Zubehör TFT/LCD-TV
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 615844 Neomounts Monitor wall mount FPMA-W25 1 Display(s) 25,4 cm (10") - 76,2 cm (30") Silver Rigid
User & Safety Instructions
User & Safety Instructions 615844 Neomounts Monitor wall mount FPMA-W25 1 Display(s) 25,4 cm (10") - 76,2 cm (30") Silver Rigid
Warranty Terms
Warranty Terms 615844 Neomounts Monitor wall mount FPMA-W25 1 Display(s) 25,4 cm (10") - 76,2 cm (30") Silver Rigid
Description
The NewStar wall mount, model FPMA-W25 is a fixed wall mount for flat screens up to 30”. This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Depth of this mount is 1 centimetres. NewStar FPMA-W25 is suitable for screens up to 30" (75 cm). The weight capacity of this product is 30 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 75x75 to 100x100mm. Different hole patterns can be covered using NewStar VESA adapter plates. Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema. All installation material including anti-theft lock is included with the product.
