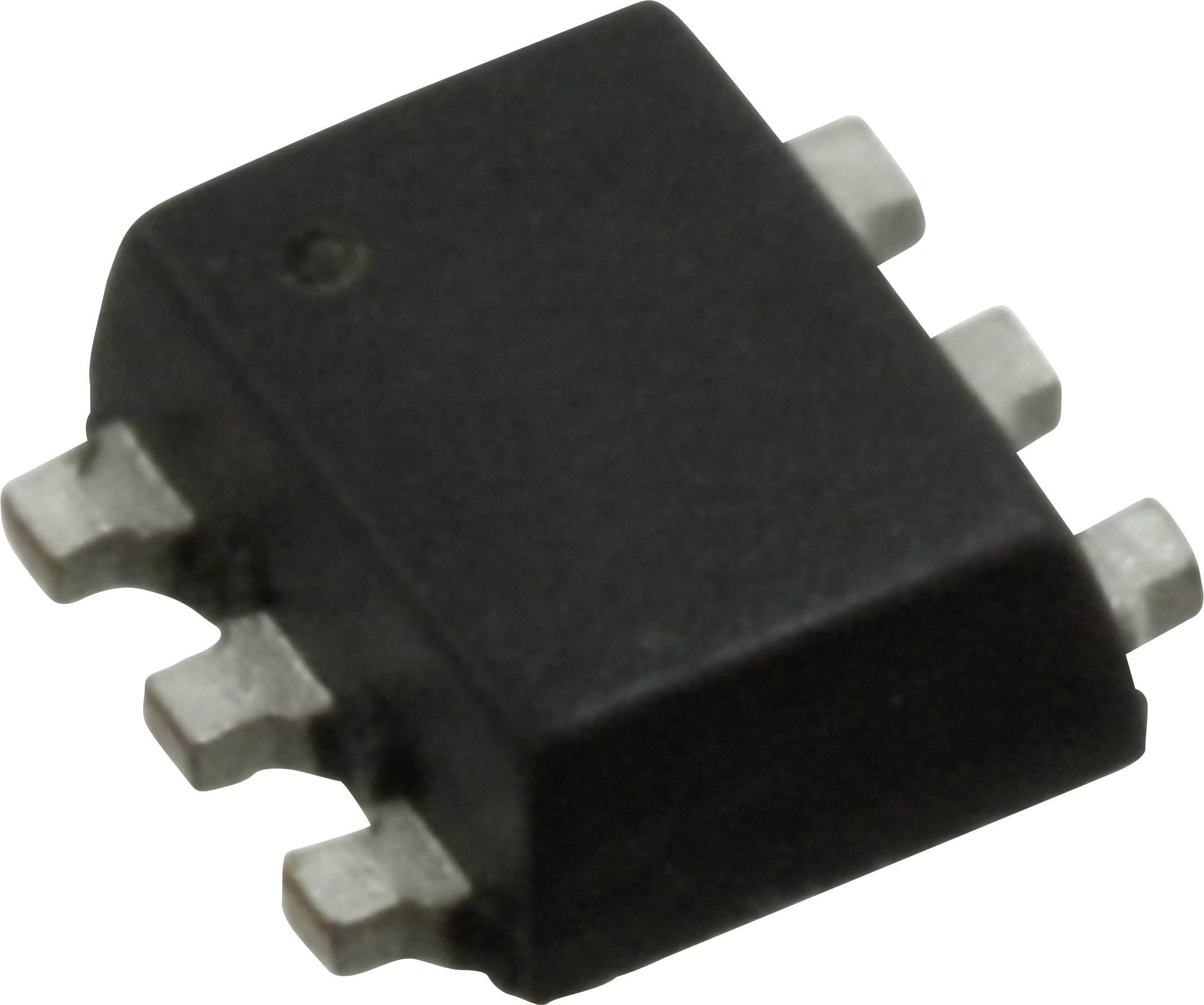

A small black electronic chip in SMD format with six terminals for mounting on a printed circuit board.

Image similar

A small black electronic chip in SMD format with six terminals for mounting on a printed circuit board.

Image similar

Enclosure

SOT 666

Reverse voltage U(R)

40 V

Forward current I(F)

120 mA

Configuration (diode)

Array - 2 x 2

Forward voltage U(F)

1 V

Datasheet (PDF)

English

Nexperia

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 0.46 / piece)

€ 4.60

plus VAT.

Report legal concerns

Technical specifications

Type: BAS40-07V,115

Enclosure: SOT 666

Manufacturer: Nexperia

Manuf. code: NEX

Reverse voltage U(R): 40 V

Forward current I(F): 120 mA

Reverse leakage current I(r): 10 µA

Configuration (diode): Array - 2 x 2

Forward voltage U(F): 1 V

Forward voltage reference: 40 mA

Reverse leakage current I(r) reference: 40 V

Operating temperature (max.): +150 °C

Mounting type: Surface-mount

RoHS-compliant

Content: 1 pc(s)

Product type: Schottky rectifier

Documents & Downloads

Datasheet

English

Datasheet 1111601 Nexperia Schottky rectifier BAS40-07V,115 SOT 666 40 V Array - 2 x 2
