Technical specifications
- Product type

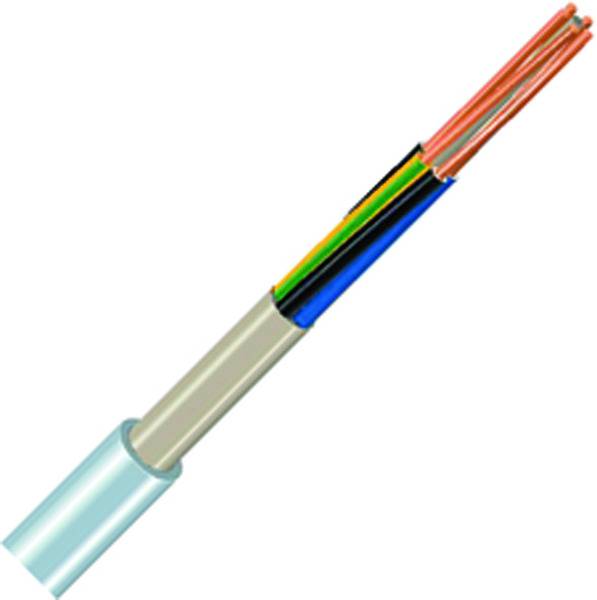

Sheathed cable
- No. of leads
3 x
- Content
100 m
- Cross section (each core)
2.5 mm²
- Insulation material
Polyethylene (PE)
- Cable features
Halogen-free
- Cable type
NHXMH-J
- Halogen-free
Yes
- Manufacturer part #
NHXMH-J 3x2,5 RG100
- Max. length sold by the metre
100 m
- Cross section
3 x 2.5 mm²
- Type
NHXMH-J 3x2,5 RG100
- Standards
Verband Deutscher Elektrotechniker e.V. (VDE)
2.5 mm²
Colour
500 V
Grey
300 V
3
9.5 mm
TRUE
TRUE
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2984757 NHXMH-J 3x2,5 RG100 Sheathed cable NHXMH-J 3 x 2.5 mm² 100 m
Description
According to DIN VDE 0250-214's layout: Single or multi-strand copper wire, insulation of cross-linked polyethylene, sheath of halogen-free polymer mixture, color: Light-gray use: Halogen-free sheathed cable with improved fire performance, minimum smoke production, no corrosive gases, for fixed laying on, in and under plaster, in dry and damp rooms, outdoors (but not in direct sunlight), but not in soil
