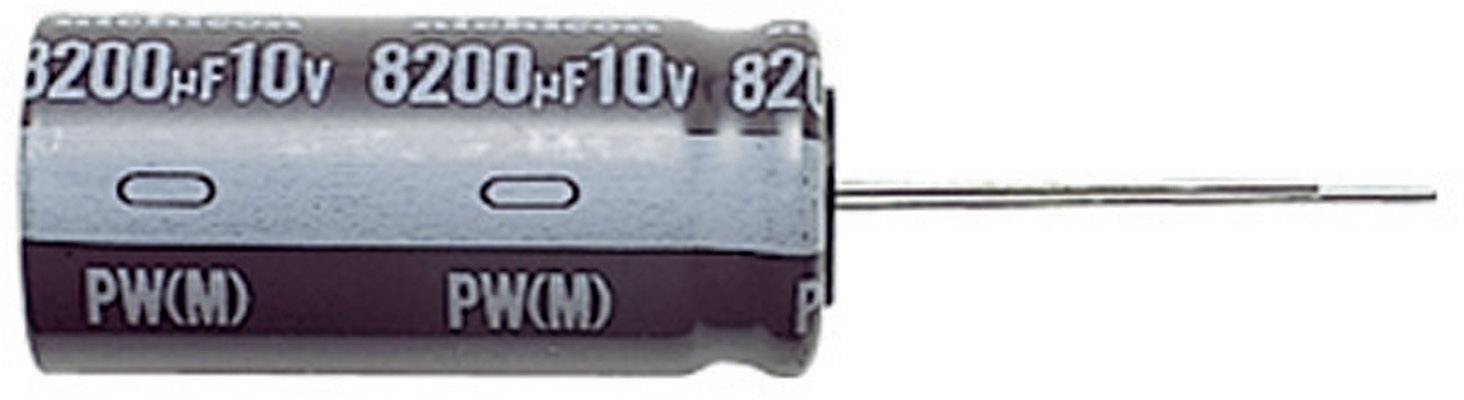

Nichicon UPW1V102MHD Electrolytic capacitor Radial lead 5 mm 1000 µF 35 V 20 % (Ø x L) 12.5 mm x 25 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrolytic capacitor
Type
Radial lead
Capacity (elec.)
1000 µF
Nominal voltage
35 V
CS
5 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
3
-
€ 2.34
9
7% = € 0.17
€ 2.17
15
10% = € 0.24
€ 2.10
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 3
Total (€ 2.34 / piece)
€ 7.02
plus VAT.
Technical specifications
- Product type
Electrolytic capacitor
- Type
Radial lead
- CS
5 mm
- Dim
(Ø x L) 12.5 mm x 25 mm
- Capacity (elec.)
1000 µF
- Nominal voltage
35 V
- Tolerance ±
20 %
- (Ø)
12.5 mm
- Content
1 pc(s)
- Length
25 mm
- Max. temperature
+105 °C
- Min. temperature
-55 °C
- Type
UPW1V102MHD
Documents & Downloads
Datasheet
Datasheet 444682 Nichicon UPW1V102MHD Electrolytic capacitor Radial lead 5 mm 1000 µF 35 V 20 % (Ø x L) 12.5 mm x 25 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 444682 Nichicon UPW1V102MHD Electrolytic capacitor Radial lead 5 mm 1000 µF 35 V 20 % (Ø x L) 12.5 mm x 25 mm 1 pc(s)
