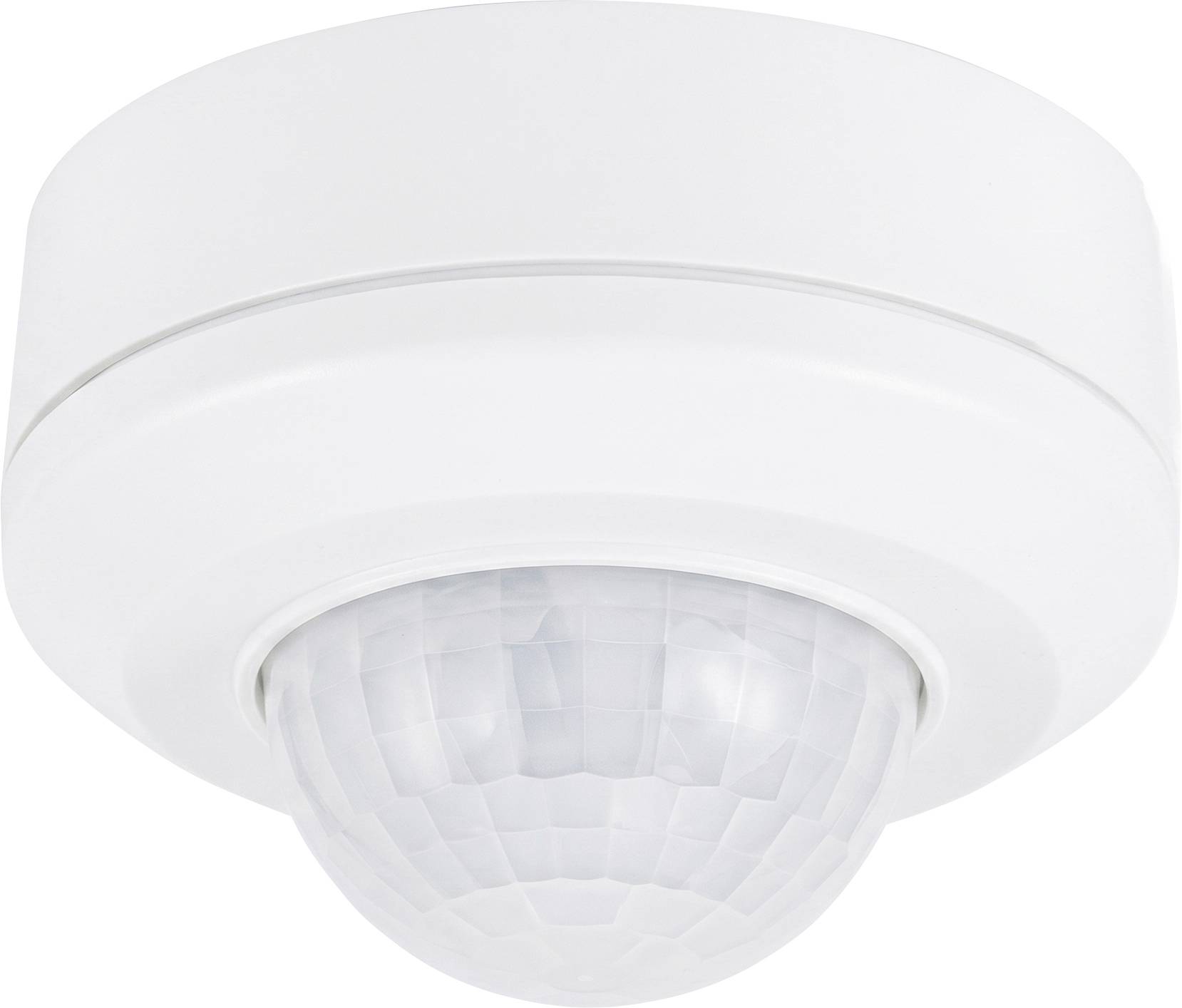

Niko 25475 Surface-mount Occupancy sensor 360 ° Relay White IP54
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Presence detector, surface-mounted Swiss Guard 0-360° presence Dualtec Master, round, white
- Ideal for all applications with high requirements as to the detection properties e.g. corridors, washrooms, underground garages and technical rooms
- Dual technology (HF and PIR) can be used universally for all areas of application
- Five different logical combinations of PIR and HF
- Can be programmed as a full or half-automatic machine
- IP54 for indoor and outdoor use (splash-proof)
Technical specifications
- Product type
Occupancy sensor
- Detection angle
360°
40 m
- Used at
Indoors
Outdoors
- Mounting type
Surface-mount
- Operating voltage
230 V
- Contact type
Relay
- Switching capacity (light bulbs)
2000 W
- Switching capacity (halogen bulbs)
2000 W
- Switching capacity (LED)
300 W
- Twilight settings
Brightness range of 5 Lux - 2000 Lux
- Time settings
Switch-off delay pulse, 10 s – 20 min
- Factory colour
White
IP54
- Operating temperature
-20 °C to +45 °C
- Type
Master-presence detector
- Length
129 mm
- Width
129 mm
- Height
83 mm
- (Ø)
130 mm
- Dim
(Ø x H) 130 mm x 83 mm
Documents & Downloads
Datasheet
Datasheet 3766551 Niko 25475 Surface-mount Occupancy sensor 360 ° Relay White IP54
User & Safety Instructions
User & Safety Instructions 3766551 Niko 25475 Surface-mount Occupancy sensor 360 ° Relay White IP54
Description
Master presence detector with Dual technology (HF and PIR). Recording characteristics can be selected using five different logical combinations of PIR and HF. Through the innovative combination of HF and PIR technology the sensitivity can be optimally adjusted to the respective situation. External switch input, full and half automatic mode, potential-free switching output. Range extension with up to 10 secondary detectors. Compatible secondary detectors: 25459, 25469
This text is machine translated.
This text is machine translated.
Features
- IP54
- 2000 W
- Constant light control
