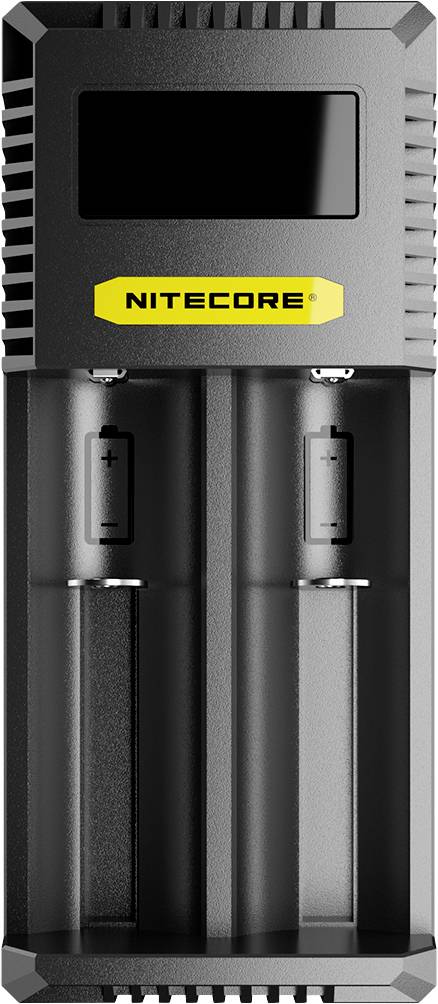

NiteCore CI2 Charger for cylindrical cells Li-ion, NiMH, NiCd 10440, 14500, 14650, 16500, 16340, 16650, 17350, 17500, 17
EAN:
Part number:
Item no:
Highlights & Details
- Intelligent USB-C charger with two slots
- QC and PD input available
- Charges two batteries simultaneously and controls each slot independently
- Up to 3,000 mA charging speed in one slot
- Compatible with Li-Ion and Ni-MH/Ni-CD batteries with automatic detection
- Automatic detection of the charging status and automatic selection of the matching voltage and the appropriate charging mode
- Automatic selection of 3 charging modes (CC, CV and -DV/dt)
- Automatic detection of batteries with high/low capacity and automatic selection of the matching charge current
- Automatic cut-off after completion of charging
- Protection against incorrect polarity and short-circuit
- Activation in the event of deep discharge
- Overcharge protection
- Made of durable and fire-resistant PC materials
- Optimal heat dissipation
- Certified according to RoHS, CE, FCC and CEC
- Worldwide insured by Ping An Insurance (Group) Company of China, Ltd.
- This text is machine translated.
Technical specifications
- INPUT POWER:5V⎓2A / 9V⎓2A / 12V⎓1.5A, 18W (MAX)
- Output power 4.2V±1% / 1.48V±1%
- Quick charge mode: 3,000mA*1 MAX / 1,500mA*2 MAX
- Standard mode: 2,000mA*1 MAX / 1,000mA*2 MAX
- Compatible with:
- IMR/Li-ion 10440, 14500, 14650, 16500, 16340 (RCCR123), 16650, 17350, 17500, 17650, 17670, 17700, 18350, 18490, 18500, 18650, 18700, 21700, 22500, 22650, 25500, 26500, 26650, 26700
- Ni-MH/Ni-CD AA, AAA, AAAA, C, D
- Dimensions: 148mm x 65mm x 37mm (5.83" x 2.56" x 1.46")
- Weight: 12.4g (4.25 oz)
- Product type
Charger
18 W
- Inputs
1x USB-C®
- Input voltage
5 V
- No. of outputs
1 x
- Outputs
1x USB-C®
- Output current (max.) - rounded
2 A
- Max. output current
2 A
- Max. output current per channel
2 A
- Type
CI2
- Suitable for
Universal
- Suitable for
IMR|Li-Ion|Ni-Cd|Ni-MH Akkus
- PSU features
Quick charger
- Dim
(L x W x H) 37 x 148 x 65 mm
- Height
65 mm
- Length
37 mm
- Width
148 mm
- Weight
120.4 g
- Factory colour
Black
- EuP Status
No
- Used at
Indoors
Fixed
Portable
- Charging method
Fast Charge
- Suitable for battery size
10440
14500
14650
16500
16340
16650
17350
17500
17650
17670
Show more
- Matching rechargeable battery
Li-ion
NiMH
NiCd
- Rechargeables included
No
- Charging slots
2
- UKCA
yes
