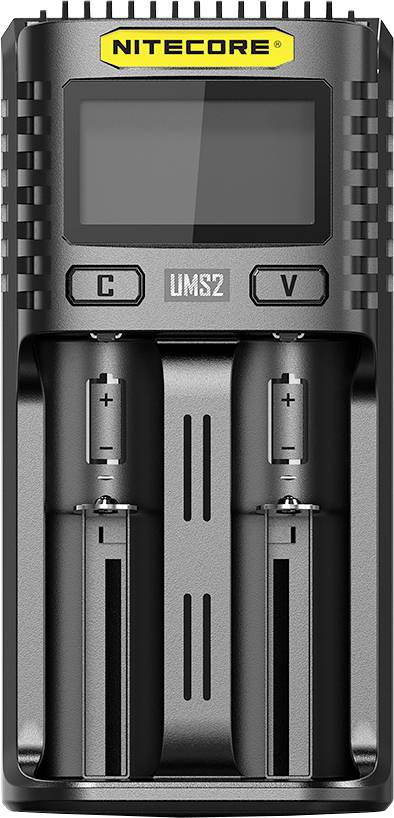

NiteCore UMS2 Charger for cylindrical cells LiFePO4, Li-ion, NiCd, NiMH 10440, 14500, 14650, 16340, 16500, 16650, 17350,
EAN:
Part number:
Item no:
Highlights & Details
- Intelligent USB-double slot-super b-charger
- QC 2.0 input available
- Charges two batteries simultaneously and controls each slot independently
- Charging speed up to 3,000 mA in one slot
- Compatible with Li-Ion and Ni-MH/Ni-CD batteries with automatic detection
- Automatic detection of the battery charge status and automatic selection of the appropriate voltage and charging mode (except LiFePO4 and 3.8 V Li-ion batteries)
- Automatic selection of 3 charging modes (CC, CV and -DV/dt)
- Energy efficient LCD display for charging information in real time
- Manual selection of charge voltage and charging current
- Automatic detection of batteries with high/low capacity and automatic selection of the matching charge current
- Automatic cut-off after completion of charging
- Protection against incorrect polarity and short-circuit
- Activation in the event of deep discharge
- Restoration of Li-Ion battery
- Automatic detection of the internal resistance of the battery and display of the battery status
- Made of durable and fire-resistant PC materials
- Optimal heat dissipation
- RoHS, CE, FCC and CEC certified
- Worldwide insured by Ping An Insurance (Group) Company of China, Ltd.
- This text is machine translated.
Technical specifications
- INPUT POWER DC 5V 9V/2A 18W (MAX)
- Output power 4.35±1% / 4.2±1% / 3.7±1% / 1.48±1%
- QC Mode: 3,000mA*1 (MAX), 1,000mA*2 (MAX)
- Compatible with: IMR/Li-ion/LiFePO4: 10440, 14500, 14650, 1650, 16500, 16340(RCCR123), 16650, 17350, 17500, 17650, 17670, 17700, 18350, 18490, 18500, 18650, 18700, 20700, 21700, 22500, 22650, 25500, 26500, 26650, 26700
- Ni-MH/Ni-CD AA, AAA, AAAA, C, D
- Dimensions: 152mmx73mmx40mm (5.98''x2.87''x1.57'')
- Weight: 157.7g (5.56oz) (Charging cable not included)
- Product type
Charger
18 W
- Inputs
2x USB-C®
- No. of outputs
2 x
- Output current (max.) - rounded
3 A
- Max. output current
3000 mA
- Max. output current per channel
3000 mA
- Type
UMS2
- PSU features
Qualcomm Quick Charge 2.0
- Dim
(L x W x H) 152 x 73 x 40 mm
- Height
40 mm
- Length
152 mm
- Width
73 mm
- Weight
157.7 g
- Factory colour
Black
- Used at
Indoors
- Charging method
QC 2.0
- Suitable for battery size
10440
14500
14650
16340
16500
16650
17350
17650
17670
18350
Show more
- Matching rechargeable battery
LiFePO4
Li-ion
NiCd
NiMH
- Rechargeables included
No
- Charging slots
2
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3410665 NiteCore UMS2 Charger for cylindrical cells LiFePO4, Li-ion, NiCd, NiMH 10440, 14500, 14650, 16340, 16500, 16650, 17350,
User & Safety Instructions 3410665 NiteCore UMS2 Charger for cylindrical cells LiFePO4, Li-ion, NiCd, NiMH 10440, 14500, 14650, 16340, 16500, 16650, 17350,
Description
Hints
Charging cable not included
