NMB Minebea 3610PS-23T-B30 Axial fan 230 V AC 54 m³/h (L x W x H) 92 x 92 x 25 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
230 V AC
Power
13 W
Type of bearing
Ball bearing
Air flow rate
54 m³/h
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 1.06
€ 23.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 24.36 / piece)
€ 39.49
-38 %
€ 24.36
plus VAT.
Technical specifications
- 2
- Product type
Axial fan
- Type
3610PS-23T-B30
- Nominal voltage
230 V AC
- Max. current consumption
90 mA
13 W
- Type of bearing
Ball bearing
- Rotational speed
3100 U/min
- Noise emission (max.)
39 dB
- Air flow rate
54 m³/h
- Connection
Type C CEE 7/16 plug 2.8 mm
- Factory colour
Black
- Material
Aluminium
Polycarbonate (PC)
100000 h
- Min. temperature
-10 °C
- Max. temperature
70 °C
- Length
92 mm
- Width
92 mm
- Height
25 mm
- Dim

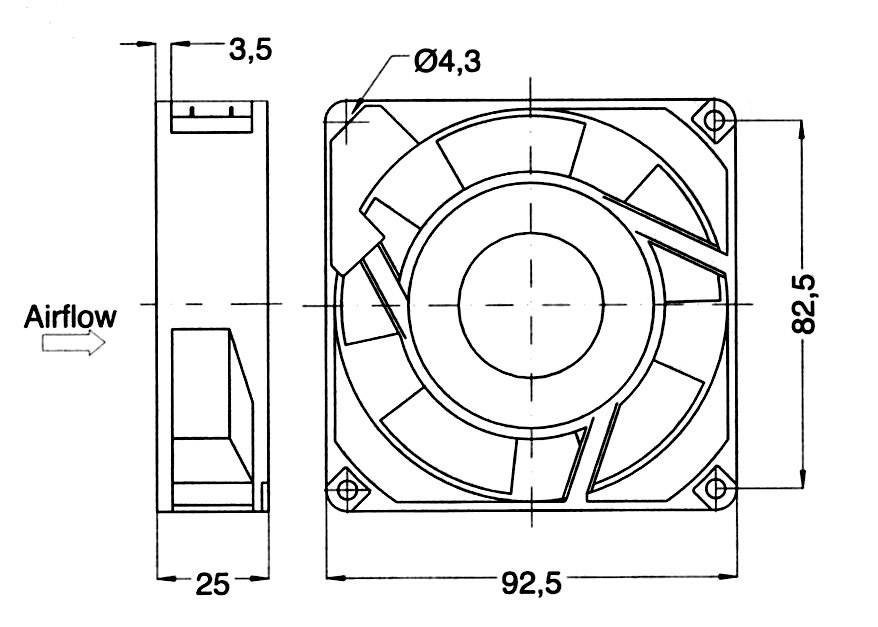

(L x W x H) 92 x 92 x 25 mm
13 W
- Output (max.) (details)
0.9 m3/min
- Max. noise generation
39 dBa
- Type
3610PS-23T-B30-A00
- Temperature range
-10 - +70 ºC °C
- Operating voltage
230 V AC
Documents & Downloads
Datasheet
Datasheet 189444 NMB Minebea 3610PS-23T-B30 Axial fan 230 V AC 54 m³/h (L x W x H) 92 x 92 x 25 mm
User & Safety Instructions
User & Safety Instructions 189444 NMB Minebea 3610PS-23T-B30 Axial fan 230 V AC 54 m³/h (L x W x H) 92 x 92 x 25 mm
Description
This ball bearing fans from NMB ® meets the highest quality standards. Direction of rotation of the rotor-side left , over bars blowing.
