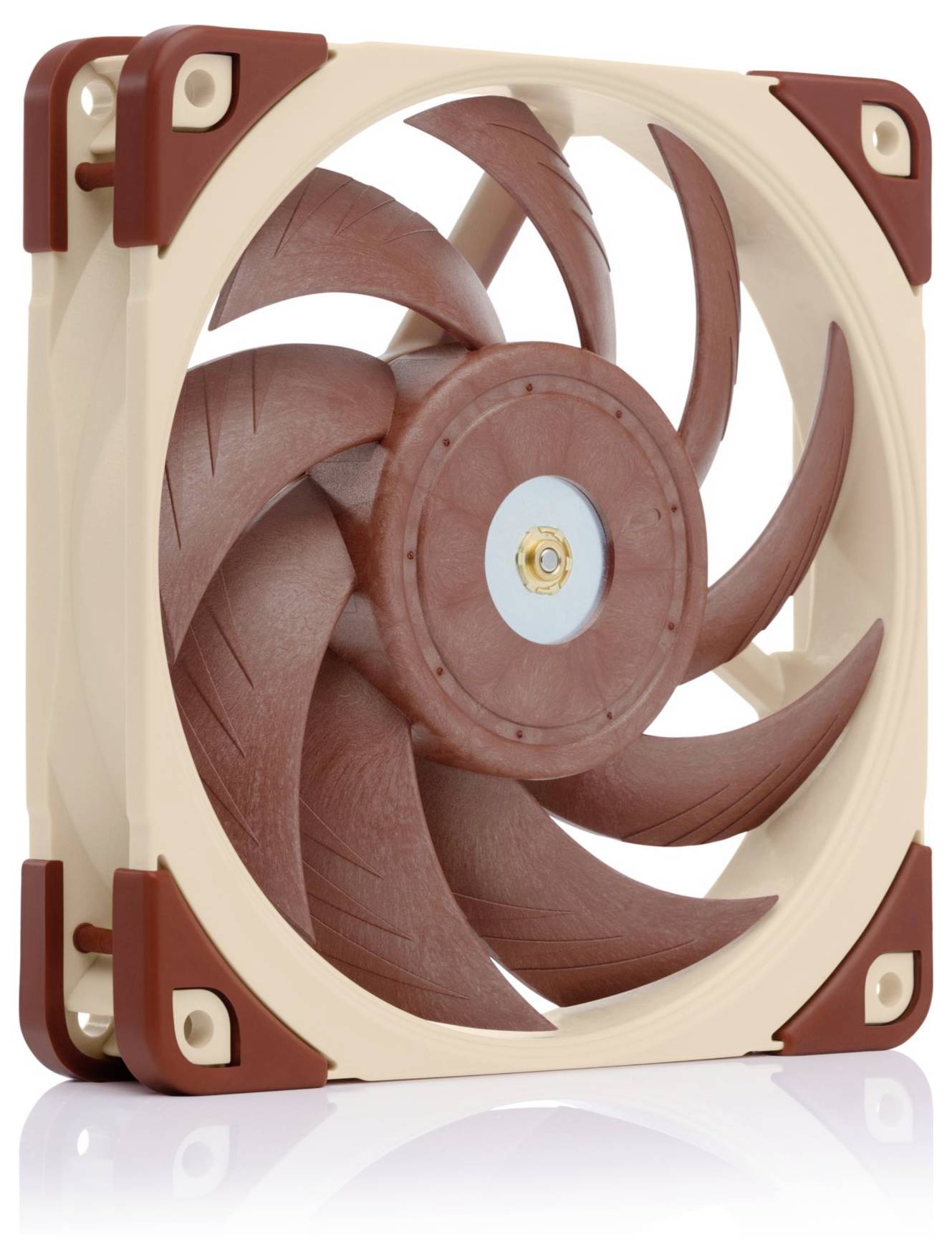

Noctua NF-A12X25 LS-PWM PC fan Beige, Brown (W x H x D) 120 x 120 x 25 mm
EAN:
Part number:
Item no:
Noctua NF-A12X25 LS-PWM PC fan
Highlights & Details
- Computer housing fan 12 cm 1200 RPM
- 12.1 dB 0.82 mmH2O Self-Stabilisation Oil-pressure Bearing (SSO)
- Beige, Brown
Technical specifications
- Type: Fan
- Product color: Beige, brown
- Material: Liquid crystal polymer (LCP)
- Fan diameter 12 cm
- Number of fans: 1 fans
- Number of fan blades: 9
- 4-pin fan connector
- Voltage: 12 V
- Current (maximum): 0.05 A.
- Width 120 mm
- Depth: 25 mm
- Height: 120 mm
- Recommended placement: Computer chassis
- Rotation speed (min.): 450 RPM
- Rotation speed (max.): 1200 RPM
- Noise level (high speed): 12.1 dB
- Minimum air pressure 0.41 mmH2O
- Maximum air pressure 0.82 mmH2O
- Storage type: Self-stabilization oil-pressure bearing (SSO)
- Supported processor slots: Not supported
- Compatible Processors: Not supported
- Air flow: 55.7 m³/h.
- Noise level (slow speed): 7.6 dB
- Screws included: Yes
- Cable length: 0.5 m
- Power supply 0.6 W
- Product type
PC fan
- Fan size
120 mm
- Noise emission (max.)
12.1 dB
- Noise emission
10.1 dB - 20 dB
- Rotational speed (min.)
450 U/min
- Air discharge
55.7 m³/h
- Rotational speed (max.)
1200 U/min
- Type of bearing
Fluid bearing
- Connection
4-pin
- Factory colour
Beige
Brown
- Weight
5
- Width
120 mm
- Height
120 mm
- Depth
25 mm
- Dim
(W x H x D) 120 x 120 x 25 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3222415 Noctua NF-A12X25 LS-PWM PC fan Beige, Brown (W x H x D) 120 x 120 x 25 mm
Description
With more than 100 recommendations and awards from international hardware websites and magazines, Noctua's flagship NF-A12x25 model has become an established reference for low-noise 120 mm premium fans. Innovative aerodynamic design measures as well as an unprecedented narrow tread gap of just 0.5mm made possible by the use of the new Sterrox® liquid crystal polymer ensure excellent results in all Anwendungsbereichen: – whether it is flow-oriented applications with low backpressure such as housing ventilation or pressure-oriented scenarios with Hohem air resistance such as the use on coolers and water cooling radiators. The 4-pin LS-PWM version is suitable for semi-passive systems and silent applications, thanks to PWM-support and especially low speed Ideal, which require an almost noiseless operation and PWM-based speed control. Its superior efficiency, forward-looking construction and uncompromising choice of materials make the NF-A12x25 a real premium product for the highest demands.
