Noctua NF-P12 redux 1300 PWM CPU cooler + fan Grey (W x H x D) 120 x 120 x 25 mm
EAN:
Part number:
Item no:
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.

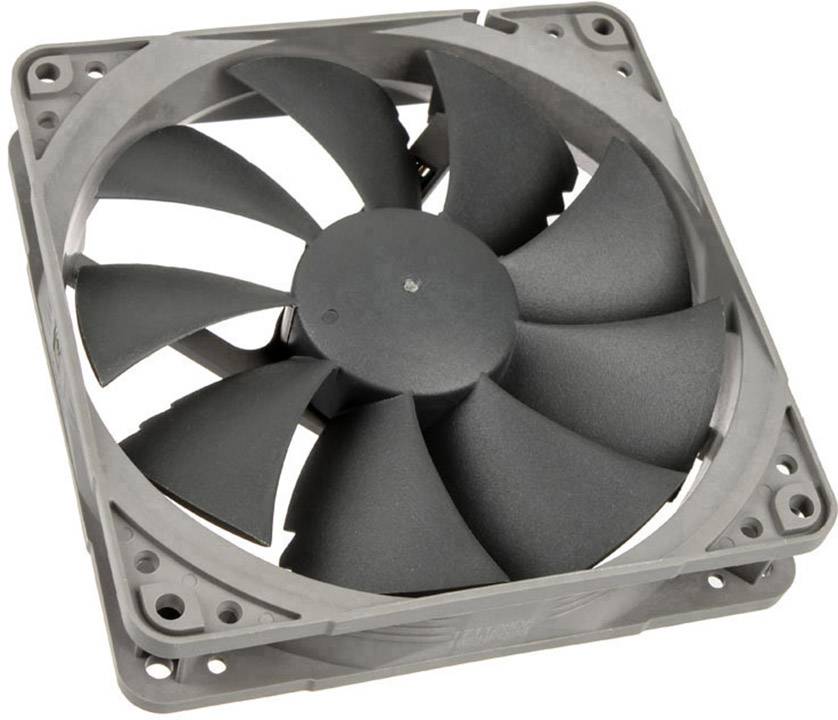

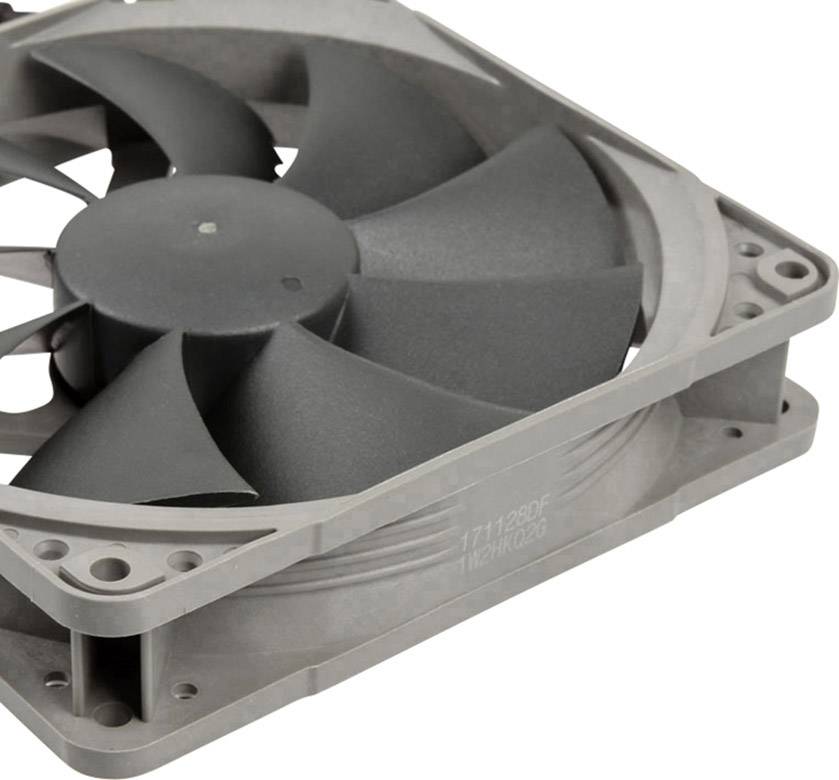

Noctua NF-P12 redux 1300 PWM CPU cooler + fan
Highlights & Details
- Economical & quiet 120 mm fan
- 4-pin PWM connector with 300 - 1,300 (rpm)
- Max. 92.3 m³/h & 19.8 dB(A)
Technical specifications
- Product type
CPU cooler + fan
- Fan size
120 mm
- Noise emission (max.)
19.8 dBa
- Noise emission
10.1 dBa - 20 dBa
- Rotational speed (min.)
300 U/min
- Air discharge
92.3 m³/h
- Rotational speed (max.)
1300 U/min
- Type of bearing
N/A
- Connection
4-pin PWM
- Factory colour
Grey
- Weight
5
- Width
120 mm
- Height
120 mm
- Depth
25 mm
- Dim
(W x H x D) 120 x 120 x 25 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2108185 Noctua NF-P12 redux 1300 PWM CPU cooler + fan Grey (W x H x D) 120 x 120 x 25 mm
Description
The classic NF-P12 120mm fan has been specially designed for applications such as CPU coolers that require high static pressure, and has not only been popular among international hardware enthusiasts for years – it has also contributed significantly to Noctua's reputation as a leading manufacturer of noise-optimized premium components. The new redux edition redefines this award-winning model in a price-accessible, slimmer design variant, which has been reduced to the essentials: The NF-P12 premium fan. With its renowned SSO warehouse and an MTTF value of over 150,000 hours, the NF-P12 redux is a recognized premium solution that offers proven Noctua quality at an attractive price. The 1300rpm PWM version is equipped with Noctuas specially designed NE-FD1 PWM IC for fully automatic speed control and is thus perfectly suitable for users, who want to achieve the appropriate ratio of high cooling power and best smooth running in every situation.
Tested NF-P12 design
Tens of thousands of silent enthusiasts around the world swear by Noctua's classic NF-P12. Its impressive smoothness, excellent performance and the proven Noctua quality make the NF-P12 a reference in the area of quiet 120mm fans.
Slim redux line
Within the scope of the redux product line, some of Noctua's most popular, award-winning products are being reissued in a slimmer, more affordable version. All models of the redux line are years of proven products that have contributed significantly to Noctua's reputation as a leading manufacturer of premium low-noise components.
Print-optimized 9-sheet geometry
The NF-P12 has been specially developed for pressure-sensitive applications such as CPU coolers, water cooling radiators or casings with narrow fan grillees and possesses a balance of excellent static pressure and excellent flow rate.
Vortex-Control Notches
Vortex-Control Notches columns Turbulance at the rear edge of the fan blades in several particle currents and distribute the noise emission of the fan over a wider frequency spectrum. This makes the running noise of the fan more pleasant for the human ear.
PWM IC WITH SCD
The fan supports fully automatic speed control via PWM and uses Noctua's specially designed NE-FD1 chip for this purpose. This new PWM IC integrates Noctuas Smooth Commutation Drive (SCD) technology, which minimizes PWM switching noise and makes the fan quieter at low speeds.
Smooth Commutation Drive 2
The latest, enhanced version of Noctuas SCD drive system guarantees excellent smoothness by eliminating torque fluctuations and switching noise. This makes the fan itself surprisingly quiet from close up.
SSO warehouse
Noctua's SSO bearing combines the proven concept of hydrodynamic bearing with an additional magnet that supports the self-stabilization of the rotor axis. Over the years, this technology has become synonymous with superb smoothness and excellent long-term stability.
Color-adjustable with NA-SAVP1 anti-vibration pads
The frame of the fan can be equipped with NA-SAVP1 anti-vibration pads from the Chromax product line. Available in black, red, blue, white, green and yellow, the pads not only dampen vibrations, but also allow the fan to be optically adapted to popular color schemes!
This text is machine translated.
Tested NF-P12 design
Tens of thousands of silent enthusiasts around the world swear by Noctua's classic NF-P12. Its impressive smoothness, excellent performance and the proven Noctua quality make the NF-P12 a reference in the area of quiet 120mm fans.
Slim redux line
Within the scope of the redux product line, some of Noctua's most popular, award-winning products are being reissued in a slimmer, more affordable version. All models of the redux line are years of proven products that have contributed significantly to Noctua's reputation as a leading manufacturer of premium low-noise components.
Print-optimized 9-sheet geometry
The NF-P12 has been specially developed for pressure-sensitive applications such as CPU coolers, water cooling radiators or casings with narrow fan grillees and possesses a balance of excellent static pressure and excellent flow rate.
Vortex-Control Notches
Vortex-Control Notches columns Turbulance at the rear edge of the fan blades in several particle currents and distribute the noise emission of the fan over a wider frequency spectrum. This makes the running noise of the fan more pleasant for the human ear.
PWM IC WITH SCD
The fan supports fully automatic speed control via PWM and uses Noctua's specially designed NE-FD1 chip for this purpose. This new PWM IC integrates Noctuas Smooth Commutation Drive (SCD) technology, which minimizes PWM switching noise and makes the fan quieter at low speeds.
Smooth Commutation Drive 2
The latest, enhanced version of Noctuas SCD drive system guarantees excellent smoothness by eliminating torque fluctuations and switching noise. This makes the fan itself surprisingly quiet from close up.
SSO warehouse
Noctua's SSO bearing combines the proven concept of hydrodynamic bearing with an additional magnet that supports the self-stabilization of the rotor axis. Over the years, this technology has become synonymous with superb smoothness and excellent long-term stability.
Color-adjustable with NA-SAVP1 anti-vibration pads
The frame of the fan can be equipped with NA-SAVP1 anti-vibration pads from the Chromax product line. Available in black, red, blue, white, green and yellow, the pads not only dampen vibrations, but also allow the fan to be optically adapted to popular color schemes!
This text is machine translated.
Scope of delivery
- Fan screws
