Name: Noctua NH-D12L CHROMAX.BLACK CPU cooler + fan Intel® 1200, Intel® 1700, #####Intel® 1851, Intel® 1150, Intel® 1151, Inte
Brand: Noctua
SKU: 3395846

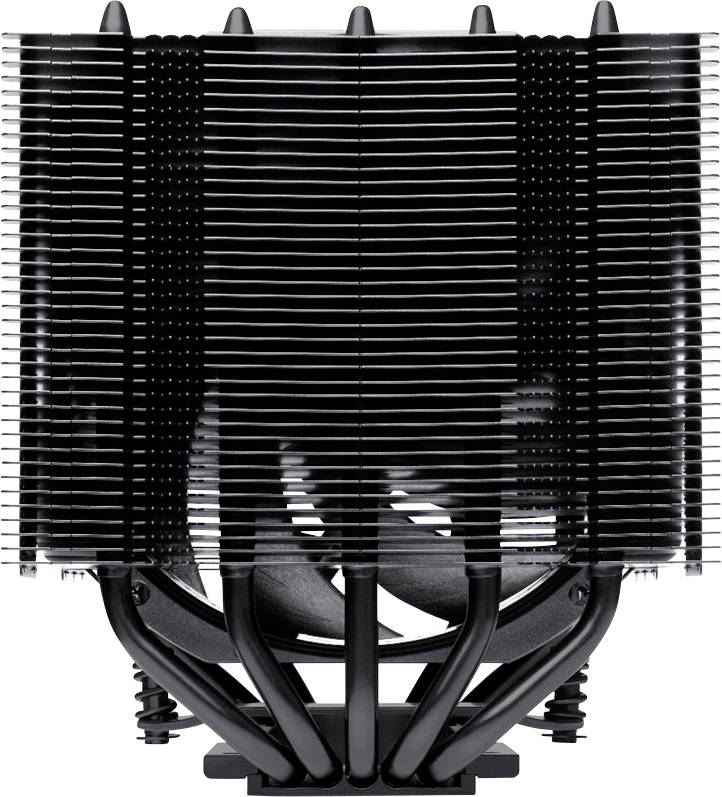

A black CPU cooler with multiple fins and heatpipes, shown from the front.

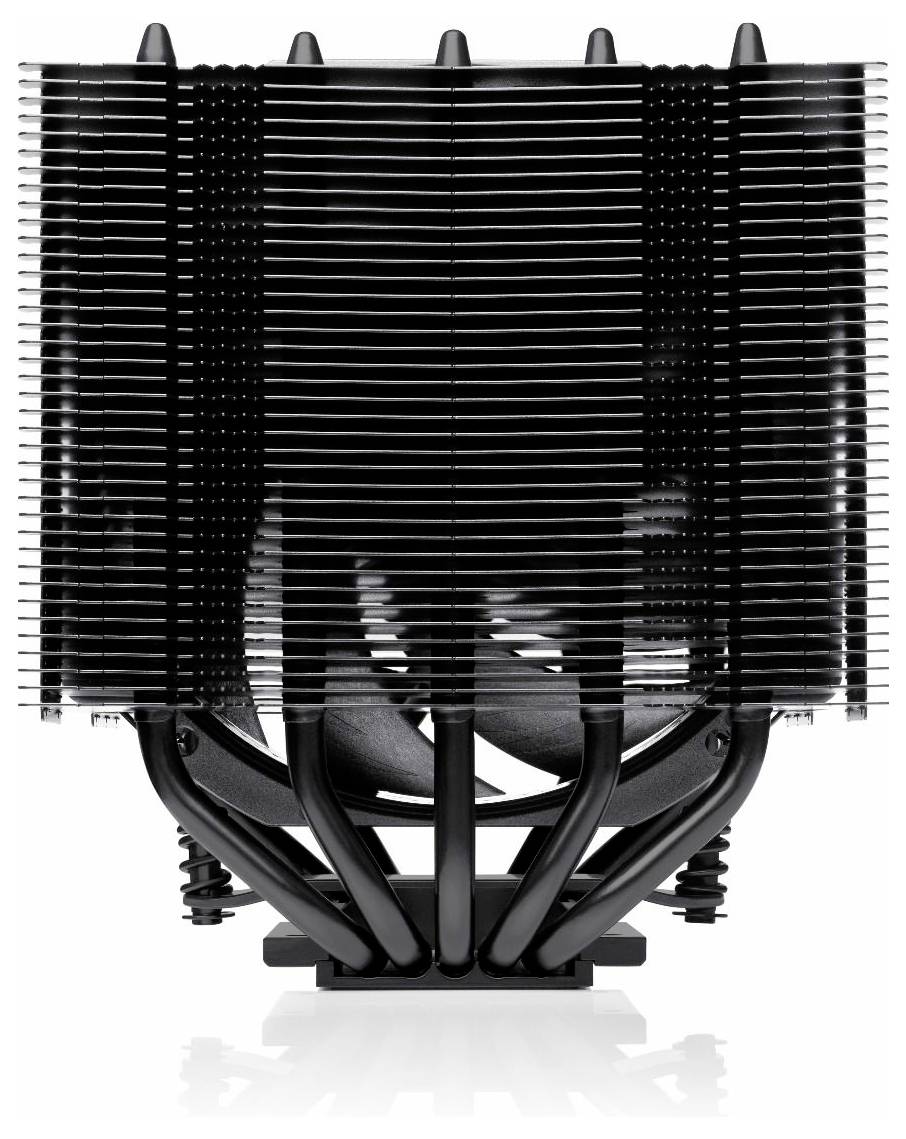

Black CPU cooler with multiple aluminium fins and heatpipes. Designed for powerful, efficient air cooling in computers.

PC Fan: Black dual-tower design, symmetrical fin structure. Cooling fins to the left and right of vertical heat pipes.

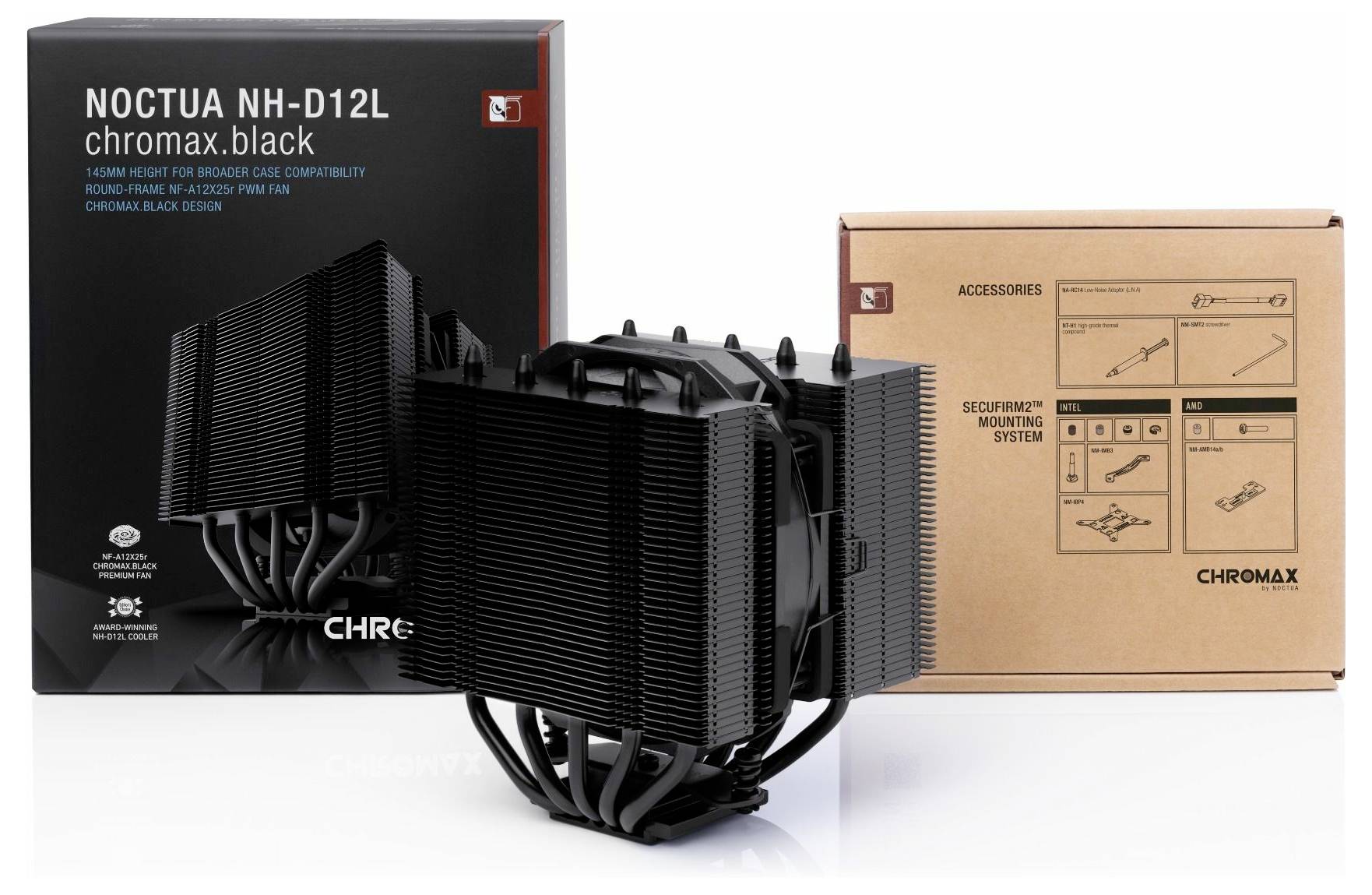

Noctua NH-D12L chromax.black CPU cooler before packaging. Included accessories shown on the packaging side.

A black computer with illuminated internals, featuring a GeForce RTX graphics card. Modern design with clean lines.

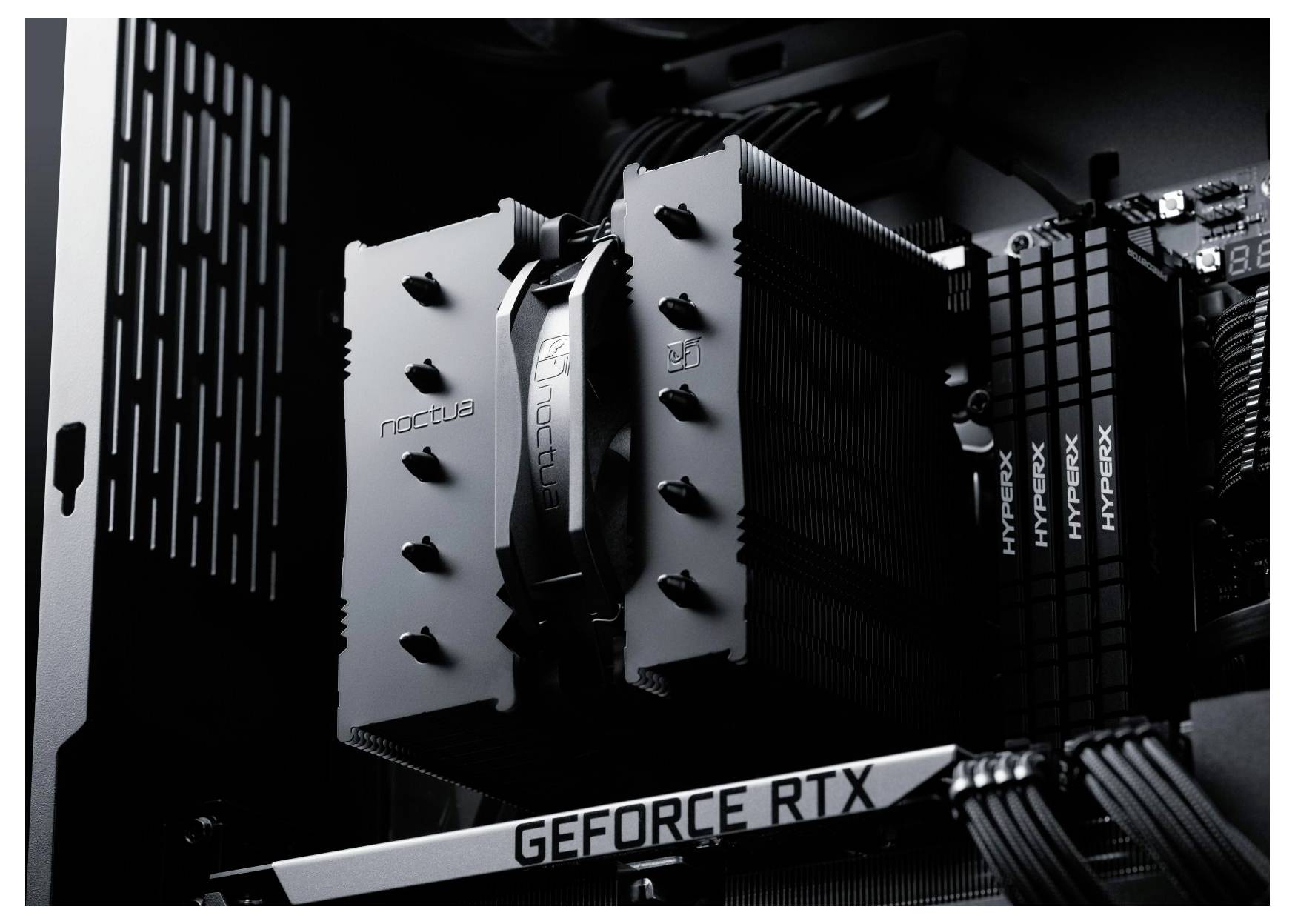

'Close-up of a computer interior with a large Noctua cooler and GEFORCE RTX graphics card, surrounded by HyperX RAM modules.'

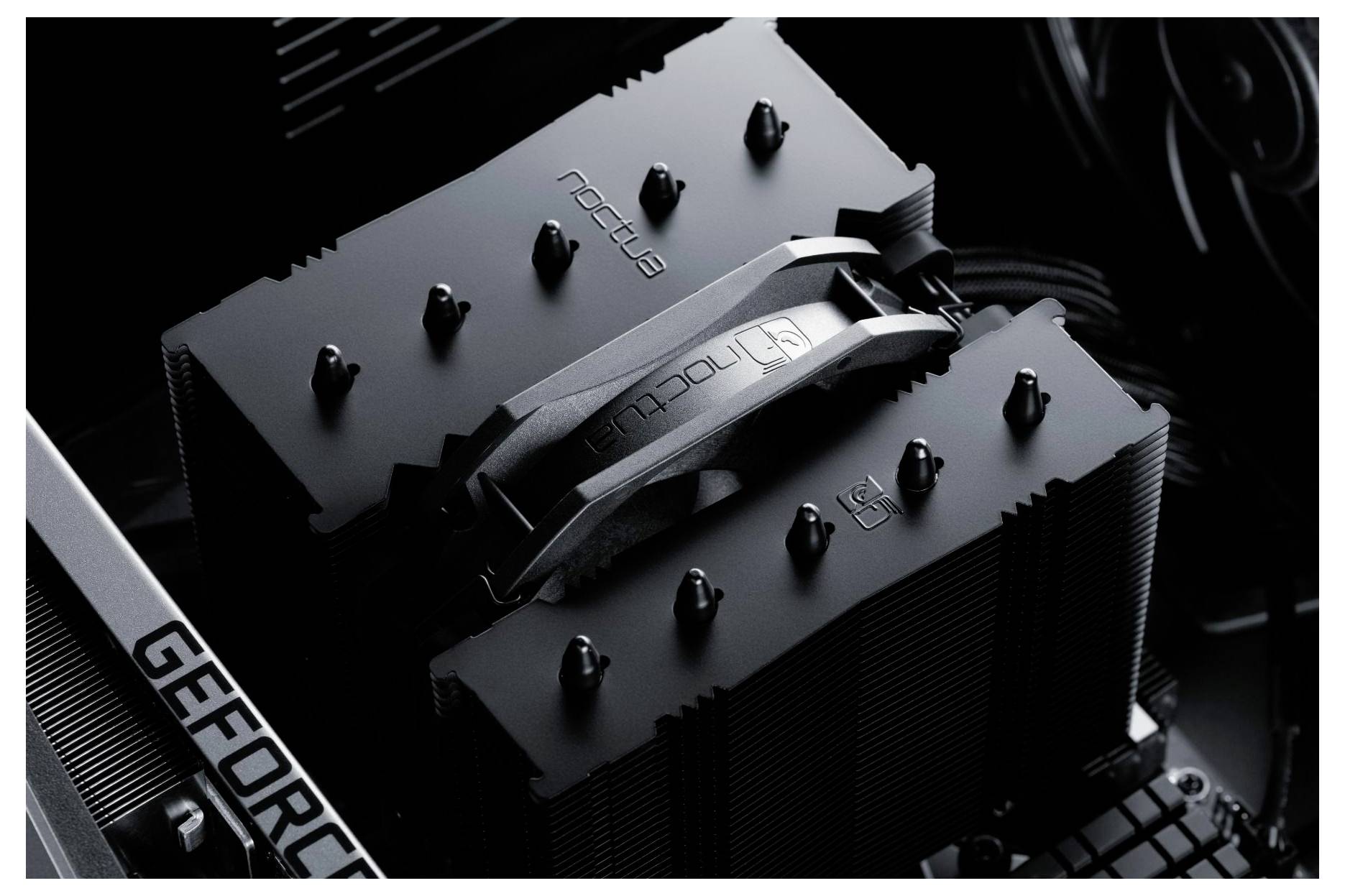

Black CPU cooler in a computer case, with the 'Geforce' lettering on an adjacent component.

Black CPU cooler with multiple fins and heat pipes, freestanding, for cooling in computers.

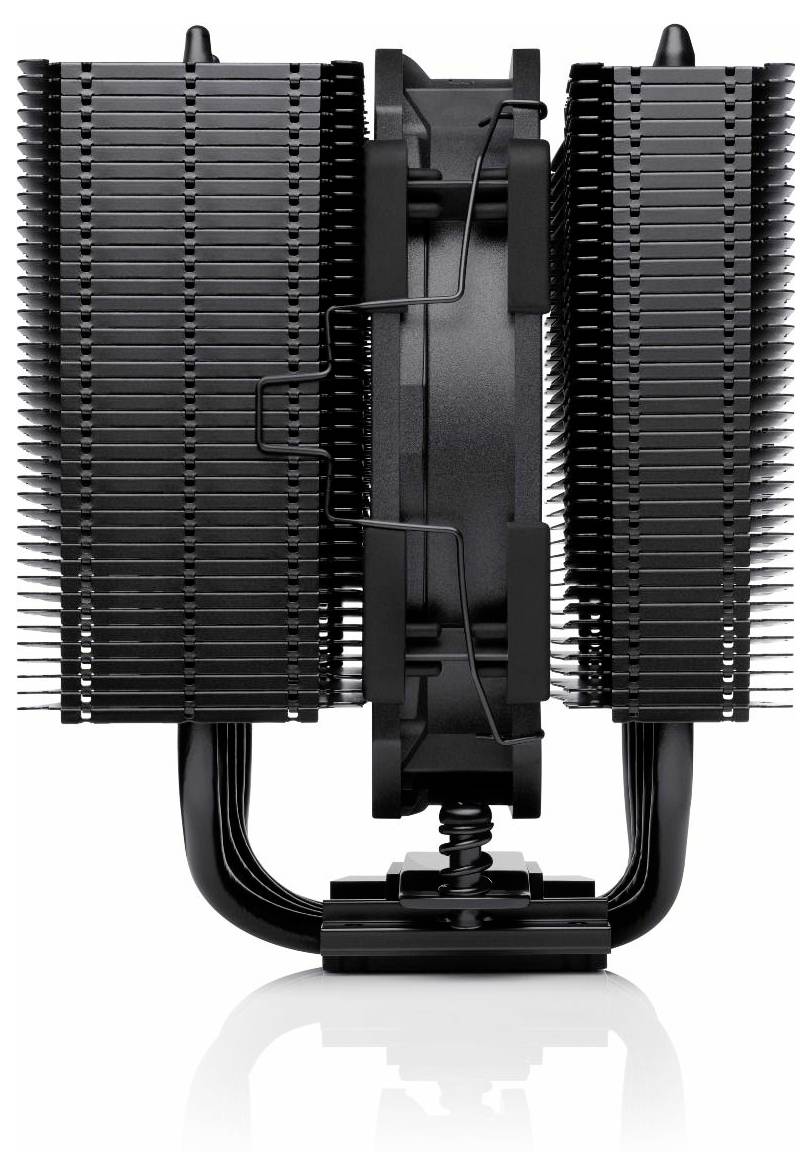

A black computer processor cooler with two heatsinks and heat pipes dissipating heat, placed on a white surface.

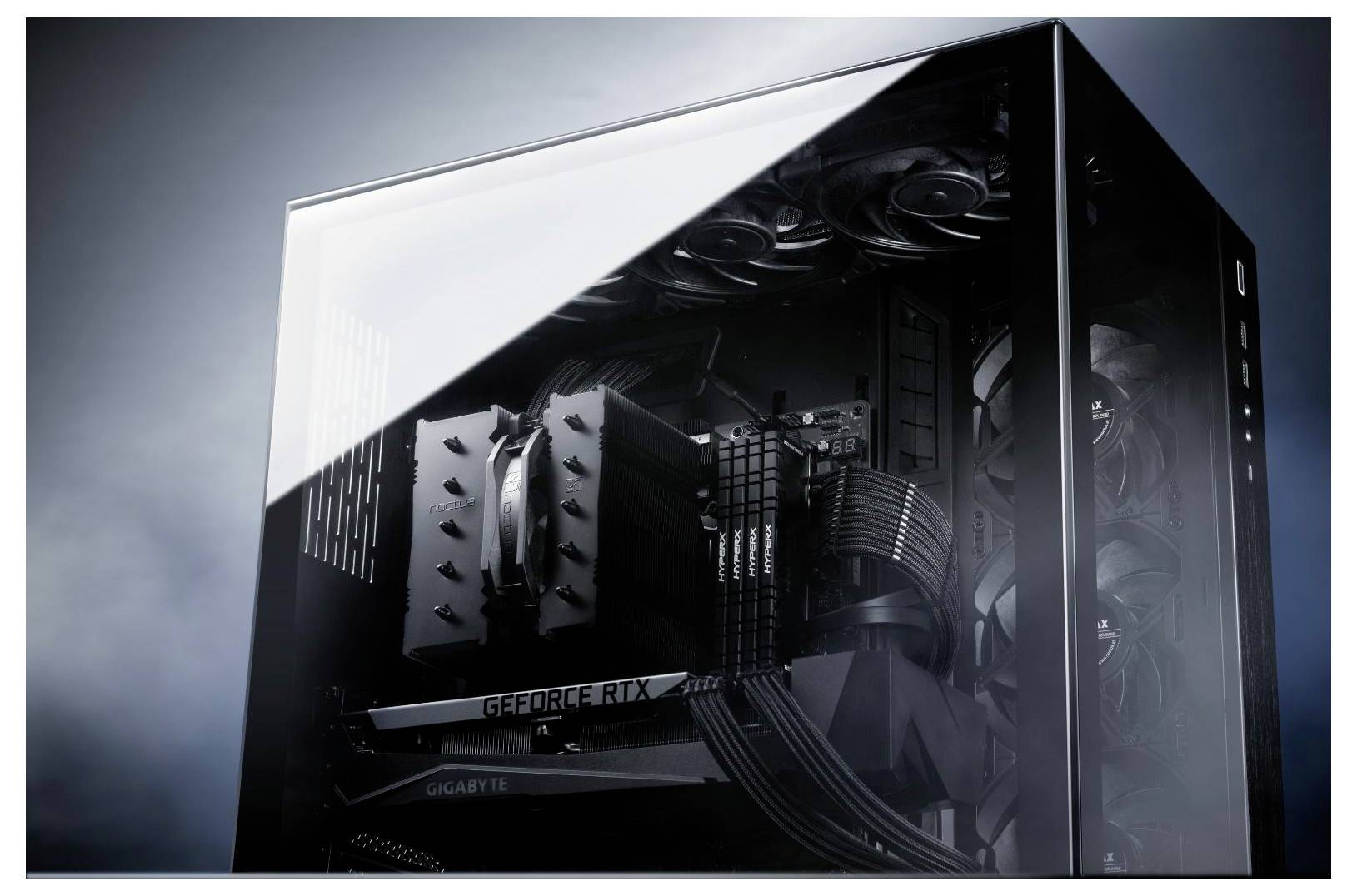

A modern computer with a transparent case reveals the internal hardware, including graphics card and fans.

1/10

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour, black
Heat sink dimensions 145 mm x 125 mm x 113 mm
Number of fans: 1
Nominal voltage: 12 V
Power consumption 1.68 W
Features: 5 heat pipes, PWM-support (pulse-width modulation)
MTBF: 150.000 hour(s)

Product type: CPU cooler + fan

: Intel® 1200
Intel® 1700
#####Intel® 1851
Intel® 1150
Intel® 1151
Intel® 1155
Intel® 1156
AMD AM4
#####AMD AM5

Noise emission (max.): 22.6 dBa

Rotational speed (min.): 450 U/min

Rotational speed (max.): 2000 U/min

Air discharge: 102.1 m³/h

Type of bearing: SSO2 bearing

Heatsink material: Aluminium

Weight: 890 g

Features: Heat pipe
incl. thermally conductive paste

Width: 12.5 cm

Height: 14.5 cm

Depth: 11.3 cm

Noise emission: 20.1 dBa - 30 dBa

Fan dimensions: 120 x 120 mm

Factory colour: Aluminium
Black

Material: Aluminium
Copper
Nickel

Type: Air cooling

UKCA: yes

Noise level (low speed): 18.8 dB

Fan speed (max): 200 RPM

Fan speed (min): 450 RPM

Quantity per pack: 1 Stück(e)

Mean time between failures (MTBF): 150000 h

Maximum airflow: 84.5 cfm
