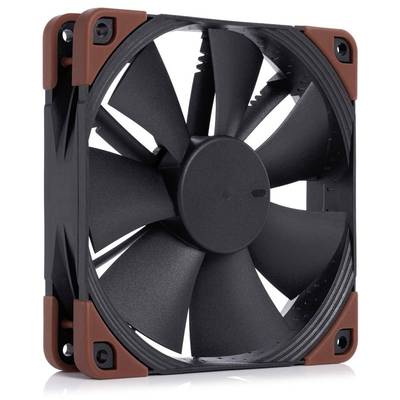

Noctua Noctua NF-F12 industrialPPC-24V-3000 SP IP67 PWM - 120mm PC fan Black (W x H x D) 120 x 120 x 25 mm
EAN:
Part number:
Item no:
Number
Total (€ 35.29 / piece)
€ 35.29
plus VAT.
Highlights & Details
Noctua Noctua NF-F12 industrialPPC-24V-3000 SP IP67 PWM - 120mm PC fan
- 120 mm large PWM fan 24 V operating voltage Water/dust protection (IP67) Max. 186.7 m³/h (3,000 rpm) Single-phase drive motor
Technical specifications
- Dimensions: 120 x 120 x 25 mm (W x H x D)Material: plasticColour: Black/brownSpeed 750 - 3,000 rpm (+/- 20%)Airflow max. 186.7 m³/hStatic pressure: Max. 7.63 mmH2OVolume: Max. 43.5 dB(A)Voltage 24 VConsumption: Max. 4.32 W.4 pin PWM connectionLifetime 150,000 h (MTBF)Delivery scopeFan4x fan screws
- Product type
PC fan
- Fan size
120 mm
- Noise emission (max.)
43.5 dBa
- Noise emission
40.1 dBa - 50 dBa
- Rotational speed (min.)
750 U/min
- Air discharge
186.7 m³/h
- Rotational speed (max.)
3000 U/min
- Connection
4-pin PWM
- Factory colour
Black
- Weight
272 g
- Width
120 mm
- Height
120 mm
- Depth
25 mm
- Dim
(W x H x D) 120 x 120 x 25 mm
- Content
1 pc(s)
Description
120 mm large PWM fan 24 V operating voltage Water/dust protection (IP67) Max. 186.7 m³/h (3,000 rpm) Single-phase drive motor
